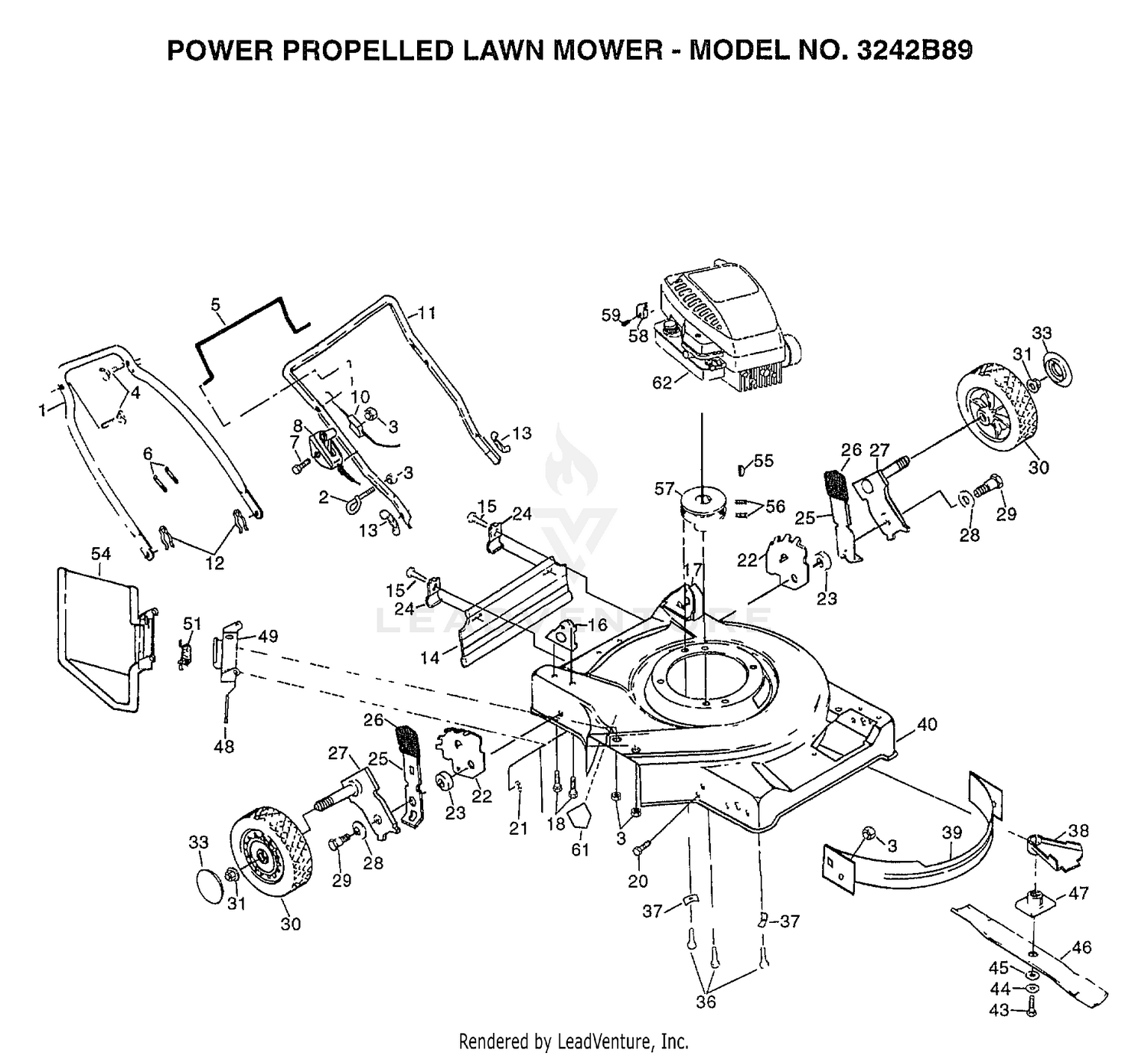

| Ref | Part Number | Description |
|---|
| 1 |
157081X479 |
HANDLE LOWER Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
132001 |
ROPE GUIDE Price: Call Us |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 3 |
63601 |
SUB= 73800400 Price: Call Us |
| 4 |
131959 |
BOLT.HANDLE.LM Price: Call Us |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
145793 |
BAIL.CNTRL.STD.BL Price: Call Us |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
664-26 |
SUB= 7192J Price: Call Us |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
700644 |
CONTROL.THL.49.35 Price: Call Us |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 11 |
145645X479 |
SUB= 165452X479 Price: Call Us |
| 12 |
51793 |
HAIRPIN COTTER Price: Call Us |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
140540 |
SKIRT.REAR.FGD.22 Price: Call Us |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 15 |
750097 |
TAPPING SCREW Price: Call Us |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 16 |
151665X479 |
HDLE BRKT ASSY.RH Price: Call Us |
| 17 |
151667X479 |
HDLE BRKT ASSY LH Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
149741 |
SCREW 5/16-18X3/4 Price: Call Us |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
74100412 |
SCREW Price: Call Us |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 21 |
751592 |
LOCKNUT PM Price: Call Us |
| 22 |
700325X007 |
BRACKET.ADJ.9POS. Price: Call Us |
| 23 |
146630 |
SPACER.HEIGHT.ADJ Price: Call Us |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 25 |
700331X004 |
SPRING SELECTOR Price: Call Us |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 26 |
87877 |
KNOB PM Price: Call Us |
| 27 |
145935X004 |
ARM.AXLE.ASM.BZP. Price: Call Us |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
142748 |
BOLT SHLD 3/8-16 Price: Call Us |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
146247 |
WHEEL.8X2.PR.RAD. Price: Call Us |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 31 |
83923 |
HEX FLANGE LOCKNT Price: Call Us |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
77400 |
HUB CAP Price: Call Us |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
150406 |
BOLT.ENG.3/8-16 Price: Call Us |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 37 |
851201X004 |
WASHER Price: Call Us |
| 38 |
134612 |
SUB= 48283 Price: Call Us |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
132352X479 |
BAFFLE FRONT 22SD Price: Call Us |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
152712 |
MOWER HSG KIT Price: Call Us |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 43 |
851084 |
SCREW Price: Call Us |
| 44 |
850263 |
LOCKWASHER Price: Call Us |
| 47 |
851514 |
ADAPTOR.BLADE.LM Price: Call Us |
| 48 |
147286 |
ROD.HINGE.COMBI-C Price: Call Us |
| 49 |
147775 |
BRACKET.HINGE.W/F Price: Call Us |
| 54 |
851750 |
SUB= 532851750 Price: Call Us |
| 55 |
87677 |
HI PRO KEY PM Price: Call Us |
| 56 |
59708 |
SCREW Price: Call Us |
| 57 |
84596 |
ENGINE.PULLEY.FWG Price: Call Us |
| 58 |
111190X |
CABLE CLAMP Price: Call Us |
| 59 |
83816 |
SCREW PM Price: Call Us |
| 61 |
85463 |
DECAL-DANGER PM Price: Call Us |
| 83976X479 |
"BAFFLE,REAR" |
Price: Call Us 83976X479 |
