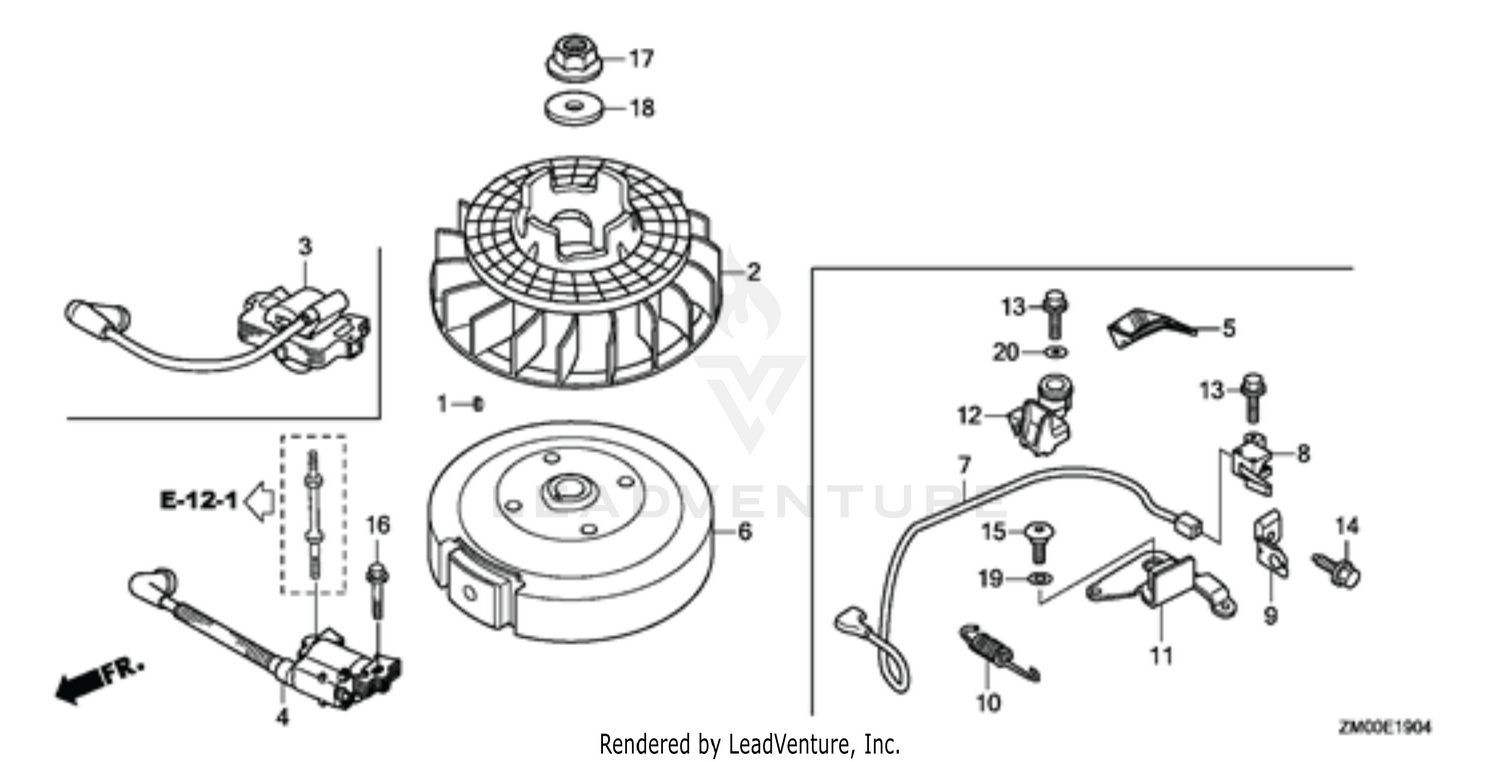

Flywheel
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13331-357-000 | FLYWHEEL KEY Price: $5.41 |
| 2 | 19511-Z8B-900 | COOLING FAN Price: $8.97 |
| 3 | 30500-ZL8-014 | IGNITION COIL ASSEMBLY This part replaces 30500-Z8B-901. Price: $100.54 |
| 5 | 30549-Z8B-900 | WIRE CLAMP Price: $7.61 |
| 6 | 31110-Z0Y-003 | FLYWHEEL Price: $40.86 |
| 7 | 32195-Z8B-901 | STOP SWITCH WIRE Price: $5.60 |
| 8 | 35120-Z8B-902 | SWITCH ASSY., ENGINE STOP Price: $5.53 |
| 9 | 43416-Z8B-900 | BRAKE CABLE BRACKET Price: $13.95 |
| 10 | 75113-Z8B-900 | BRAKE LEVER SPRING Price: $14.61 |
| 11 | 75120-Z8B-901 | BRAKE ARM Price: $102.22 |
| 12 | 75573-Z8B-901 | TENSIONER SPRING Price: $7.61 |
| 13 | 90001-Z8B-900 | SPECIAL BOLT (5x16) Price: $1.60 |
| 14 | 90007-Z8B-900 | FLANGE BOLT (6x14) Price: $0.71 |
| 15 | 90009-Z8B-900 | SPECIAL BOLT Price: $0.94 |
| 16 | 90018-ZE1-000 | FLANGE BOLT Not Available Price: |
| 17 | 90201-Z0T-800 | NUT-SPECIAL Price: $3.28 |
| 18 | 90401-Z8B-900 | WASHER 14x45 Price: $11.89 |
| 19 | 90402-Z8B-900 | SPECIAL WASHER Price: $0.94 |
