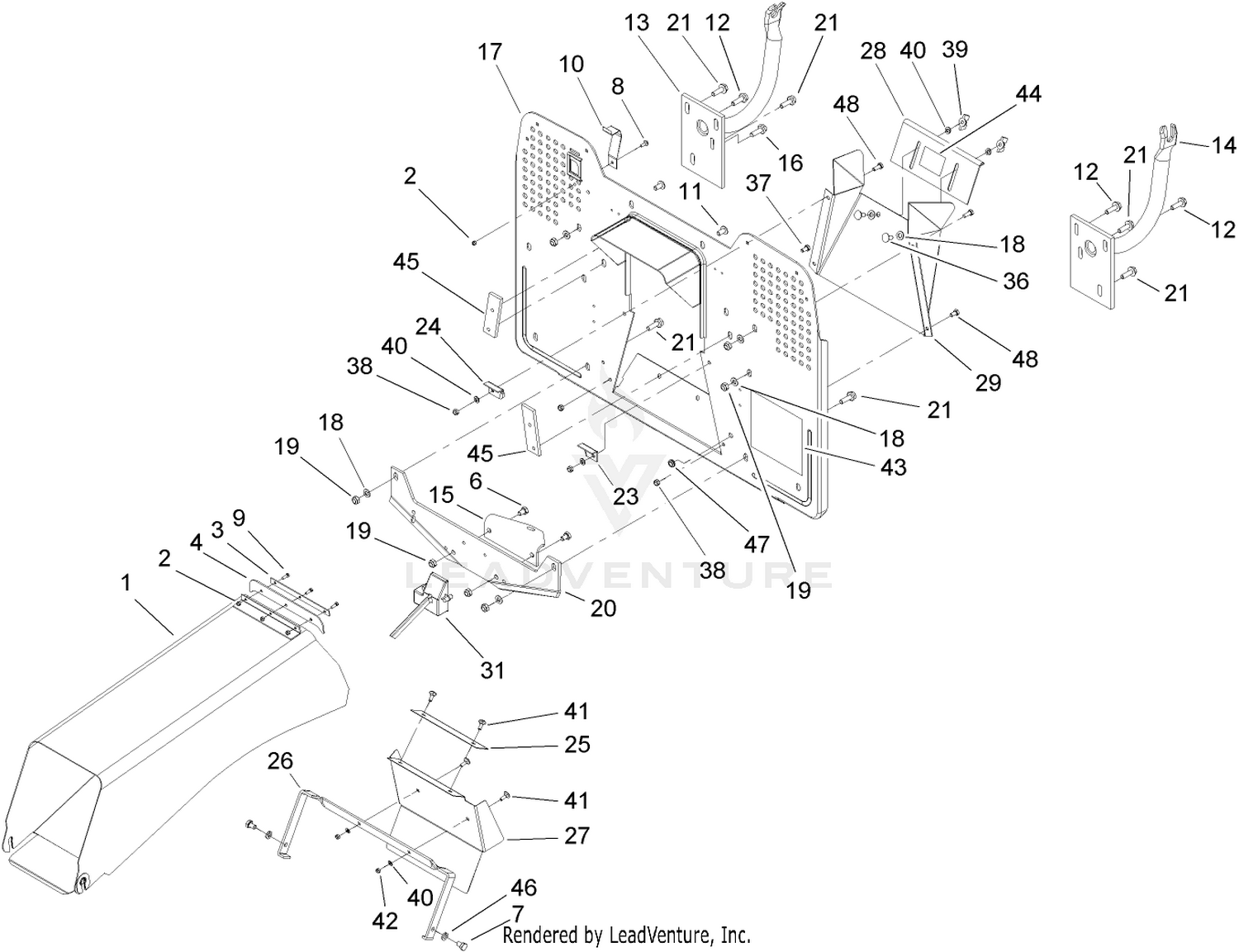

Collector Assembly

Collector Assembly

Parts (40)

RefPart NumberDescription
1 106-8562 Tunnel Price: Call Us
2 104-2985 NUT-HEX Price: Call Us
3 104-3055 PLATE-SUPPORT Price: Call Us
4 104-3056 SEAL-RUBBER Price: Call Us
6 33114-020 SCREW-HH Price: $0.28
7 68-9410 SCREW-HHF Price: $7.99
8 104-2983 SCREW Price: Call Us
9 104-3058 SCREW-SFH Price: Call Us
10 104-3059 COVER-SWITCH Price: Call Us
11 104-3060 BOLT-CARRIAGE Price: Call Us
12 104-3061 SCREW Price: Call Us
13 104-3062 SUPPORT-COLLECTOR, RIGHT Price: Call Us
14 104-3063 SUPPORT-COLLECTOR, LEFT Price: Call Us
15 104-3064 HITCH-TOW Price: Call Us
16 104-3065 SCREW-HEX Price: Call Us
17 104-3066 COLLECTOR PLATE ASM Price: Call Us
18 33095-00 WASHER-FLAT Price: $0.25
19 33024-00 NUT-LOCK, NI Price: $0.75
20 104-3067 SUPPORT-HITCH, TOW Price: Call Us
21 104-3068 SCREW-HEX Price: Call Us
23 106-8597 Support-Tunnel, Left Price: Call Us
24 106-8598 Support-Tunnel, Right Price: Call Us
25 106-8599 Shield-Rubber Price: Call Us
26 104-3069 BRACKET-SHIELD, PROTECTIVE Price: Call Us
27 104-3070 SHIELD-PROTECTIVE Price: Call Us
28 104-3336 Shield-Adjustable Price: Call Us
29 104-3335 DISCONTINUED Price: Call Us
31 104-3074 OVERLOAD SWITCH ASM Price: Call Us
36 104-2961 SCREW Price: Call Us
37 33113-012 SCREW-HH Price: $0.71
38 33023-00 NUT-LOCK Price: $0.25
39 32103-28 NUT-WING Price: $3.94
40 33093-00 WASHER-FLAT Price: $0.70
41 104-2948 BOLT-CARRIAGE Price: Call Us
42 87-5140 NUT-LOCK Price: $0.25
43 104-3243 DECAL-BYPASS, HYDRO Price: Call Us
44 104-2853 DECAL-POSITION, BAGGING Price: Call Us
45 104-3347 Plate-Reinforcing Price: Call Us
46 104-3348 USE 104-2927 Price: Call Us
47 106-5772 DISCONTINUED Price: Call Us
