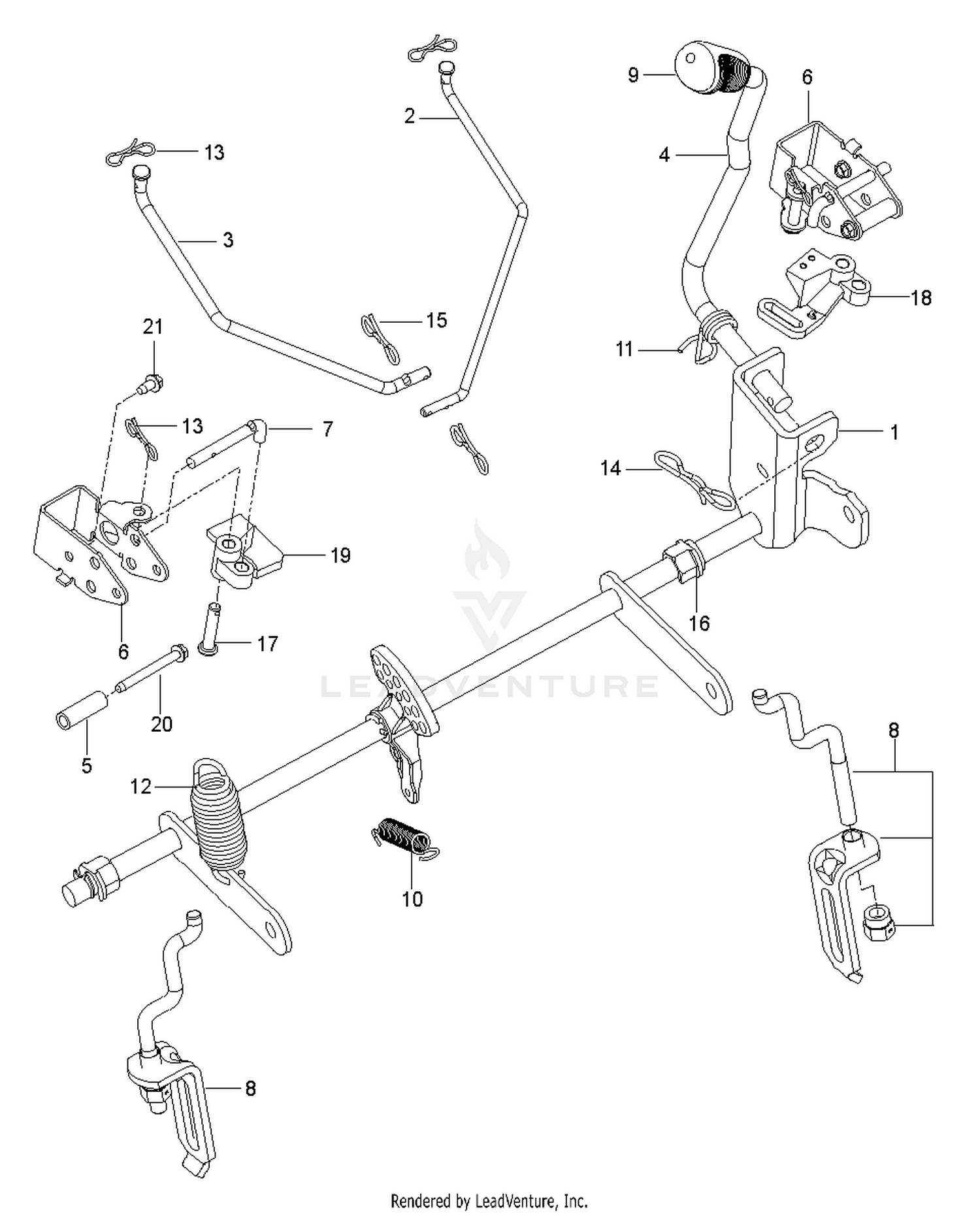

| Ref | Part Number | Description |
|---|
| 1 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
586457101 |
LINK.BRAKE.PARK.UPPER.LH Price: $8.99 |
| 3 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
586457201 |
LINK.BRAKE.PARK.UPPER.RH Price: $8.99 |
| 4 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 4 |
587622901 |
LIFT.LEVER.ASM.RZ.SERVICE Price: $11.99 |
| 5 |
580486102 |
Spacers This part replaces 580486101. Price: $3.99 |
| 5 |
92-7498 |
TUBE ASSY-STEERING,FRT,RH Price: $117.13 |
| 6 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 6 |
585682102 |
BRACKET.BELLCRANK.PBRAKE X431 Price: $6.99 |
| 7 |
585682001 |
ROD.PUSH.BRAKE Price: $2.99 |
| 7 |
92-7499 |
DISCONTINUED Price: Call Us |
| 8 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE Price: $9.99 |
| 8 |
92-7497 |
TUBE ASSY-STEERING,FRT,LH Price: $120.49 |
| 9 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 532445060. Price: $7.99 |
| 9 |
92-7544 |
STEERING VALVE ASSY-4PORT Price: $1,202.49 |
| 10 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 10 |
547190203 |
BRAKE SPRING This part replaces 586867601. Price: $2.99 |
| 11 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 12 |
21-9260 |
COVER-DUST Price: $8.19 |
| 12 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 13 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 13 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 14 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 14 |
68-5140 |
CAP-WHEEL, STEERING Price: $15.13 |
| 15 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 15 |
68-5370 |
DECAL Price: $6.21 |
| 16 |
32144-21 |
SCREW Price: $0.20 |
| 16 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 17 |
3220-6 |
NUT-JAM Price: $1.25 |
| 17 |
585701401 |
PIN.5.16X1.5 Price: $2.99 |
| 18 |
105-3306 |
SPEEDOMETER KIT, RM6000 SERIES This part replaces 93-4213. Price: $424.47 |
| 18 |
586457401 |
BELLCRANK.LH Price: $5.99 |
| 19 |
586457501 |
BELLCRANK.RH Price: $5.99 |
| 19 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 19 |
93-7554 |
DISCONTINUED Price: Call Us |
| 20 |
586561301 |
SCREW THD;ROLL;1/4-20 X 2.25 Price: $12.99 |
| 20 |
93-7998-03 |
PLATE-INSTRUMENT This part replaces 93-7998. Price: $40.21 |
| 21 |
218-536 |
WASHER-LOCK Price: $1.09 |
| 21 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 22 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 23 |
218-533 |
LENS Price: $17.62 |
| 24 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 25 |
93-7480 |
LED-MINIATURE Price: $78.50 |
| 26 |
87-6620 |
SCREW Price: $1.29 |
| 27 |
233-17 |
KNOB Price: $10.58 |
| 28 |
218-535 |
NUT-HEX Price: $0.34 |
| 29 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 30 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 33 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 34 |
237-22 |
O-RING Price: $2.43 |
| 35 |
94-1447 |
STEERING RETURN TUBE ASM Price: $79.79 |
| 36 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 37 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
92-7495 |
STEERING TUBE ASM Price: $148.27 |
| 40 |
340-117 |
CAP Price: $10.30 |
| 41 |
92-7622 |
DISCONTINUED Price: Call Us |
| 42 |
92-7494 |
REAR STEARING TUBE ASM Price: $150.03 |
| 43 |
92-7606-03 |
BRACKET-BULKHEAD This part replaces 92-7606. Price: $13.64 |
| 44 |
92-7496 |
TUBE ASSY-STEERING,FRT,RH Price: $82.04 |
| 45 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 47 |
75-1490 |
ROD-BRAKE, PARKING Price: $50.23 |
| 48 |
237-42 |
O-RING Price: $2.78 |
| 50 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 51 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 52 |
3219-14 |
NUT-HEX Price: $0.25 |
| 53 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 54 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
