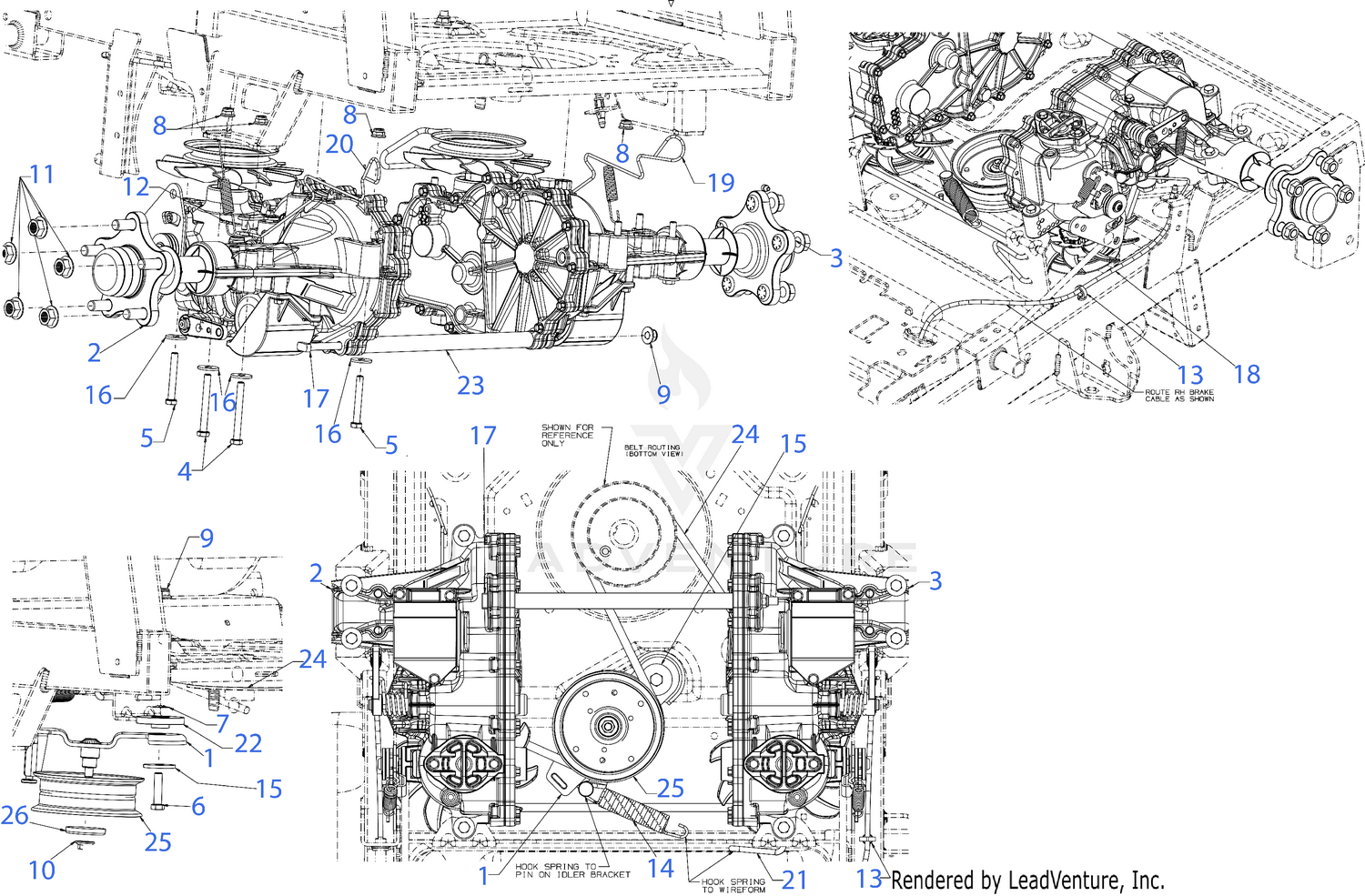

| Ref | Part Number | Description |
|---|
| 1 |
603P06820 |
DRIVE IDLER BRACKET Price: $59.39 |
| 4 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 5 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 6 |
710-0520 |
SCREW 3/8-16 x 1.50 Price: $3.93 |
| 7 |
712-0229 |
PUSH NUT Price: $3.14 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04065 |
NUT Price: $3.68 |
| 10 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 11 |
712-05381 |
HEX FLANGE NUT 1/2-20 GR8 Price: $3.04 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
726-3055 |
CABLE RETAINER CLIP Price: $6.06 |
| 14 |
732-07926A |
EXTENSION SPRING .925 x 5.37 Price: $9.13 |
| 15 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 16 |
736-04117 |
FLAT WASHER 1.0 OD:.331 ID Price: $2.85 |
| 17 |
738-05554A |
SUPPORT TUBE ROD Price: $11.73 |
| 18 |
746P06351 |
PARK BRAKE CABLE Price: $41.11 |
| 19 |
747-07690A |
HYDRO BYPASS ROD (RH) Price: $12.54 |
| 20 |
747-08130A |
HYDRO BYPASS ROD (LH) Price: $12.54 |
| 21 |
747-09490 |
IDLER SPRING HOOK Price: $7.61 |
| 22 |
748-06624 |
SHOULDER SPACER Price: $8.60 |
| 23 |
750-07350 |
SUPPORT TUBE Price: $21.16 |
| 24 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
| 25 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
