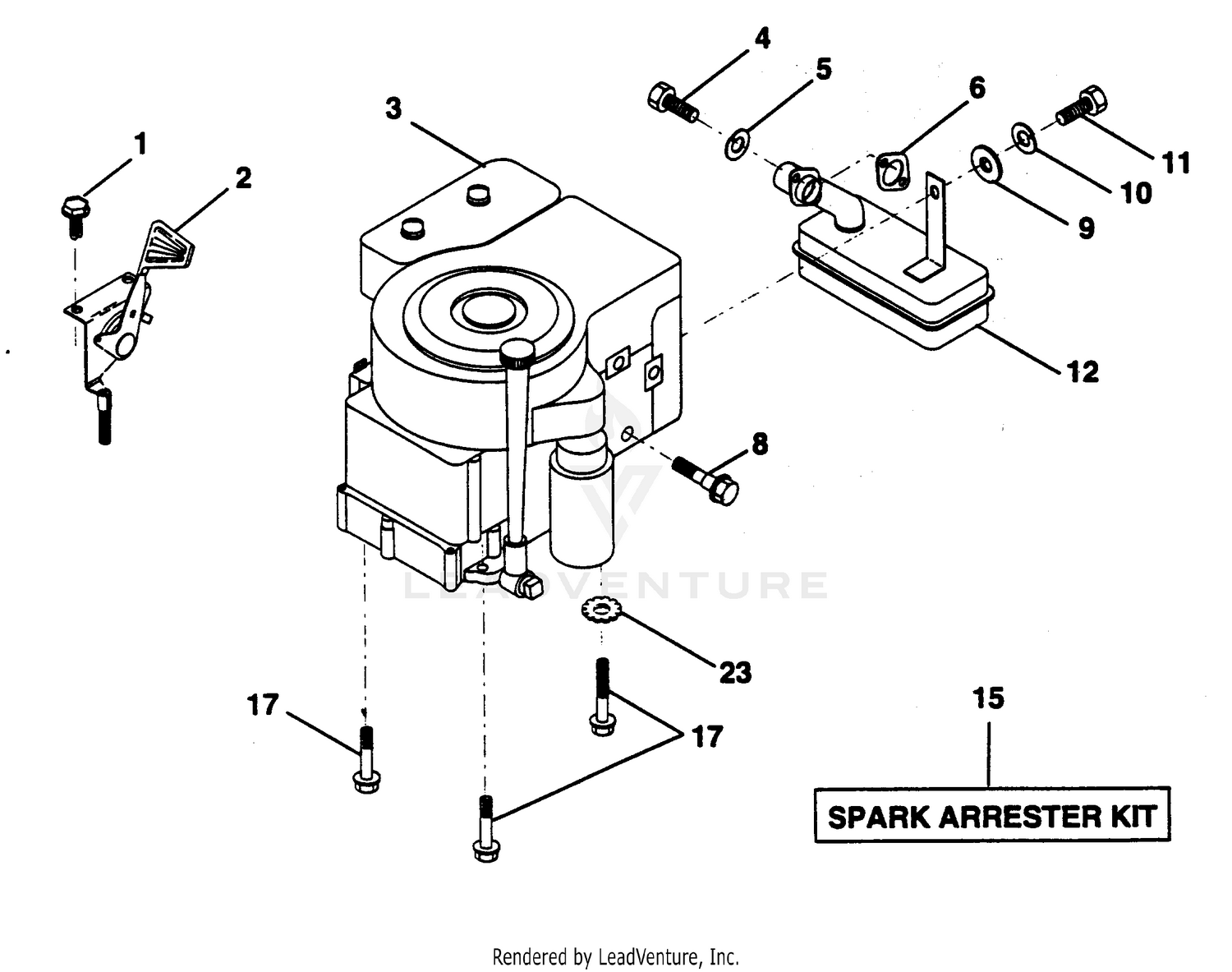

| Ref | Part Number | Description |
|---|
| 1 |
817060408 |
Screw, Hex Thd. Cut 1/4-20 x 1/2 (AYP part number) Price: $3.99 |
| 1 |
ZNK1L000U |
HEX.DOME NUT M12 Price: $1.88 |
| 2 |
532132752 |
Control, Throttle (AYP part number) Price: $17.99 |
| 2 |
ZNL1L000U |
HEX LOCKNUT M12 Price: $1.44 |
| 3 |
876064W |
ROLLER MOUNTING W/A Price: $91.66 |
| 4 |
10-11-017 |
GREASE NIPPLE 1/8BSP STR Price: $1.44 |
| 4 |
532192334 |
SCREW.SOCKET HD.5/16-1 This part replaces 871070512. Price: $2.99 |
| 5 |
810040500 |
Washer, Lock Heavy Helical Spring 5/16 (AYP part number) Price: $2.99 |
| 5 |
876099 |
DISC SPRING DIA 25* DIA 12,2*1,5MMTHK Price: $1.40 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532125593. Price: $7.99 |
| 6 |
63-01-960 |
REAR ROLLER ADJUSTING STUD Price: $28.47 |
| 7 |
111-9450 |
SHAFT-ADJUSTER, ROLLER Price: $63.35 |
| 8 |
532121094 |
Bolt, Shoulder 5/16 (AYP part number) Price: $2.99 |
| 8 |
63-02-123 |
REAR ROLLER ADJ SPACER Price: $10.76 |
| 9 |
531003379 |
WASHER This part replaces 819101216. Price: $2.99 |
| 10 |
810040400 |
Washer, Lock Hvy Hlcl Spring 1/4 (AYP part number) Price: $3.99 |
| 10 |
876062 |
NUT ROLLER Price: $11.05 |
| 12 |
532137437 |
Muffler (AYP part number) Price: $179.99 |
| 12 |
876006 |
SMOOTH ROLLER (SERVICEABLE) Price: $153.04 |
| 13 |
876098 |
CAP PRESSURE CONTROL Price: $8.40 |
| 14 |
63-07-072 |
SCRAPER WIRE Price: $17.04 |
| 15 |
532137180 |
Arrester, Spark (Optional equipment) (AYP part number) Price: $129.99 |
| 15 |
876013W |
HANDWHEEL Price: $18.57 |
| 16 |
09730 |
PIN SPIROL Price: $1.42 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 17 |
876034 |
DISC SPRING Price: $1.65 |
| 18 |
214053 |
DECAL HEIGHT OF CUT Price: $1.63 |
| 19 |
876082 |
BEARING Price: $5.65 |
| 20 |
876047 |
TRUNNION Price: $32.01 |
| 21 |
876085 |
SLEEVE ADJUSTER Price: $31.75 |
| 22 |
876003 |
SPRING COMPRESSION Price: $2.52 |
| 23 |
876053 |
CAGE BACKLASH Price: $20.69 |
| 24 |
876054 |
NUT BACKLASH Price: $13.28 |
| 25 |
876004 |
SWING BOLT Price: $21.66 |
| 26 |
876035 |
BEARING Price: $3.25 |
| 27 |
09599 |
WASHER Price: $1.42 |
| 28 |
09454 |
NUT M12 PLAIN HEX PLATED Price: $1.36 |
| 29 |
876022 |
PIN PIVOT Price: $8.77 |
| 30 |
876009W |
COUNTERWEIGHT Price: $44.64 |
| 31 |
ZWQ1J000U |
PLAIN HEAVY WASHER M10 Price: $1.38 |
| 32 |
09480 |
WASHER M10 SC SPRING Price: $1.36 |
| 33 |
ZCS1J030U |
SOC.HD.CAP Price: $1.31 |
| 34 |
876032 |
O RING Price: $1.65 |
| 35 |
63-07-008 |
CIRCLIP INTERNAL 52DIA Price: $2.55 |
| 36 |
63-07-036 |
BEARING Price: $9.69 |
| 37 |
63-07-038 |
SEAL DOUB.LIP 30*52*10W Price: $10.87 |
| 38 |
876007W |
CASTING BEARING Price: $128.11 |
| 39 |
134-0496 |
REEL-10 IN, 8 BLADE(LH HELIX) This part replaces 111-3420. Price: $632.85 |
| 40 |
ZNB1J000U |
M10 BINX SELF LOCKING NUT Price: $1.27 |
| 41 |
63-11-019 |
HEX HD SCREW(DURLOCK) M10X16 Price: $2.47 |
| 44 |
63-13-039 |
DECAL HEIGHT OF CUT ADJ Price: $1.44 |
| 45 |
40-07-017 |
CIRCLIP EXT.25MM DIA Price: $1.40 |
| 47 |
884024W |
SKID 10" MK3 Price: $34.32 |
| 48 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
| 49 |
09479 |
WASHER M10 X 21 X 1.45 THK (P) Price: $1.39 |
| 50 |
884007C |
MAINFRAME MK3 W/A DIA 250 Price: $598.56 |
| 51 |
09438 |
NUT M6 X 1.5 PLAIN Price: $1.39 |
| 52 |
ZDH1L016U |
HEX HD.SET SCW.M12*16 Price: $1.35 |
| 53 |
876069 |
PIN BEARING ADJUSTER Price: $26.70 |
| 54 |
884015W |
BRACKET-GUARD, LH Price: $32.31 |
| 55 |
09362 |
SCREW M6 X 16 HEX HD ZINC Price: $1.42 |
| 56 |
09738 |
BOLT CARRIAGE Price: $1.42 |
| 57 |
884016W |
BRACKET GUARD RH Price: $31.24 |
| 58 |
HY4200 |
WASHER Price: $1.34 |
| 59 |
ZNB1L000U |
HEX.NUT M12 BINX Price: $1.59 |
| 60 |
ZWP1L000U |
PLAIN WASHER M12 Price: $1.44 |
| 61 |
65-05-127 |
HEAD PIVOT PIN MK3 10"HD (400MM) Price: $38.34 |
| 62 |
876065 |
BUSH Price: $8.47 |
| 65 |
876060W |
BOTTOM BLADE ASSY Price: $280.94 |
| 69 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 70 |
40-13-010 |
DECAL - C/HEAD MIND TOES&FING Price: $1.44 |
| 71 |
340154 |
BUSHING Price: $4.85 |
