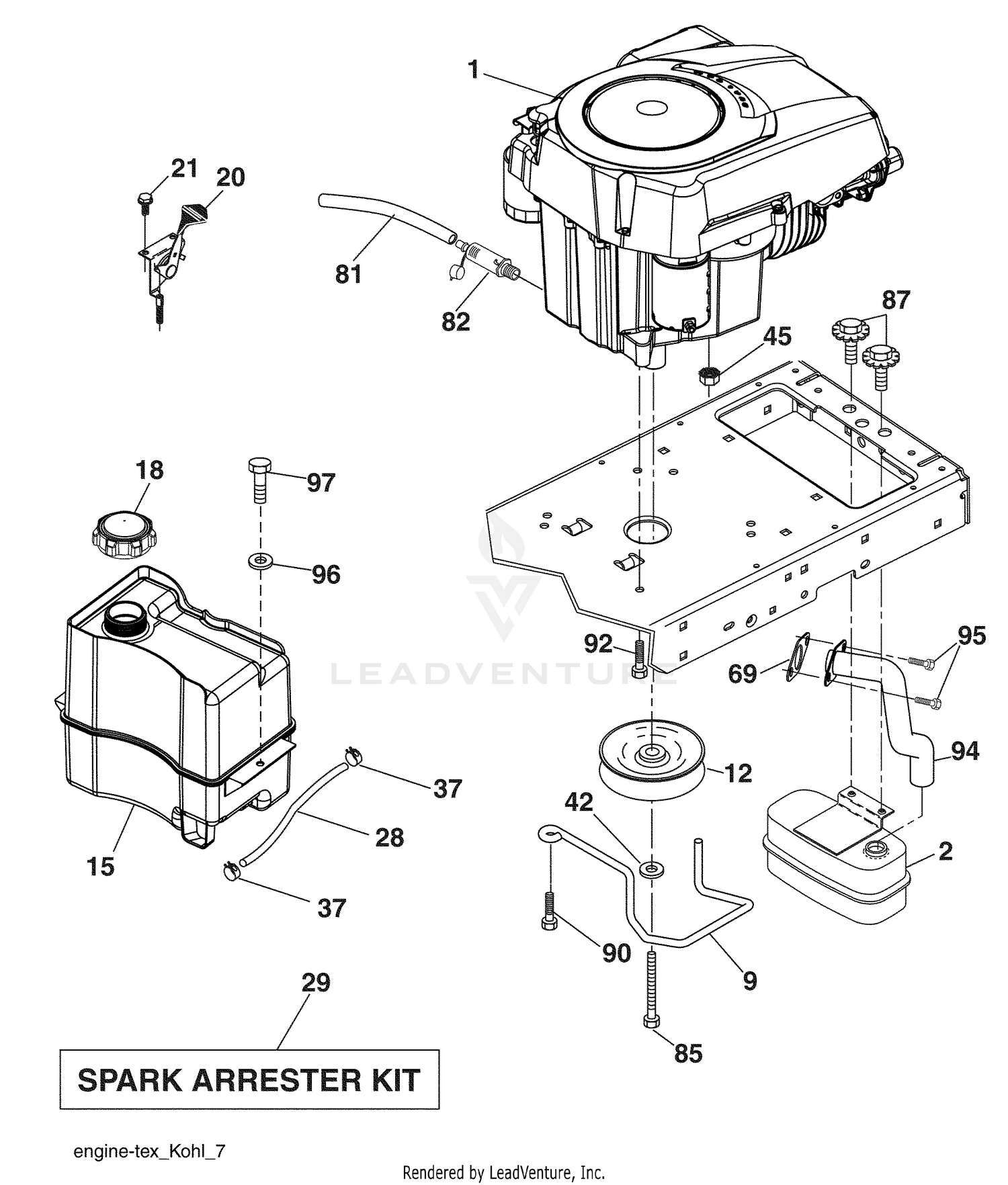

| Ref | Part Number | Description |
|---|
| 1 |
56-7983 |
DISCONTINUED Price: Call Us |
| 2 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 3 |
68-5750 |
HOSE ASSEMBLY #25 Price: $152.28 |
| 4 |
237-21 |
O-RING This part replaces 237-35. Price: $0.70 |
| 5 |
68-5760 |
HOSE ASSEMBLY #24 Price: $120.61 |
| 6 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 7 |
237-78 |
O-RING Price: $3.85 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
322-3 |
SCREW-HH Price: $0.79 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 11 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 12 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 12 |
532405140 |
PULLEY.ENGINE.5.0.PD Price: $44.99 |
| 13 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 14 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 15 |
70-8330 |
DISCONTINUED Price: Call Us |
| 16 |
70-8370 |
BOLT Price: $73.52 |
| 17 |
114-4643 |
WHEEL This part replaces 242-86. Price: $149.61 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 19 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 20 |
254-78 |
BEARING-CONE Price: $12.22 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
253-111 |
SEAL-OIL Price: $6.87 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
70-8490 |
SPACER-SPINDLE, REAR Price: $24.99 |
| 23 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 24 |
75-9440 |
HUB ASM Price: $131.34 |
| 25 |
70-8500 |
TIRE-SMOOTH, 2-PLY Price: $133.31 |
| 26 |
232-24 |
STEM-VALVE Price: $4.03 |
| 27 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 28 |
70-8400 |
REAR FENDER WA *R Price: $142.25 |
| 29 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3274-4 |
SCREW-HSH Price: $2.17 |
| 31 |
68-4770 |
DISCONTINUED Price: Call Us |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
