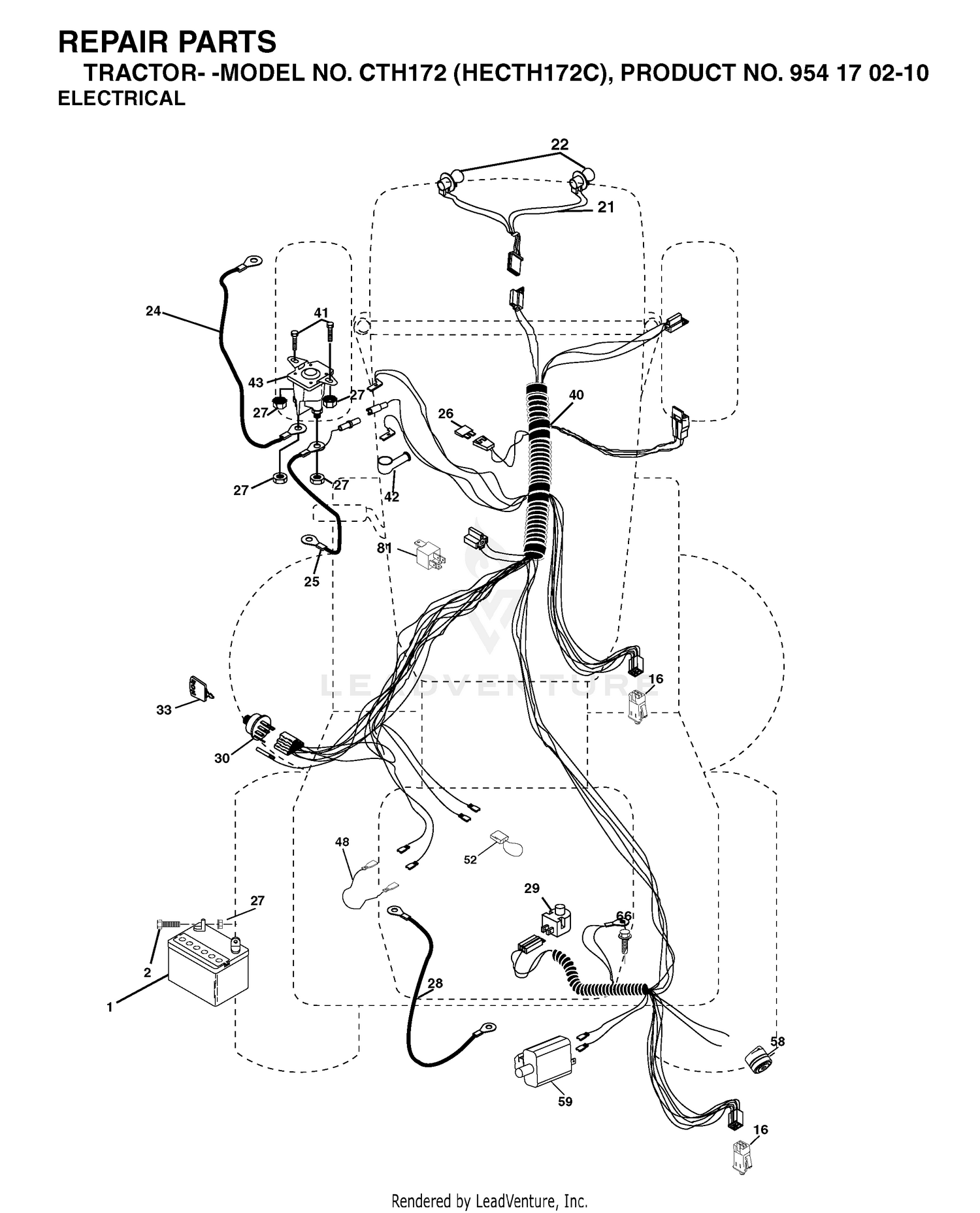

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 4 |
3290-216 |
WASHER Price: $3.83 |
| 8 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 9 |
20-4390 |
SPACER Price: $12.54 |
| 10 |
115-4948-01 |
HYDRAULIC CYLINDER ASM (12.19 STROKE) Price: $935.73 |
| 11 |
11-5630-01 |
STOP WA NO 6-7 This part replaces 11-5630. Price: $300.49 |
| 12 |
11-4590 |
PAD-BUMPER Price: $21.30 |
| 13 |
11-5270 |
WASHER-BUMPER Price: $12.82 |
| 14 |
322-6 |
SCREW-HH Price: $0.45 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 18 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 20 |
37-2910-01 |
REST-CYLINDER This part replaces 37-2910. Price: $99.17 |
| 21 |
325-6 |
SCREW-HH Price: $1.42 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
3-0144 |
SHAFT Price: $53.89 |
| 25 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532188036 |
NEEDS DESCRIPTION Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
