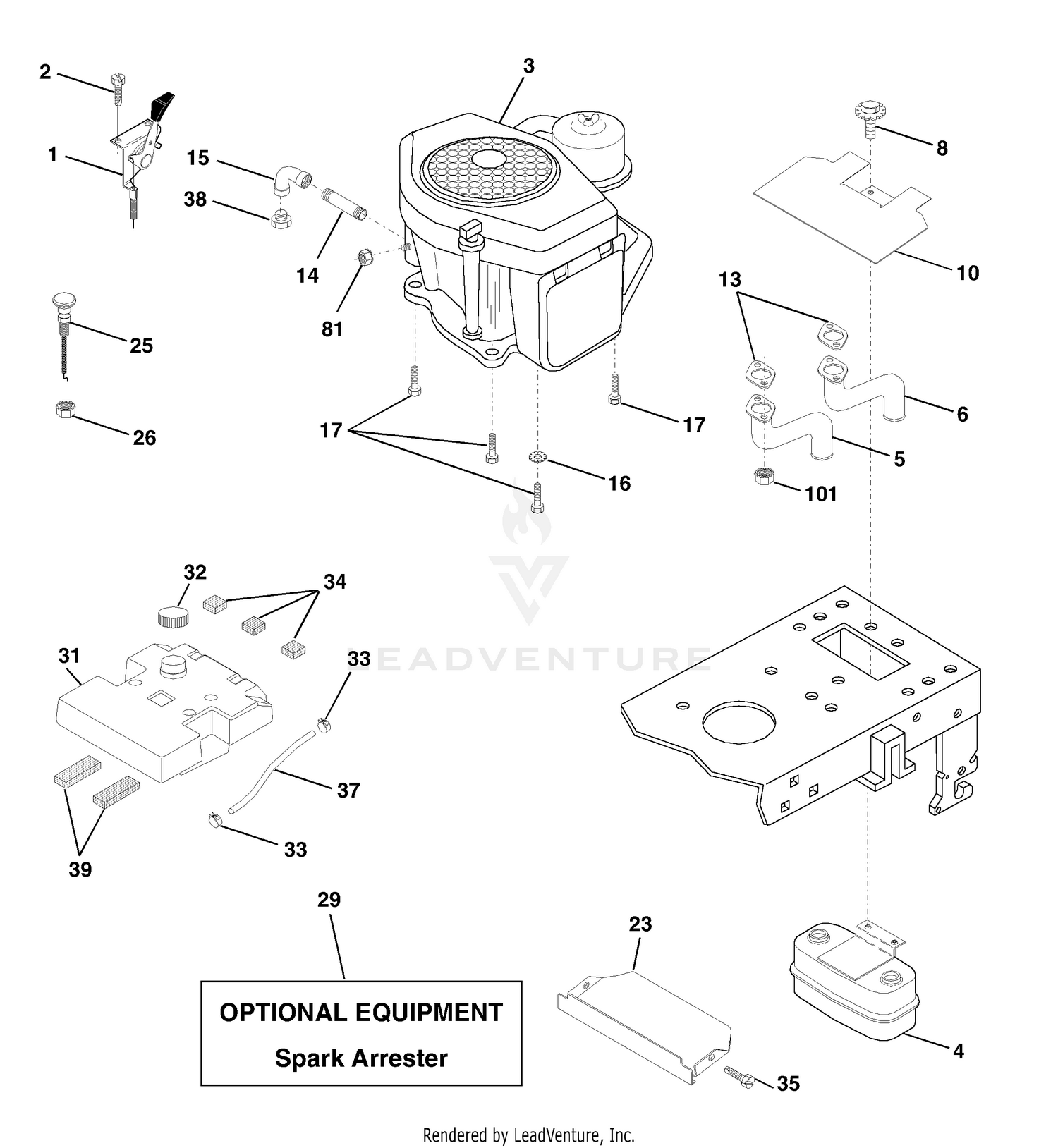

| Ref | Part Number | Description |
|---|
| 1 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 1 |
532170863 |
CONTROL,TH/CH FLAG This part replaces 532155274. Price: $27.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 3 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
94-5033-03 |
BRACKET-SUPPORT, CYLINDER This part replaces 94-5033. Price: $182.59 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 5 |
92-7905 |
SWITCH AND BRACKET ASM Price: $293.34 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532150176. Price: $4.99 |
| 9 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
282-4 |
SHACKLE Price: $32.98 |
| 12 |
61-3830 |
CHAIN Price: $14.52 |
| 13 |
532163307 |
GASKET.KOHLER Price: $2.99 |
| 13 |
94-5010 |
PIN-ACTUATOR, SWITCH Price: $101.45 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" Price: $2.42 |
| 14 |
94-5011 |
SPRING-COMPRESSION Price: $18.13 |
| 15 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
72-4190 |
PIN-GUIDE, CYLINDER Price: $79.12 |
| 17 |
84-8440 |
BUSHING Price: $49.87 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
321-43 |
CAPSCREW Price: $0.41 |
| 19 |
61-2450 |
HUB-LIFT V Price: $106.24 |
| 21 |
340-86 |
FITTING-TEE Price: $35.23 |
| 22 |
94-5031 |
HYD CYLINDER ASM Price: $830.71 |
| 23 |
283-78 |
PIN-CLEVIS Price: $9.25 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 24 |
93-6733-03 |
BRACKET-MOUNT, VALVE This part replaces 93-6733. Price: $15.62 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 25 |
93-6718 |
BLOCK-VALVE Price: $2,070.41 |
| 26 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 26 |
873920600 |
Nut, Keps 3/8-24 Unf Price: $3.99 |
| 27 |
93-6904 |
SPACER-TUBE, SPLIT Price: $1.07 |
| 28 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 29 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 31 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 32 |
93-6935 |
DISCONTINUED Price: Call Us |
| 33 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 34 |
93-6800 |
HOSE-HYD Price: $89.80 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 35 |
94-5009 |
HOSE ASM Price: $102.32 |
| 36 |
94-5008 |
HOSE ASM Price: $102.26 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532124923. Price: $5.99 |
| 37 |
94-5007 |
DISCONTINUED Price: Call Us |
| 38 |
94-5006 |
HOSE ASM Price: $85.73 |
| 39 |
237-22 |
O-RING Price: $2.43 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
237-79 |
O-RING Price: $5.46 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
237-42 |
O-RING Price: $2.78 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 42 |
237-22 |
O-RING Price: $2.43 |
| 43 |
94-3424 |
BRACKET-MOUNT, SWITCH Price: $15.36 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
