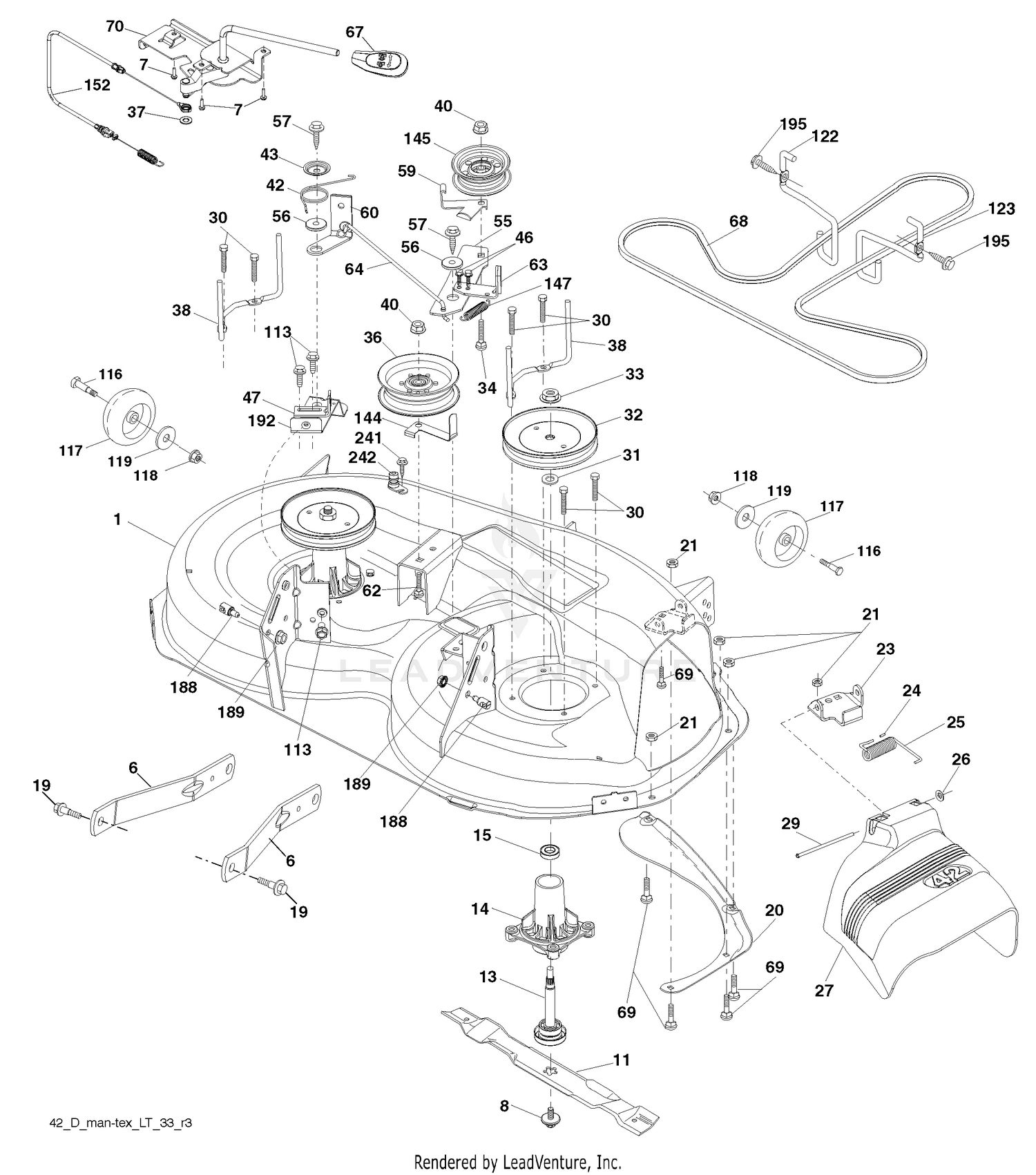

| Ref | Part Number | Description |
|---|
| 1 |
3212-5 |
SCREW-HH Price: $2.46 |
| 1 |
598602801 |
Decks This part replaces 532402999. Price: $349.99 |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 3 |
44-8160 |
DISCONTINUED Price: Call Us |
| 4 |
93-6706-03 |
PULLEY This part replaces 93-6706. Price: $137.29 |
| 5 |
68-6030 |
BOLT Price: $11.34 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
93-6725 |
KEEPER-WIRE Price: $10.15 |
| 7 |
33004-00 |
NUT-HF Price: $0.34 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
83-8080 |
KEY Price: $7.28 |
| 10 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
2412-96 |
CLAMP-R Price: $3.46 |
| 13 |
57-6390 |
NUT-JAM Price: $0.89 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 17 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
93-6719 |
MUFFLER ASM Price: $513.51 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
93-6721 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
93-6720 |
DISCONTINUED Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
93-6722 |
DISCONTINUED Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
82-3110 |
SENDER-TEMP Price: $36.76 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 27 |
93-6728 |
HOSE-RADIATOR, TOP Price: $43.77 |
| 28 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
93-6713-03 |
BRACKET-MOUNT, ENGINE ASM This part replaces 93-6713. Price: $45.57 |
| 32 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
93-6729 |
HOSE-RADIATOR, LOWER Price: $54.09 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532432520. Price: $6.99 |
| 39 |
32128-19 |
NUT-HF Price: $0.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 40 |
93-6892-03 |
BRACKET-CABLE, THROTTLE This part replaces 93-6892. Price: $23.11 |
| 41 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 42 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 43 |
92-3154 |
TAB-THROTTLE Price: $7.93 |
| 44 |
33093-00 |
WASHER-FLAT This part replaces 48-8010. Price: $0.70 |
| 45 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
93-6712-03 |
BRACKET-ENGINE MOUNT, FRONT ASM This part replaces 93-6712. Price: $50.27 |
| 47 |
32148-14 |
NUT-CLINCH Price: $1.29 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 48 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 49 |
93-6707 |
DISCONTINUED Price: Call Us |
| 50 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 51 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 53 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 54 |
93-6727 |
CLUTCH Price: $622.49 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 55 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 56 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
3290-432 |
SCREW-HH Price: $0.81 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 58 |
94-3692 |
DISCONTINUED Price: Call Us |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 59 |
93-6775 |
CABLE-BATTERY, POS Price: $111.66 |
| 60 |
597074201 |
ARMS This part replaces 532197261. Price: $12.99 |
| 60 |
94-5980 |
CABLE-BATTERY, NEG Price: $92.64 |
| 61 |
75-4703 |
HOSE Price: $16.06 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 63 |
33004-00 |
NUT-HF Price: $0.34 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC Price: $11.99 |
| 64 |
93-6946-03 |
BRACKET-ENGINE MOUNT, RH REAR ASM This part replaces 93-6946. Price: $33.87 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
598559101 |
Belts This part replaces 532429636. Price: $44.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX Price: $71.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401971 |
RETURN SPRING Price: $4.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING Price: $32.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 192 |
531152801 |
SERVICE KIT BRACKET BRKT.BRAKE This part replaces 532197260. Price: $5.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
| 532422719 |
BLADE.42SP"3N1 |
This part replaces 532424752. Price: $17.99 532422719 |
