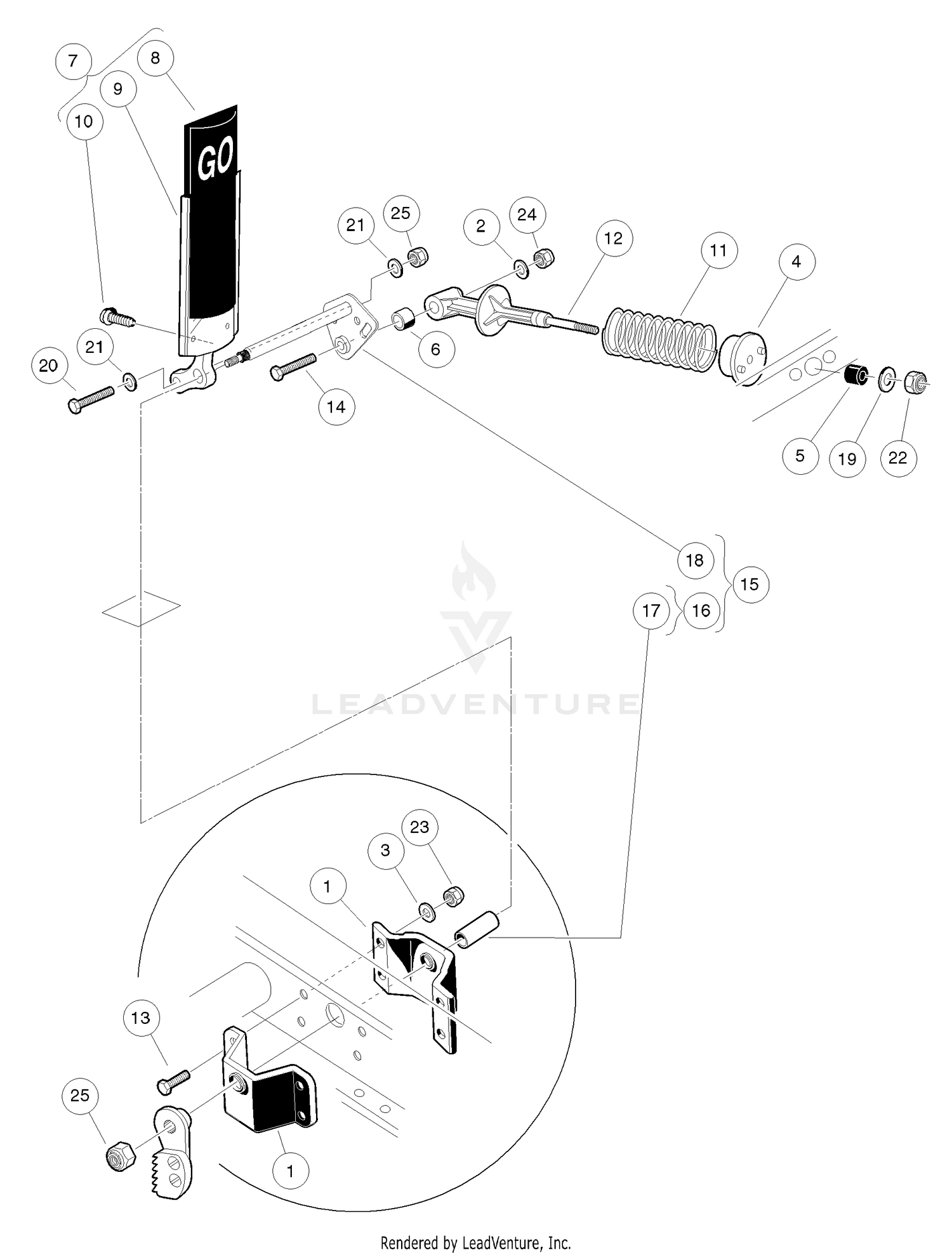

| Ref | Part Number | Description |
|---|
| 1 |
603000126 |
ACCEL BRKT & BEARING ASSY Price: $34.99 |
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
603003048 |
WASHER, 1/4 FLAT Price: $1.99 |
| 2 |
74-8080 |
WASHER This part replaces 94-3146. Price: $4.77 |
| 3 |
603000194 |
WASHER Price: $1.99 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
603000392 |
CUP, SPRING Price: $6.99 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
603000393 |
BUMPER, SPRING RETURN Price: $3.99 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
603000395 |
BEARING, PIVOT SUPPORT Price: $11.99 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
603000192 |
PAD , ACCL PEDAL Price: $7.99 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
603000081 |
SCREW TYPE AB SHT MTL Price: $1.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
603000490 |
SPRING, ACCELERATOR RETURN Price: $22.99 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
603000499 |
RETAINER, SPRING Price: $24.99 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
603000528 |
SCREW, 1/4-20 X 1.125 HEX CAP Price: $1.99 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
603003199 |
SCREW, 1/4-20 X 1.500 FLANGE Price: $3.99 |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
94-3147 |
DISCONTINUED Price: Call Us |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
603000065 |
WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
603000068 |
SCREW, 3/8-16 X 1.5 HX HD CAP Price: $2.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
603000055 |
WASHER, 3/8 FLAT Price: $1.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
603000078 |
LOCKNUT, 5/16-18 NYLON INSERT Price: $1.99 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
603000089 |
LOCKNUT, 1/4-20 NYLON INSERT Price: $1.99 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
603000094 |
LOCKNUT, 1/4-28 NYLON INSERT Price: $1.99 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING This part replaces 94-3156. Price: $23.09 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
