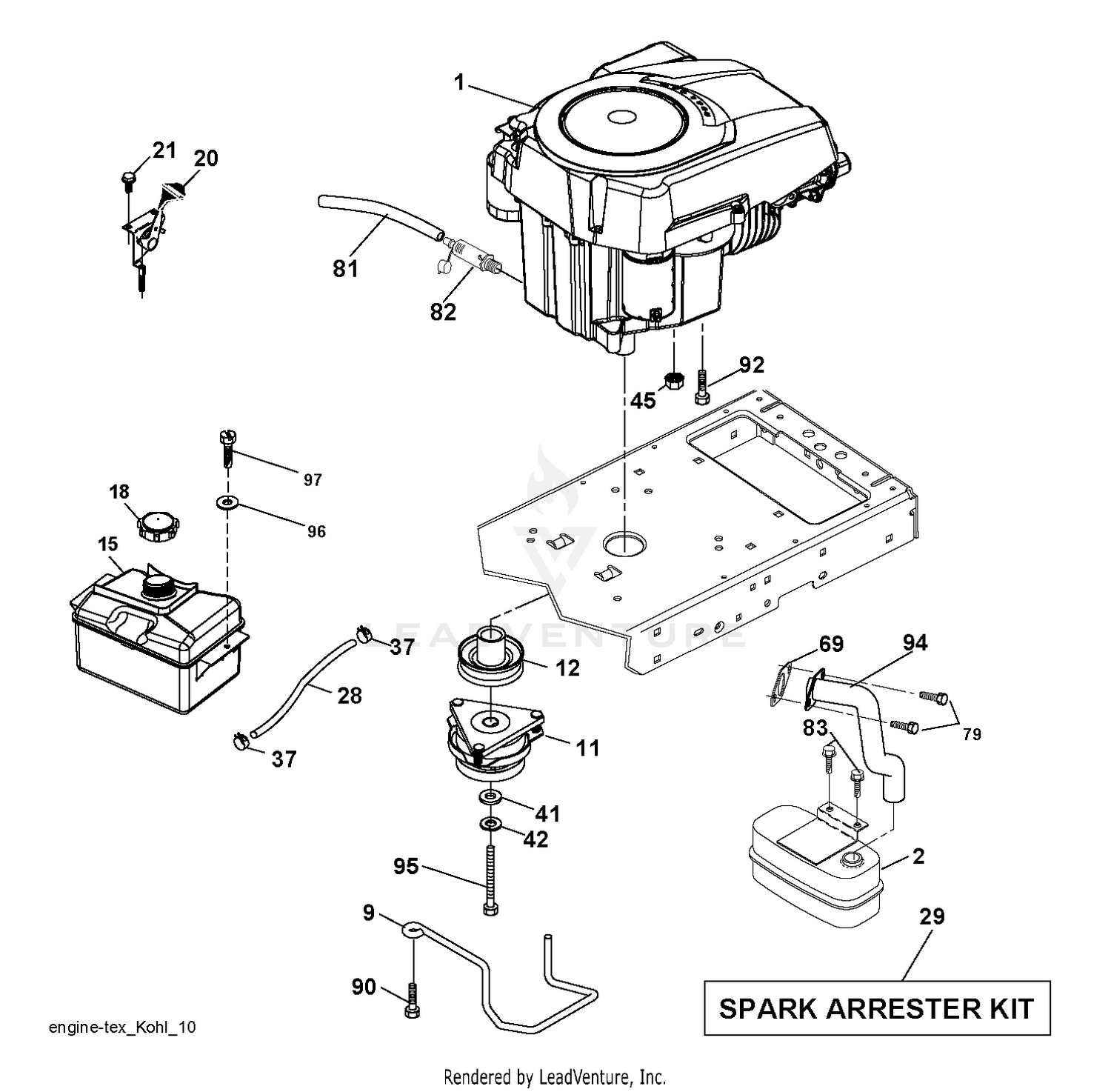

| Ref | Part Number | Description |
|---|
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM Price: $196.85 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9525. Price: $86.06 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 127-0440. Price: $7.12 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
112-7046 |
COVER-CASE, BEARING Price: $66.00 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
112-0180 |
SEAL-OIL Price: $58.48 |
| 60 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 70 |
127-0441 |
BOLT Price: $0.61 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 80 |
127-0442 |
BOLT Price: $0.61 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
127-0427 |
MAIN BEARING CASE ASM Price: $178.70 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
127-0428 |
MAIN BEARING CASE ASM Price: $178.70 |
| 125 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 130 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 140 |
127-0429 |
BEARING CASE ASM Price: $161.56 |
| 145 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
