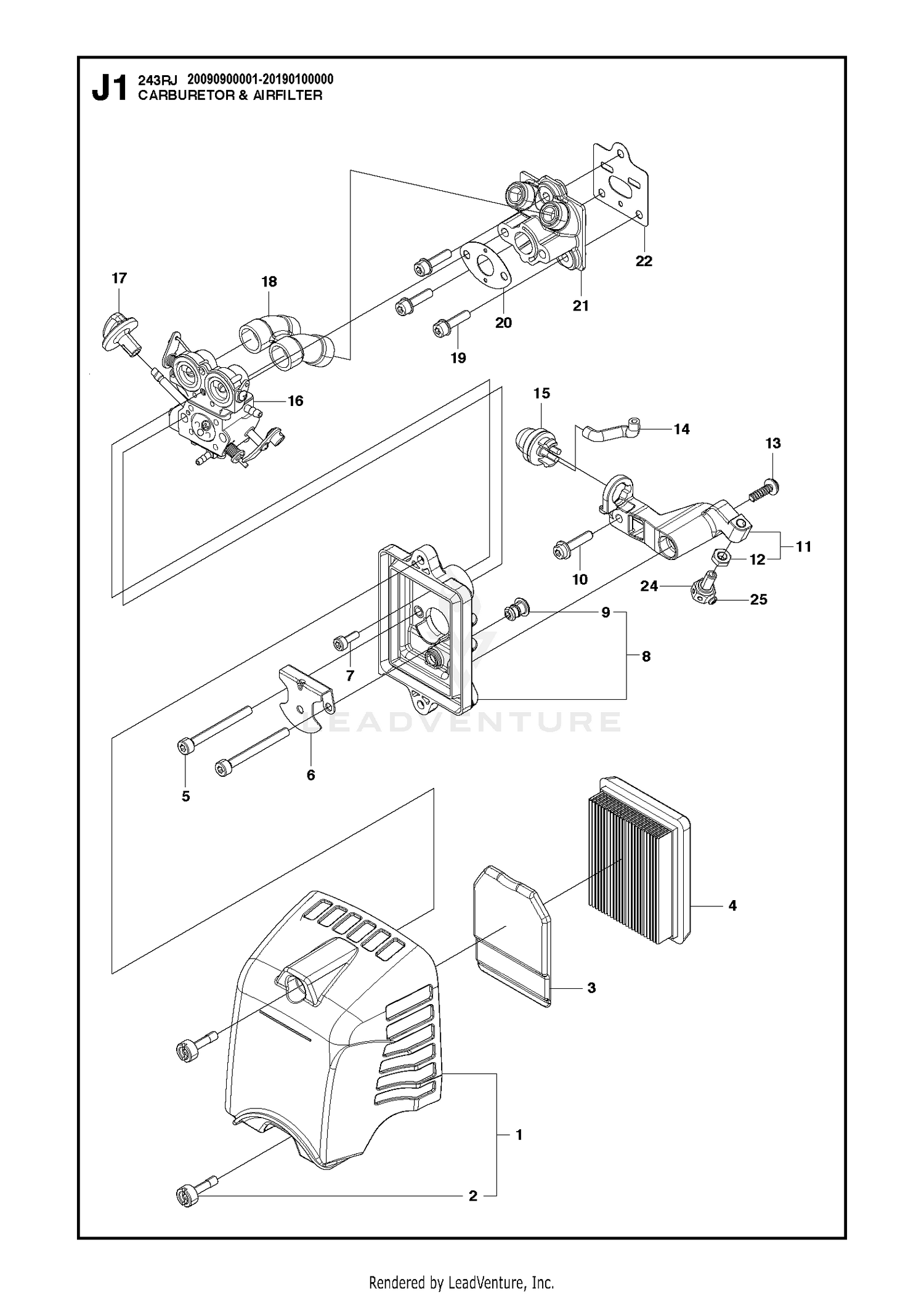

CARBURETOR & AIR FILTER
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 1 | 528706501 | Price: Call Us |
| 2 | 521515401 | SCREW Price: $0.78 |
| 2 | SG322112 | NUT-HEX SLOTTED Price: $108.79 |
| 3 | 521625701 | Price: Call Us |
| 3 | SG322119 | ARM-CRANK Price: $741.92 |
| 4 | 105-1041 | PIN-SPRING Price: $1.88 |
| 4 | 521642101 | ELEMENT Price: $17.99 |
| 5 | 504116501 | BOLT Price: $2.99 |
| 5 | SG322108 | BUSHING-SPROCKET Price: $10.04 |
| 6 | 521625801 | Price: Call Us |
| 6 | SG322104 | CRANK ARM DRIVER Price: $793.18 |
| 7 | 521515701 | BOLT M4 X 12 T27 Price: $2.99 |
| 7 | SG322125 | PIN-COTTER Price: $0.68 |
| 8 | 521625401 | Price: $10.66 |
| 8 | SG250375 | PIN-DOWEL Price: $40.24 |
| 9 | 521625601 | GROMMET Price: $3.99 |
| 9 | SG322100 | PIN-CRANK Price: $544.13 |
| 10 | 328-12 | SCREW-HH Price: $9.77 |
| 10 | 506745201 | BOLT Price: $4.99 |
| 11 | 121-6907 | MAIN BEARING HOUSING ASM Price: $1,386.14 |
| 12 | 323-9 | SCREW-HH Price: $1.29 |
| 12 | 510487401 | NUT Price: $2.99 |
| 13 | 521517901 | SCREW Price: $2.99 |
| 13 | SG322113 | HALF SPROCKET ASM Price: $1,073.10 |
| 14 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 14 | 521523501 | TUBE Price: $2.22 |
| 15 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 15 | 97-1517 | DISC PREC HUSKY Price: Call Us |
| 16 | 521625001 | Price: Call Us |
| 16 | SG322101 | CRANKSHAFT-RH Price: $975.21 |
| 17 | 3253-8 | WASHER-LOCK Price: $0.47 |
| 17 | 521641701 | KNOB Price: $1.74 |
| 18 | 521641501 | PIPE Price: $9.93 |
| 19 | 505040401 | BOLT, TORX Price: $2.99 |
| 20 | 521622801 | Price: Call Us |
| 21 | 521622501 | Price: Call Us |
| 22 | 521622701 | Price: Call Us |
| 24 | 505308201 | SCREW CABLE ADJUST Price: $29.99 |
| 25 | 505308301 | SCREW Price: $2.99 |
