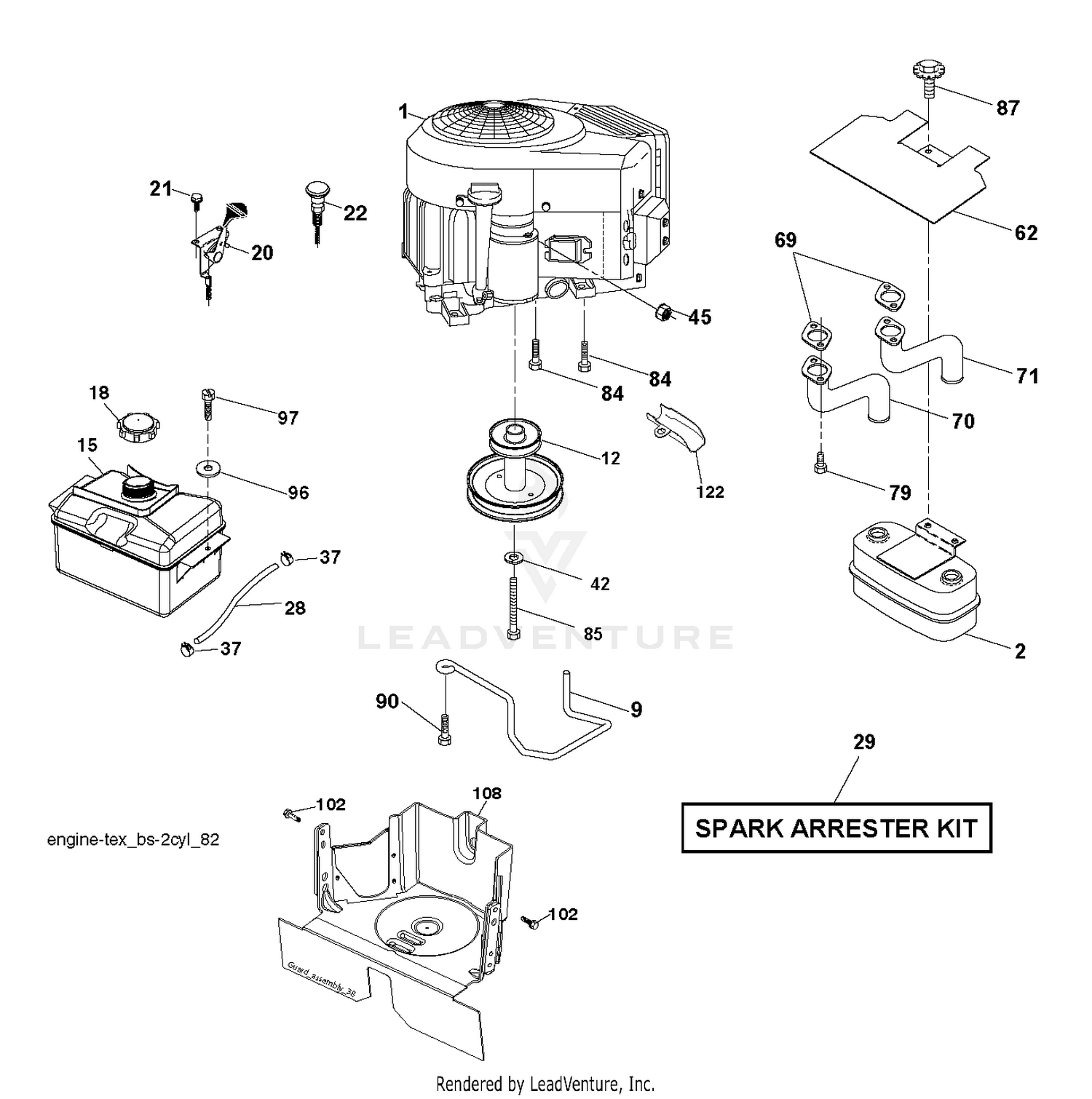

| Ref | Part Number | Description |
|---|
| 1 |
99-8348 |
BOLT Price: $0.24 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $45.99 |
| 2 |
98-7654 |
GASKET Price: $8.84 |
| 3 |
98-7572 |
NUT Price: $0.32 |
| 4 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 5 |
98-9661 |
CONTROL PLATE ASM Price: $167.65 |
| 6 |
98-9362 |
STUD Price: $0.66 |
| 7 |
98-9637 |
GASKET Price: $3.98 |
| 9 |
532194320 |
KEEPER.BELT.ENGINE.4.2 Price: $8.99 |
| 12 |
532405471 |
PULLY ENGINE Price: $64.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 20 |
532175437 |
CONTROL THROTTLE This part replaces 532178385. Price: $25.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 22 |
532191596 |
CONTROL CHOKE Price: $23.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 70 |
532159955 |
EXHAUST TUBE LH *SUBS/2* Price: $25.99 |
| 71 |
532160589 |
EXHAUST TUBE RH Price: $39.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 102 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 108 |
532423041 |
Price: $41.99 |
