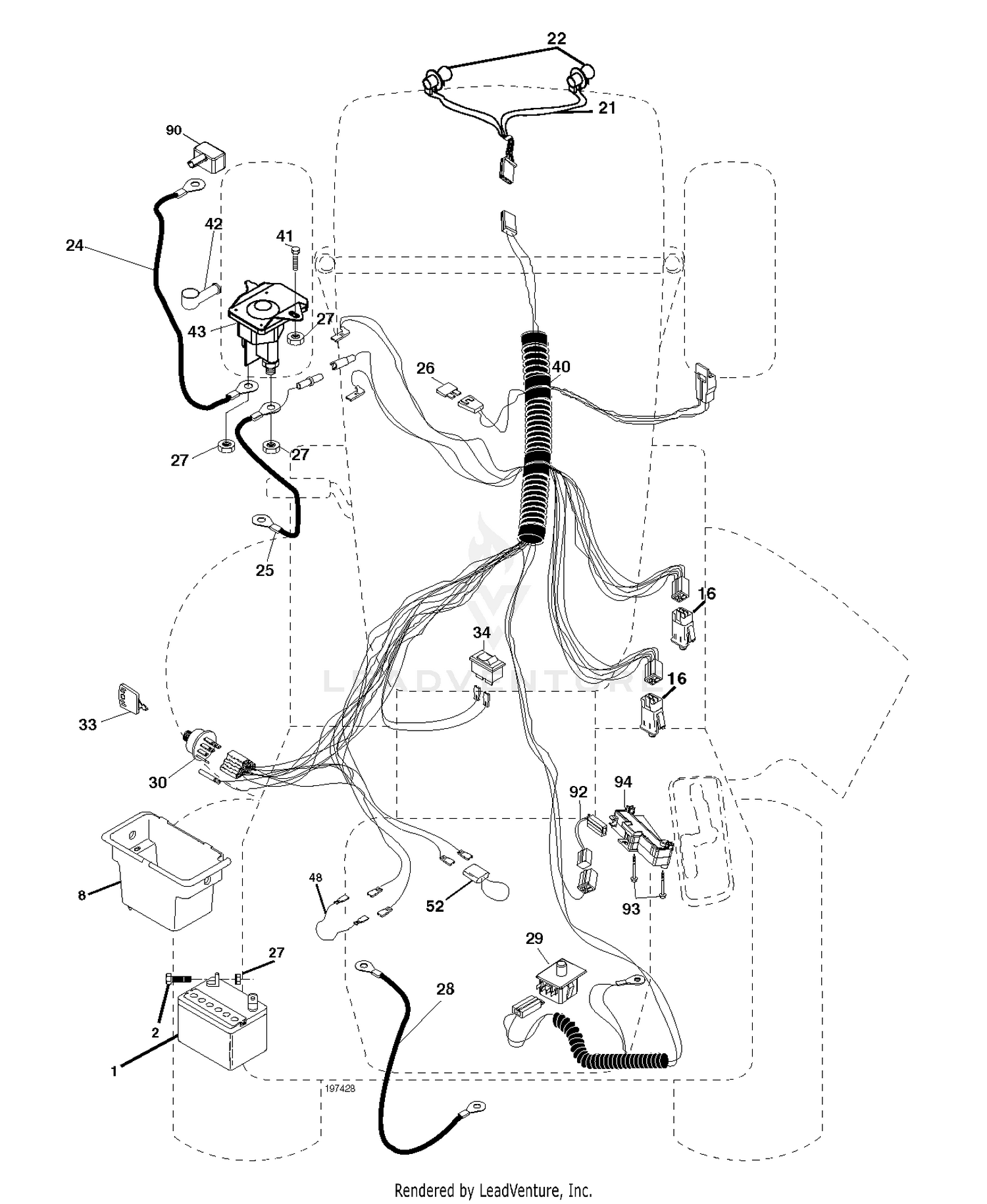

| Ref | Part Number | Description |
|---|
| 1 |
322-10 |
SCREW-HH Price: $0.70 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
13-2970 |
BUSHING Price: $182.26 |
| 4 |
13-2800 |
SHEAVE Price: $961.42 |
| 5 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 6 |
13-3790 |
FAN SHAFT Price: $671.39 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3217-7 |
NUT-HEX Price: $0.28 |
| 8 |
532176689 |
BOX.BATTERY.FENDER Price: $9.99 |
| 9 |
13-2810 |
SQUARE KEY Price: $31.13 |
| 10 |
13-3350-01 |
MOUNTING BRKT This part replaces 13-3350. Price: $59.51 |
| 11 |
67-5360 |
DECAL-DANGER This part replaces 13-6470. Price: $14.99 |
| 12 |
13-3850-01 |
BOOT-BLOWER This part replaces 13-3850. Price: $344.08 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 16 |
3244-14 |
SCREW-SET, SQH Price: $7.19 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 18 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 19 |
13-3420-03 |
FAN ASM This part replaces 13-1280. Price: $2,196.74 |
| 20 |
325-7 |
SCREW-HH Price: $1.53 |
| 21 |
13-1310 |
Fan Hub Price: Call Us |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 25 |
56-6220 |
BEARING This part replaces 251-243. Price: $122.98 |
| 26 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3217-9 |
NUT-HH Price: $0.37 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
251-233 |
DISCONTINUED Price: Call Us |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
13-1420-01 |
COVER-INSPECTION This part replaces 13-1420. Price: $31.70 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
32103-12 |
NUT-WING Price: $1.15 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
119-6263 |
BLOWER AND THROAT ASM This part replaces 13-6280. Price: $7,479.09 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
13-6390-01 |
HANDLE-FLAP This part replaces 13-6390. Price: $134.01 |
| 36 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
13-6360 |
ROD-LIFT, FLAP Price: $118.60 |
| 39 |
3218-6 |
NUT-JAM Price: $0.61 |
| 40 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 40 |
532197428 |
HARNESS.IGN.CABLE.REG. Price: $69.99 |
| 41 |
323-8 |
SCREW-HH Price: $1.20 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
13-4760 |
DISCONTINUED Price: Call Us |
| 45 |
13-3130 |
END-FLAP Price: $26.55 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
13-4700 |
LOWER FLAP ASM Price: $1,182.39 |
| 48 |
13-4560-03 |
WEIGHT-FLAP This part replaces 13-4560. Price: $25.30 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 49 |
321-8 |
SCREW-HH Price: $0.34 |
| 50 |
13-1390-01 |
RETAINER-FLAP This part replaces 13-1390. Price: $96.90 |
| 51 |
3217-5 |
NUT-HEX Price: $0.25 |
| 52 |
322-1 |
SCREW-HH Price: $0.22 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 53 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 54 |
13-4800-01 |
BELT GUARD WA This part replaces 13-4800. Price: $1,224.67 |
| 55 |
321-4 |
SCREW-HH Price: $0.99 |
| 56 |
121-2839 |
DECAL-CAUTION This part replaces 13-6410. Price: $25.19 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 92 |
532190615 |
NEEDS DESCRIPTION Price: Call Us |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
