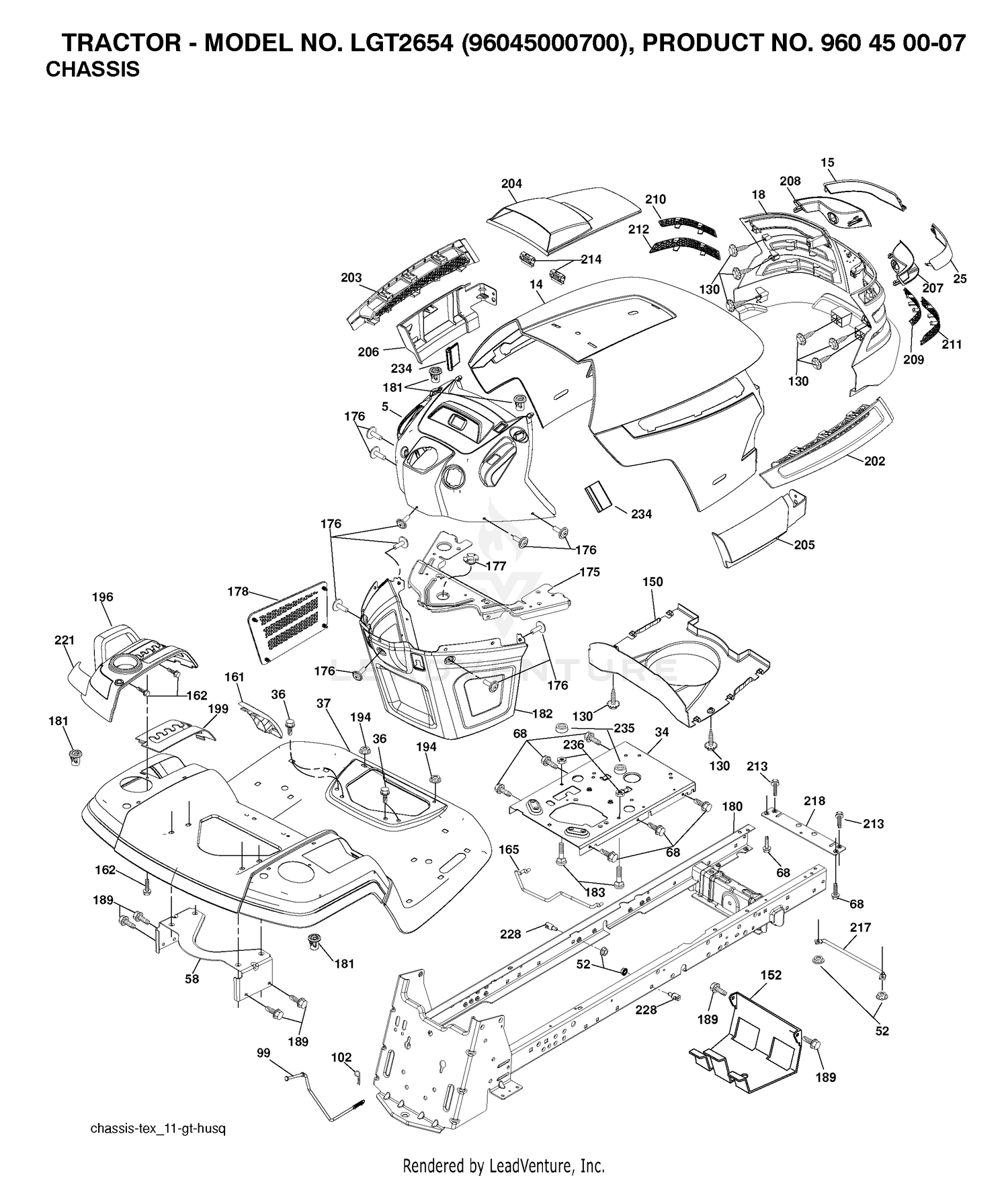

| Ref | Part Number | Description |
|---|
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
302-59 |
PLUG-THREADED Price: $5.86 |
| 4 |
3220-6 |
NUT-JAM Price: $1.25 |
| 5 |
532408701 |
DASH.ASM.HUSQ.GT.E.RECT.W/CK Price: $54.99 |
| 5 |
95-8905-01 |
FORK-REAR Price: $838.31 |
| 6 |
325-3 |
SCREW-HH Price: $1.49 |
| 7 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 8 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 10 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 11 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 13 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 14 |
95-8694 |
HYD MOTOR ASM Price: $1,616.38 |
| 15 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
82-8170 |
CLAMP Price: $17.27 |
| 17 |
93-7960 |
SPACER Price: $5.67 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532404821. Price: $129.99 |
| 18 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 19 |
107-7828 |
REAR CASTING ASM This part replaces 107-7828-03. Price: $1,128.44 |
| 20 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 21 |
322-13 |
SCREW-HH Price: $2.73 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
532415743 |
ROD.SPRING.BYPASS.K46.TEX.GT This part replaces 532405917. Price: $6.99 |
| 102 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 150 |
532198512 |
AIR.DUCT.HOOD.TEX.GT.HUSQ Price: $29.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU This part replaces 532193232. Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033001 |
KITS.WELD.CHASSIS.195477X431 This part replaces 532401559. Price: $249.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 219 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 220 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
