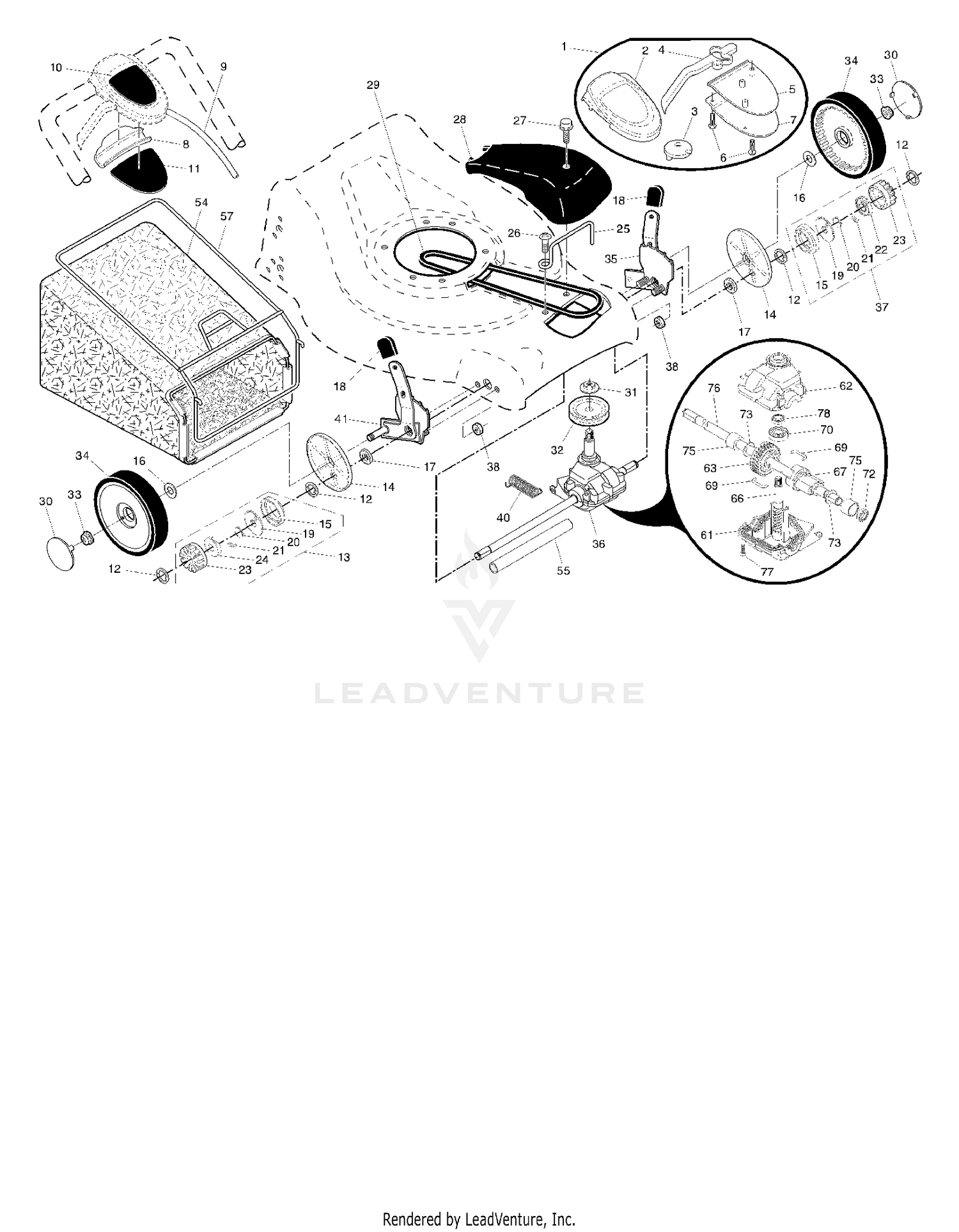

| Ref | Part Number | Description |
|---|
| 0 |
640272A |
CARBURETOR This part replaces 640195. Price: $78.00 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 1 |
ZBH1L070U |
HEX HD.BOLT M12*70 Price: $1.31 |
| 2 |
631767 |
SPRING Price: $1.25 |
| 2 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 3 |
09650 |
NUT Price: $1.40 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 6 |
640070 |
SHUTTER Price: $1.25 |
| 7 |
532184212 |
BRACKET, DRIVE CONTROL Price: $3.99 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
111-7460 |
PLATE-SPREADER Price: $26.18 |
| 8 |
532184987 |
EA WLK COVER PLATE.BLK Price: $3.99 |
| 11 |
532185913 |
DECAL Price: $5.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $1.99 |
| 13 |
532414860 |
KIT PINION ASM This part replaces 532188330. Price: $54.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $2.99 |
| 15 |
532184172 |
SEAL.PINION Price: $3.99 |
| 16 |
532067725 |
WASHER FLUT Price: $3.99 |
| 16 |
631807 |
FUEL FITTING Price: $6.03 |
| 17 |
532169911 |
BEARING, BALL Price: $9.99 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
532087877 |
Selector Knob (AYP part number) This part replaces 532170143. Price: $2.99 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 19 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $3.99 |
| 20 |
532188291 |
SPRING, TORSION Price: $2.99 |
| 20 |
640027 |
FUEL JET Price: $2.60 |
| 20A |
640200 |
CAP (BLACK) Price: $1.20 |
| 21 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $2.99 |
| 22 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 23 |
532175103 |
GEAR, PINION Price: $8.99 |
| 24 |
532175102 |
RETAINER, DRIVE, RH Price: $3.99 |
| 25 |
532188102 |
KEEPER, BELT Price: $11.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 26 |
532173715 |
SCREW Price: $2.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632816 |
FLOAT This part replaces 632802. Price: $5.90 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
532180660 |
HUBCAP Price: $3.99 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
532443262 |
PULLEY.DRIVE.EZ/VARI.SCREWON This part replaces 532189406. Price: $8.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.99 |
| 34 |
532180775 |
WHEEL.8X2XRADI This part replaces 532180767. Price: $22.99 |
| 35 |
36045A |
PRIMER Price: $4.99 |
| 35 |
532180915 |
KIT.ADJUSTER.ASM.EZ.LH Price: $39.99 |
| 36 |
532187212 |
TRANSMISSION.21RD.FGDE Price: $74.99 |
| 36 |
640080 |
NOZZLE Price: $4.95 |
| 36A |
632766 |
CARB VENT TUBE Price: $1.25 |
| 37 |
532414860 |
KIT PINION ASM This part replaces 532188331. Price: $54.99 |
| 37 |
632547 |
O RING Price: $1.49 |
| 38 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 40 |
532406558 |
SPRING This part replaces 532182226. Price: $2.99 |
| 40 |
632746 |
NUT Price: $3.86 |
| 41 |
532180914 |
KIT.ADJUSTER.ASM.EZ(169770).RT Price: $39.99 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
| 55 |
532175739 |
Price: $2.94 |
| 57 |
532194643 |
FRAME.GBAG.21.FWGD. This part replaces 532188815. Price: $37.99 |
| 63 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $9.99 |
| 66 |
532187527 |
SHAFT INPUT (13056) Price: $22.99 |
| 67 |
532187528 |
SPACER Price: $2.99 |
| 69 |
532183505 |
WIRE, FORMED Price: $2.99 |
| 70 |
532183506 |
BEARING Price: $5.99 |
| 72 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $3.99 |
| 73 |
532183509 |
WASHER Price: $3.99 |
| 75 |
532183511 |
BUSHING Price: $2.99 |
| 76 |
532187529 |
SHAFT OUTPUT (12198) Price: $54.99 |
| 77 |
532183513 |
SCREW Price: $2.99 |
