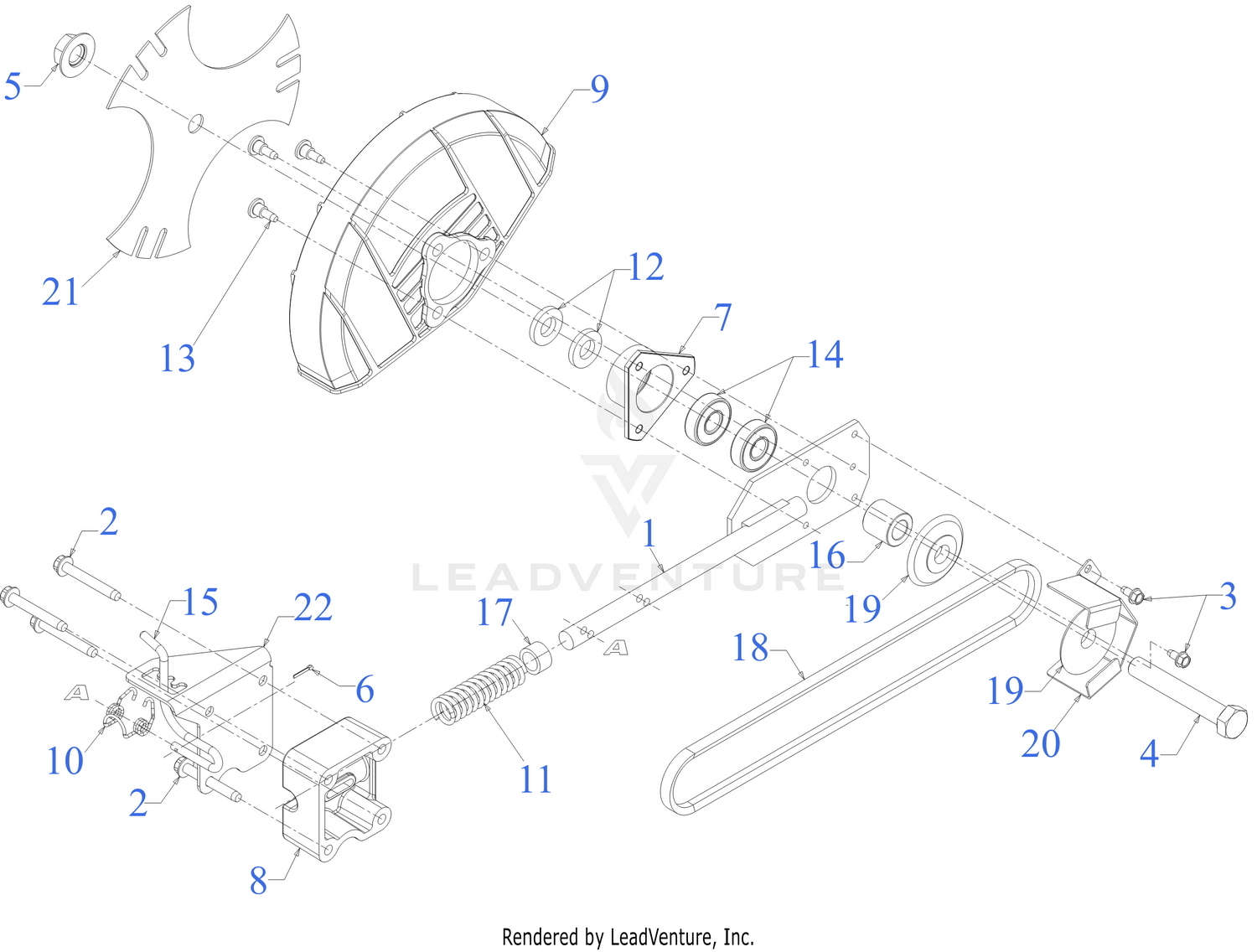

Blade
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 687-02126 | BLADE PLATE ASSEMBLY Price: $49.22 |
| 2 | 710-04389 | SCREW Price: $6.01 |
| 3 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 4 | 710-1143A | SCREW 5/8-18 X 4 GR5 Price: $10.02 |
| 6 | 714-3010 | COTTER PIN-3/32X62 Price: $4.08 |
| 7 | 718-04012 | BEARING CUP Price: $19.55 |
| 8 | 931-04207 | BEARING BLOCK Price: $24.30 |
| 9 | 731P05064 | EDGER BLADE GUARD (W/LABEL) Price: $23.87 |
| 10 | 732-0188A | TORSION SPRING Price: $11.77 |
| 11 | 932-04169 | COMPRESSION SPRING Price: $9.41 |
| 12 | 736-04088 | Flat Washer .635x1.24x.181 This part replaces 936-04088. Price: $3.90 |
| 13 | 738-0706D | Screw This part replaces 738-0706C. Price: $3.89 |
| 14 | 941-0524A | BALL BEARING Price: $20.36 |
| 15 | 747-04110A | ADJUSTMENT ROD Price: $15.95 |
| 16 | 950-04105 | SPACER Price: $13.42 |
| 17 | 750-0547 | SPACER Price: $4.83 |
| 18 | 954-04032B | BELT 3L X 35.8 Price: $23.31 |
| 19 | 956-0449 | SHEAVE Price: $13.09 |
| 20 | 781-0427-0637 | BELT GUARD- Price: $19.06 |
| 21 | 781-0748-0637 | BLADE TRI-CUT (POWDER BLACK) Price: $19.07 |
