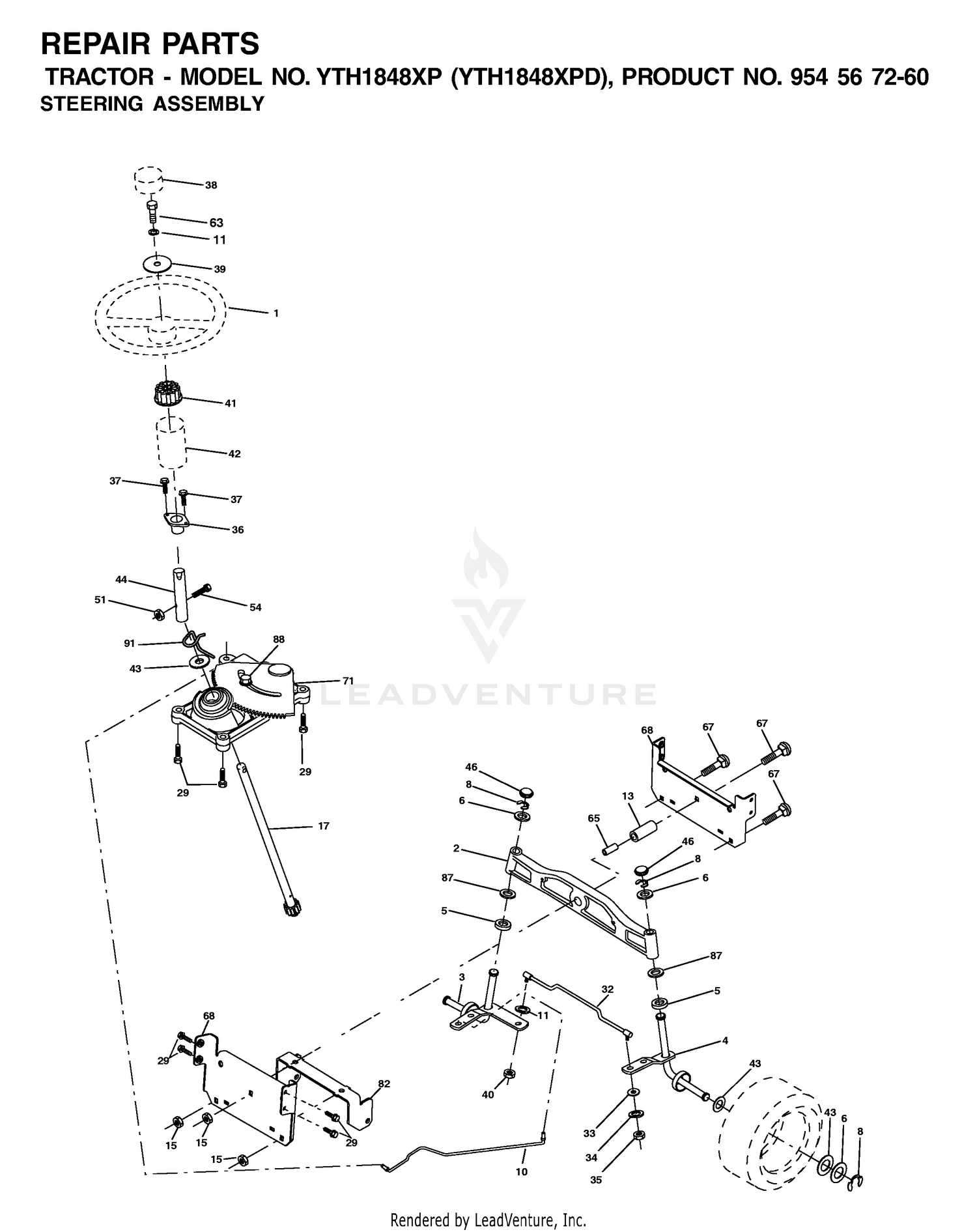

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
127-6428 |
LIFT CYLINDER ASM This part replaces 107-1978. Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532177876. Price: $59.99 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 23 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 119-3941-03. Price: $77.14 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Gauge Price: $2.99 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
