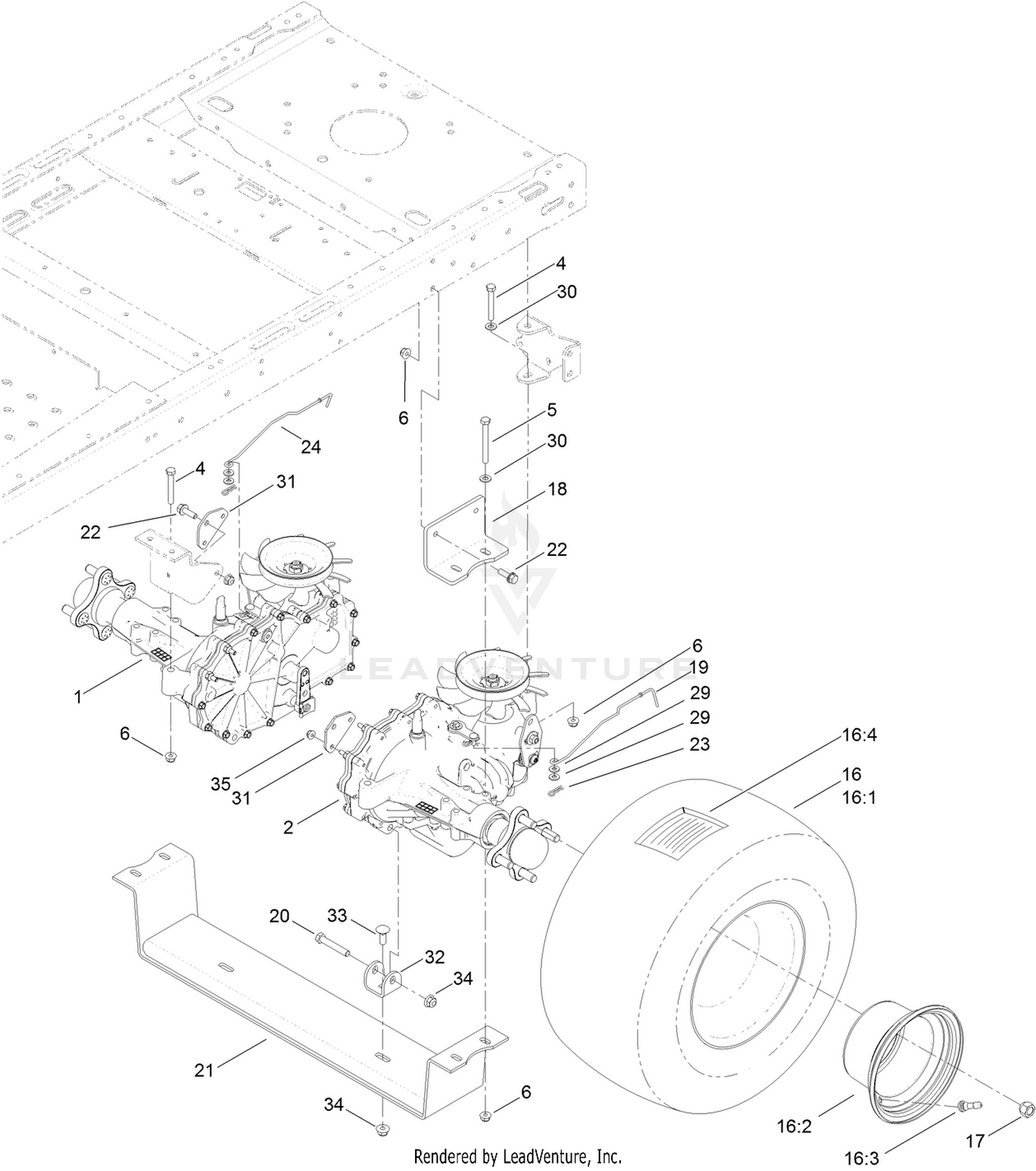

| Ref | Part Number | Description |
|---|
| 1 |
119-3361 |
RH HYDRO TRANSAXLE ASM Price: $1,074.37 |
| 2 |
140-5190 |
LH HYDRO TRANSMISSION ASM This part replaces 119-3360. Price: $1,074.37 |
| 4 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 5 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 17 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 18 |
121-0745-01 |
MOUNT-HYDRO Price: $21.75 |
| 19 |
121-2965 |
ROD-BYPASS, LH Price: $6.06 |
| 20 |
323-11 |
SCREW-HH Price: $1.08 |
| 21 |
121-0748-01 |
MOUNT-HYDRO Price: $114.03 |
| 22 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 23 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 24 |
120-7968 |
ROD-BYPASS, RH Price: $6.06 |
| 29 |
119-8952 |
WASHER Price: $0.77 |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
120-7918 |
PLATE-HYDRO MOUNT Price: $3.02 |
| 32 |
121-0749 |
TAB-HYDRO Price: $7.57 |
| 33 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 34 |
104-8301 |
NUT-HF, NI Price: $1.09 |
