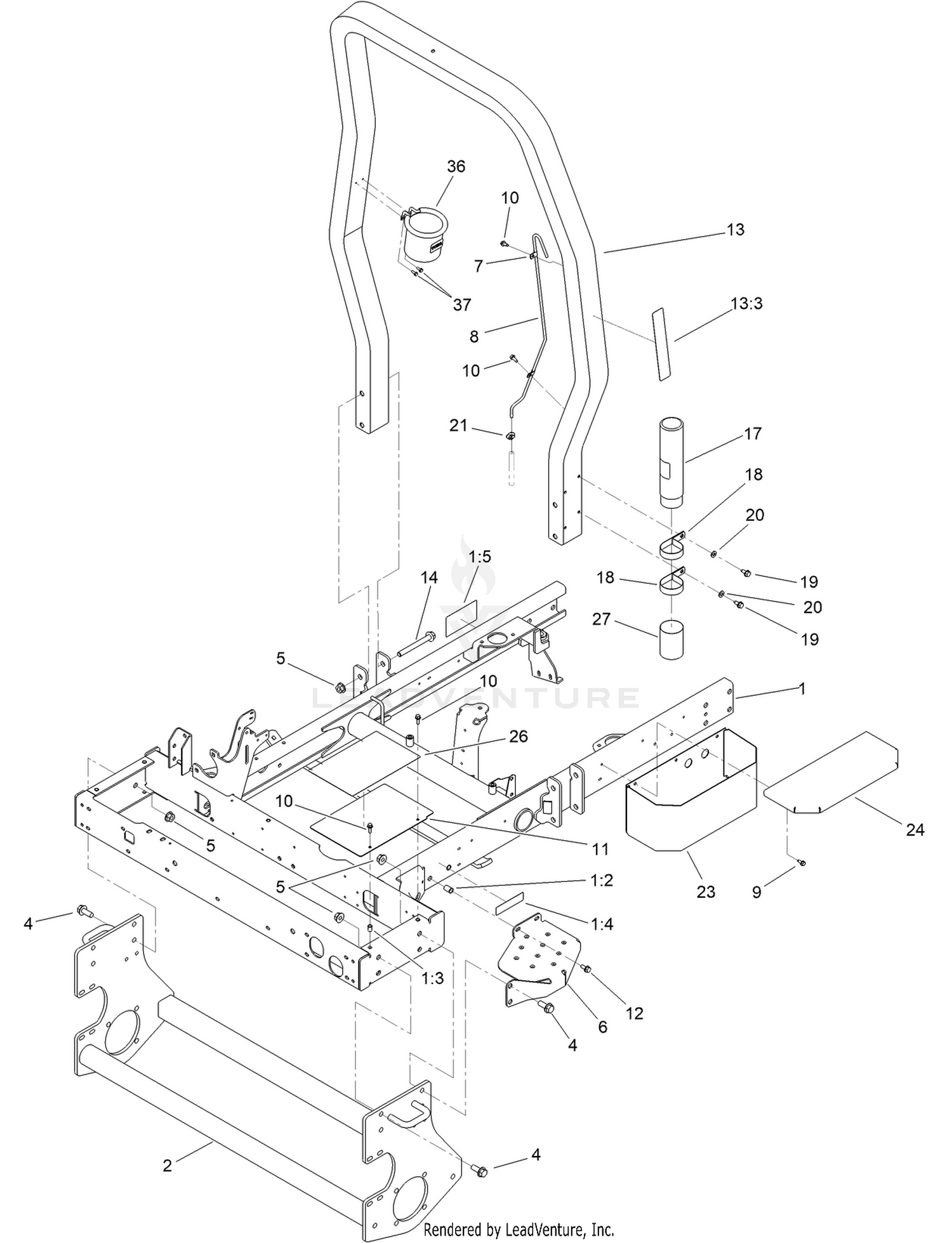

Frame and Roll-Over Protection System Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-3635 | FRAME Price: $1,768.91 |
| 2 | 95-8568-03 | FRAME-LOWER Price: $957.21 |
| 4 | 3234-38 | SCREW-HHF Price: $3.33 |
| 5 | 32128-49 | NUT-HHF Price: $1.04 |
| 6 | 99-3375-03 | STEP Price: $81.69 |
| 7 | 2412-72 | CLIP-CLOSED, INSULATED Price: $1.90 |
| 8 | 95-8615 | TUBE-BREATHER Price: $48.92 |
| 9 | 32144-10 | SCREW-HWH Price: $4.29 |
| 10 | 3234-4 | SCREW-HHF Price: $0.50 |
| 11 | 104-0468-01 | COVER-FRAME Price: $26.94 |
| 12 | 3234-5 | SCREW-HHF Price: $0.42 |
| 13 | 127-8493 | ROPS ASM Price: $740.37 |
| 14 | 117-3176 | SCREW-HHF Price: $3.73 |
| 17 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 18 | 2412-133 | CLAMP-R Price: $3.19 |
| 19 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 20 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 21 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 23 | 104-4634-03 | TOOLBOX Price: $153.88 |
| 24 | 104-4633-03 | COVER-TOOLBOX Price: $85.18 |
| 26 | 121-3623 | DECAL-DANGER Price: $10.99 |
| 27 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 36 | 161-8355 | CUP HOLDER ASM This part replaces 117-2378. Price: $12.36 |
