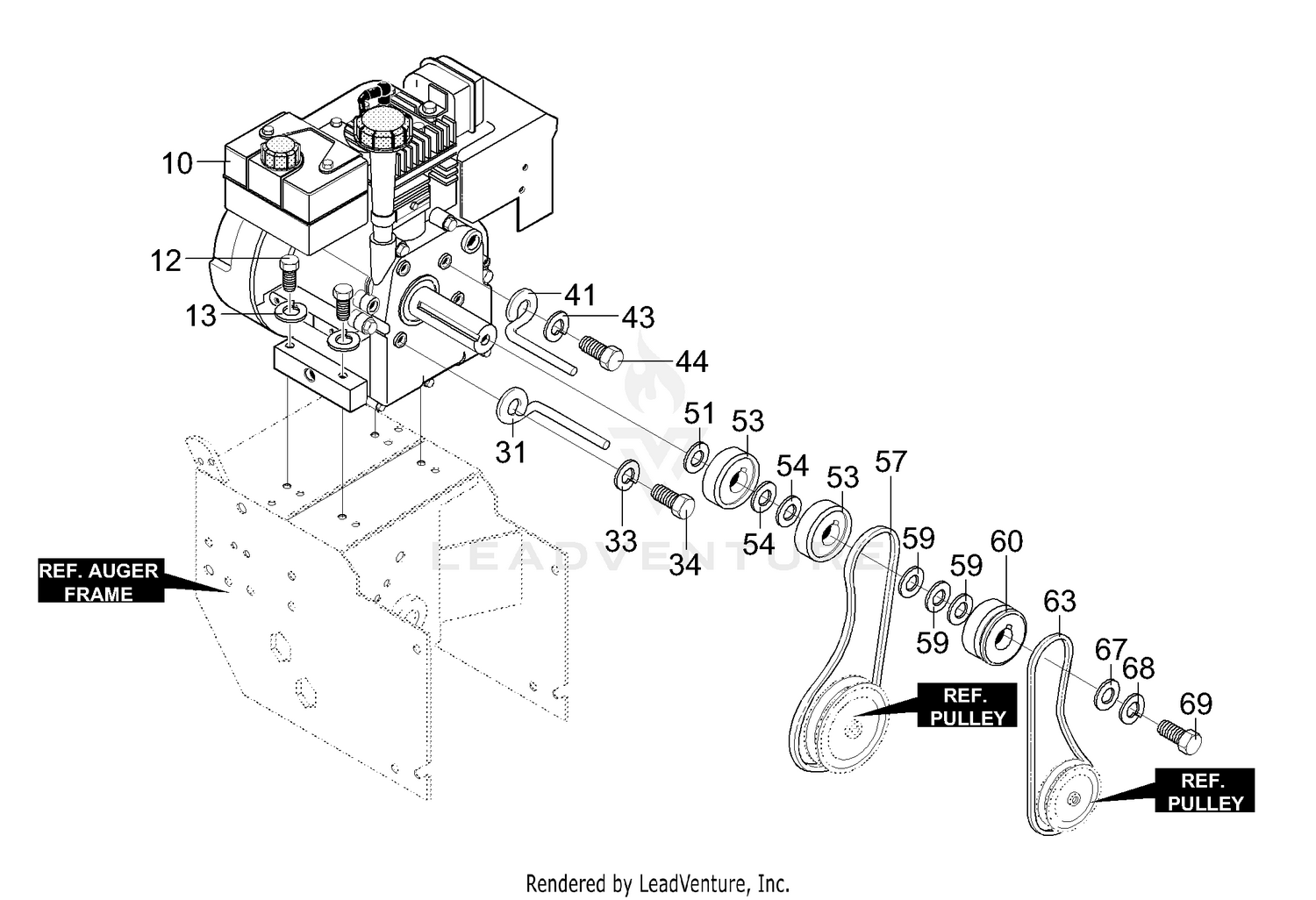

Engine
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51-7850 | NUT SET Price: $1.46 |
| 2 | 70-2800 | DISCONTINUED Price: Call Us |
| 4 | 51-7870 | SCREW SET Price: $9.86 |
| 5 | 51-7890 | SCREW SET Price: $1.90 |
| 7 | 60-5340 | BRACKET ASM Price: $321.62 |
| 8 | 70-3320 | BEARING Price: $22.73 |
| 10 | 51-7910 | ROTOR ASM Price: $389.44 |
| 11 | 51-7920 | BEARING This part replaces 60-5360. Price: $21.14 |
| 12 | 60-5380 | DISCONTINUED Price: Call Us |
| 12 | 601001592 | SCREW 5/16-18X1.50 Price: $1.99 |
| 13 | 60-5370 | RECTIFIER ASM Price: $419.50 |
| 13 | 601000023 | WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 14 | 70-2810 | SPRING Price: $1.91 |
| 15 | 51-7970 | BRUSH Price: $13.13 |
| 16 | 51-7960 | REGULATOR ASM Price: $607.91 |
| 17 | 51-7950 | DISCONTINUED Price: Call Us |
| 31 | 601001432 | BELT GUIDE Price: $4.99 |
| 33 | 601000023 | WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 34 | 601001433 | SCREW Price: $2.92 |
| 41 | 601001432 | BELT GUIDE Price: $4.99 |
| 43 | 601000023 | WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 44 | 601001433 | SCREW Price: $2.92 |
| 51 | 601001434 | WASHER Price: $7.37 |
| 53 | 601001436 | PULLEY Price: $10.99 |
| 54 | 601001435 | WASHER Price: $2.77 |
| 57 | 601001437 | BELT 1733324SM Price: $37.99 |
| 59 | 601001438 | WASHER Price: $1.73 |
| 60 | 601001593 | PULLEY, ENGINE V4L Price: $26.34 |
| 63 | 601001594 | BELT, V4L 38.2 LG AUG DRIVE Price: $44.99 |
| 67 | 601001441 | WASHER Price: $2.53 |
| 68 | 601000015 | WASHER, REGSPTLK.393X.68X Price: $1.66 |
| 69 | 601000527 | SCREW, 3/8-24X1.00 NYLHHC Price: $2.88 |
