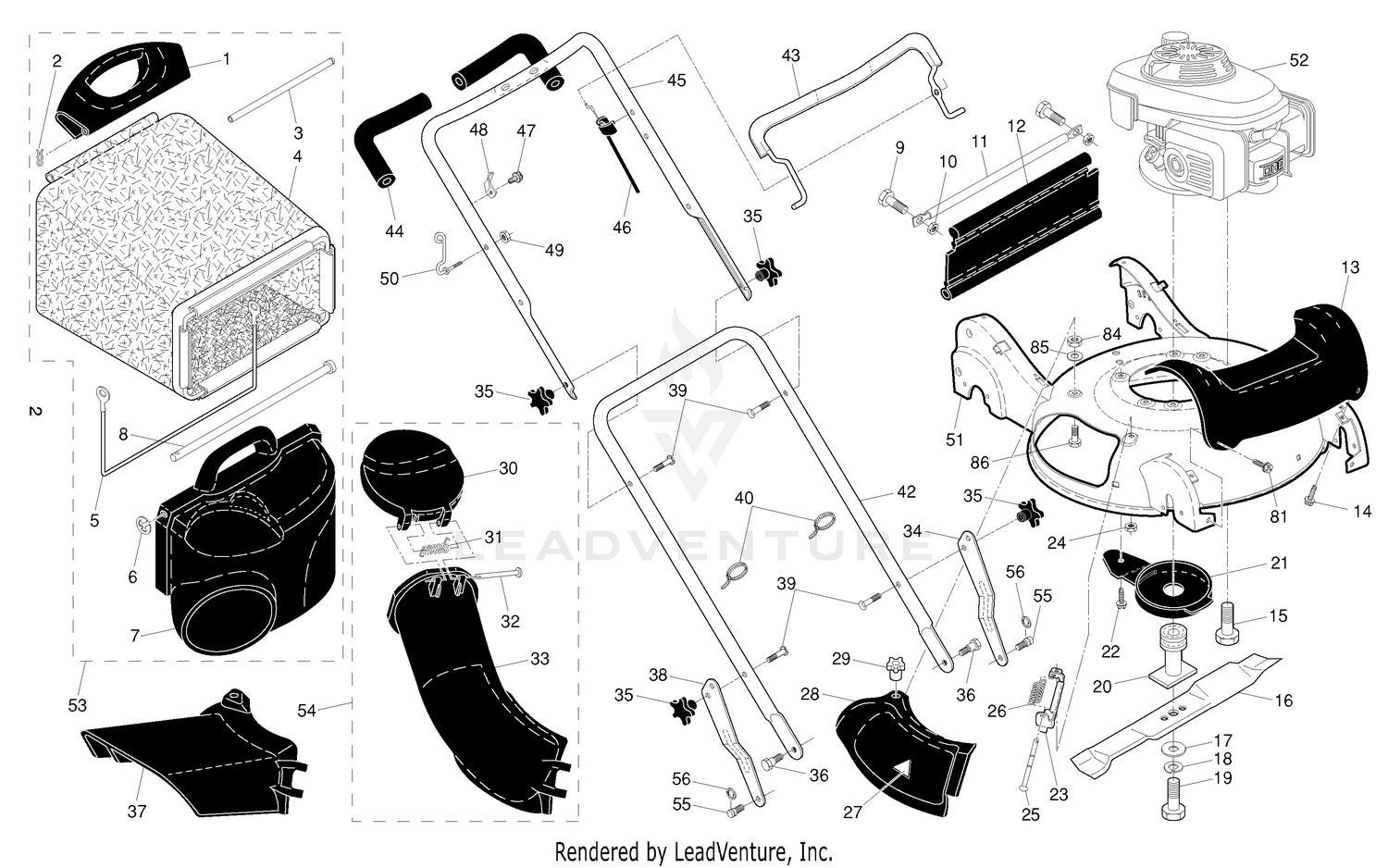

| Ref | Part Number | Description |
|---|
| 1 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 1 |
532190582 |
HANDLE.GRASSBAG.REAR.H-GRAY Price: $12.99 |
| 2 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 2 |
98-7096 |
DISCONTINUED Price: Call Us |
| 3 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 3 |
532183483 |
ROD.REAR.HANDLE.YELLOW Price: $4.99 |
| 4 |
532194736 |
GBAG.5323247.SILVER.HUSQ Price: $69.99 |
| 4 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 5 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 5 |
532188506 |
FRAME, GRASSBAG Price: $22.99 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
812000014 |
E-RING Price: $3.99 |
| 7 |
323-9 |
SCREW-HH Price: $1.29 |
| 7 |
532188498 |
DOOR.GRASSBAG.H-GRAY This part replaces 532190581. Price: $43.99 |
| 8 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 8 |
532183479 |
ROD, PIVOT Price: $12.99 |
| 9 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 9 |
872140405 |
BOLT T Price: $3.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 10 |
93-5142 |
PIN-PIVOT, AXLE Price: $238.83 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
532188359 |
TUBE.SKIRT.HV.RWGD.BLACK This part replaces 532190692. Price: $27.99 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 12 |
532190815 |
SKIRT.REAR.21".HI-VAC.BLACK This part replaces 532196474. Price: $14.99 |
| 13 |
17-6019 |
AXLE PIVOT ASM This part replaces 95-4411-03. Price: $354.34 |
| 13 |
532414958 |
COVER.FRONT.21.HV.H-GRAY Price: $19.99 |
| 14 |
532199422 |
SCREW, HEX WASHER HEAD Price: $3.99 |
| 14 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 15 |
104-0193 |
TIE ROD ASM This part replaces 104-0100-03. Price: $539.80 |
| 15 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 16 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 18 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 18 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 19 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 19 |
532191760 |
BOLT.HD.HEAD.3/8-24X2.50 (2 2) Price: $4.99 |
| 20 |
32136-13 |
NUT-SHH Price: $2.85 |
| 20 |
532186766 |
ADAPTER.BLADE Price: $32.99 |
| 21 |
532188510 |
SHIELD.DEBRIS.21.HV.RWGD.BLACK This part replaces 532190516. Price: $9.99 |
| 21 |
95-2647 |
SEAL-HUB Price: $32.24 |
| 22 |
254-92 |
CONE-BEARING, OUTER This part replaces 95-2646. Price: $15.84 |
| 22 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 23 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 23 |
532183609 |
BRACKET.ASM.HINGE Price: $4.99 |
| 24 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 24 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 25 |
3220-7 |
NUT-JAM Price: $4.09 |
| 25 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 26 |
532183446 |
SPRING.MULCH.DOOR Price: $4.99 |
| 26 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 28 |
532188507 |
DOOR.MULCH This part replaces 532190515. Price: $9.99 |
| 28 |
74-5560 |
TIRE (20X8-10) 6-PLY Price: $118.04 |
| 28 |
95-2625 |
TIRE (18X8.5-10) 4-PLY Price: $104.27 |
| 29 |
532183447 |
KNOB.MULCH.DOOR Price: $4.99 |
| 30 |
100-1357 |
RIM Price: $215.78 |
| 30 |
217-122 |
DISCONTINUED Price: Call Us |
| 30 |
532190580 |
CHUTE.DOOR.21.HV.H-GRAY Price: $14.99 |
| 31 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 31 |
532183478 |
SPRING Price: $6.99 |
| 32 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 32 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 33 |
21-2820 |
HUB Price: $269.34 |
| 33 |
532188504 |
DISCHARGE CHUTE, PLASTIC This part replaces 532190578. Price: $27.99 |
| 34 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 34 |
532187063 |
BRKT.ADJ.LOWER.HDL.LH This part replaces 532187425. Price: $8.99 |
| 35 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 35 |
98-7095 |
LH SPINDLE KIT Price: $939.33 |
| 36 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 36 |
532194187 |
SCREW.5/16X.680.TRIM.H Price: $5.99 |
| 37 |
532185996 |
GUARD.CLIP.ON.21.HV.GRAY Price: $21.99 |
| 37 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 38 |
532187064 |
BRACKET.ADJ.LOWER.HDL.RH.BLACK This part replaces 532187426. Price: $8.99 |
| 38 |
93-5503 |
PIN-PIVOT, SPINDLE Price: $108.53 |
| 39 |
104-0191 |
STEERING CYLINDER ASM This part replaces 93-5502. Price: $814.09 |
| 39 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 40 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 40 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 41 |
108-1340-03 |
ROD END-BALL JOINT This part replaces 92-5072. Price: $163.94 |
| 42 |
3210-7 |
SCREW-HH Price: $0.61 |
| 42 |
532187096 |
HANDLE.LOWER.GREY Price: $27.99 |
| 43 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 43 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 44 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 44 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 45 |
33026-00 |
NUT-HEX Price: $1.02 |
| 46 |
532427497 |
CABLE.MZR.50.SNAP-IN Price: $12.99 |
| 46 |
93-5121-03 |
AXLE-REAR ASM Price: $930.14 |
| 47 |
33115-040 |
SCREW-HH Price: $1.22 |
| 47 |
532750634 |
SCREW Price: $2.99 |
| 48 |
104-0101-03 |
TUBE & CLAMP ASM Price: $264.08 |
| 48 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 49 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 49 |
93-5983-03 |
PLATE-WEIGHT Price: $109.56 |
| 50 |
33106-060 |
SCREW-HHF Price: $9.91 |
| 50 |
532188501 |
GUIDE.ROPE.WALK.MOWER Price: $12.99 |
| 51 |
532430883 |
HOUSING.21.HV.RWD.WO.AW.ORANGE Price: $184.99 |
| 53 |
532194736 |
GBAG.5323247.SILVER.HUSQ Price: $69.99 |
| 54 |
532189014 |
CHUTE.LOWER.ASM.WALK.MOWER Price: $32.99 |
| 55 |
532194192 |
STUD.SHOULDER.T45.BZP Price: $4.99 |
| 56 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 81 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 84 |
596041001 |
Hardware This part replaces 532400100. Price: $2.99 |
| 85 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 86 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 Price: $3.99 |
