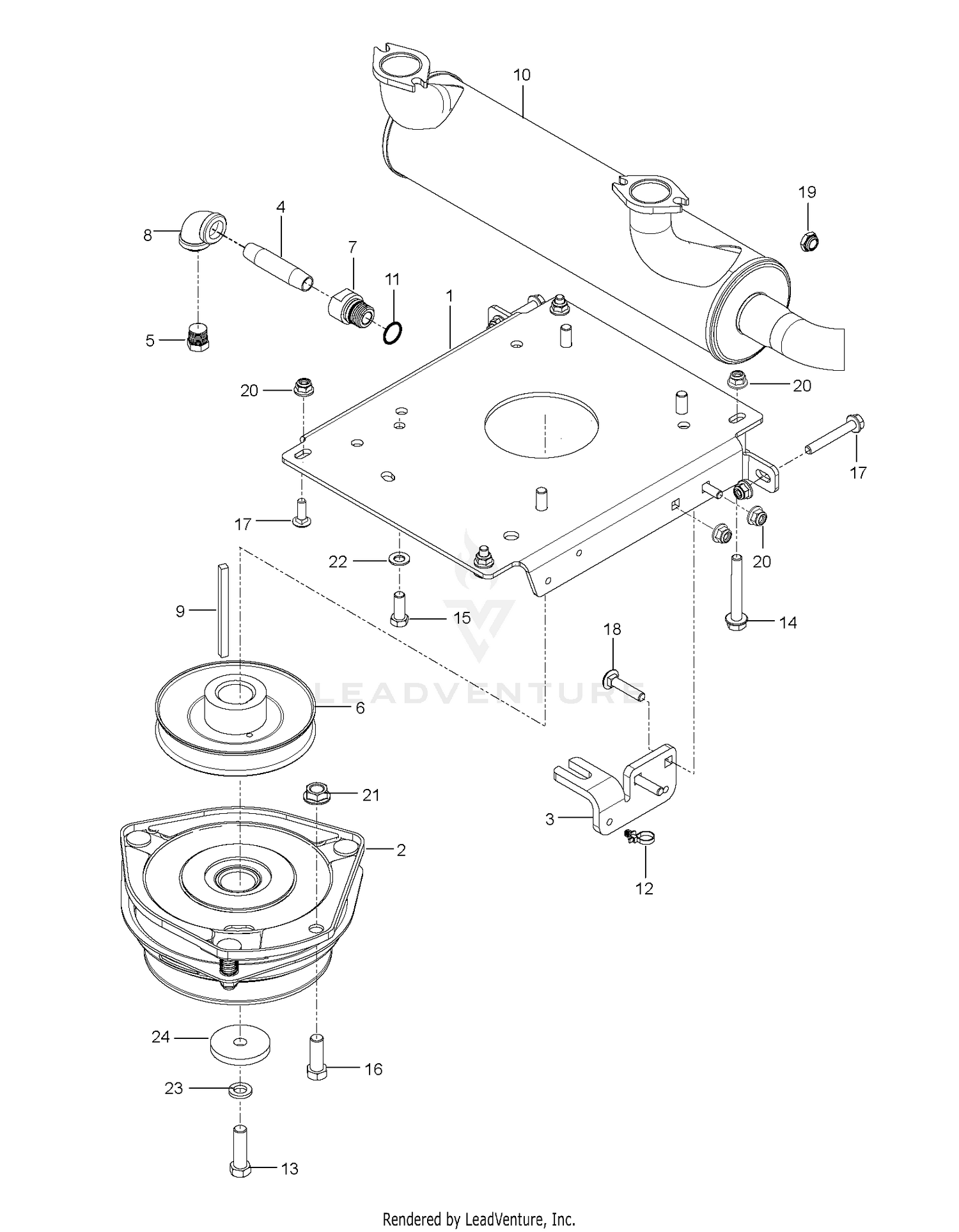

| Ref | Part Number | Description |
|---|
| 1 |
582733302 |
PLATE.PNT.ENGINE.PZ/PZT.EDIP Price: $59.99 |
| 2 |
525749501 |
CLUTCH, GT3.5 Price: $599.99 |
| 3 |
597180803 |
Stop This part replaces 522676702. Price: $11.99 |
| 4 |
539118911 |
PIPE NIPPLE 3/8 X 3 Price: $5.99 |
| 5 |
522837001 |
PLUG, DRAIN 3/8 NPTF Price: $2.99 |
| 6 |
510019801 |
PULLEY, ENGINE Price: $49.99 |
| 7 |
539119680 |
ADAPTER, OIL DRAIN Price: $17.99 |
| 9 |
525749901 |
KEY, 1/4 SQ X 3.5 Price: $3.99 |
| 10 |
525750301 |
MUFFLER, 29HP KAW FX751V-850V Price: $329.99 |
| 10 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 11 |
539109618 |
O-RING Price: $3.99 |
| 12 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 13 |
581332805 |
Bolts This part replaces 581332801. Price: $2.99 |
| 14 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 15 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 16 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 17 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 18 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 20 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 21 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 22 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 23 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 24 |
539125626 |
BLADE WASHER Price: $6.99 |
| 30 |
105-3747 |
PLUG Price: $3.62 |
| 40 |
99-3583 |
GASKET Price: $1.92 |
| 50 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 60 |
98-7692 |
BOLT Price: $0.92 |
| 70 |
98-9356 |
BOLT Price: $2.06 |
| 80 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 90 |
125-9078 |
CLAMP-HOSE Price: $4.06 |
| 100 |
100-1983 |
THERMO-SWITCH Price: $148.39 |
| 110 |
130-1377 |
ADAPTER-THERMOSWITCH Price: $13.49 |
| 120 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 130 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 140 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
