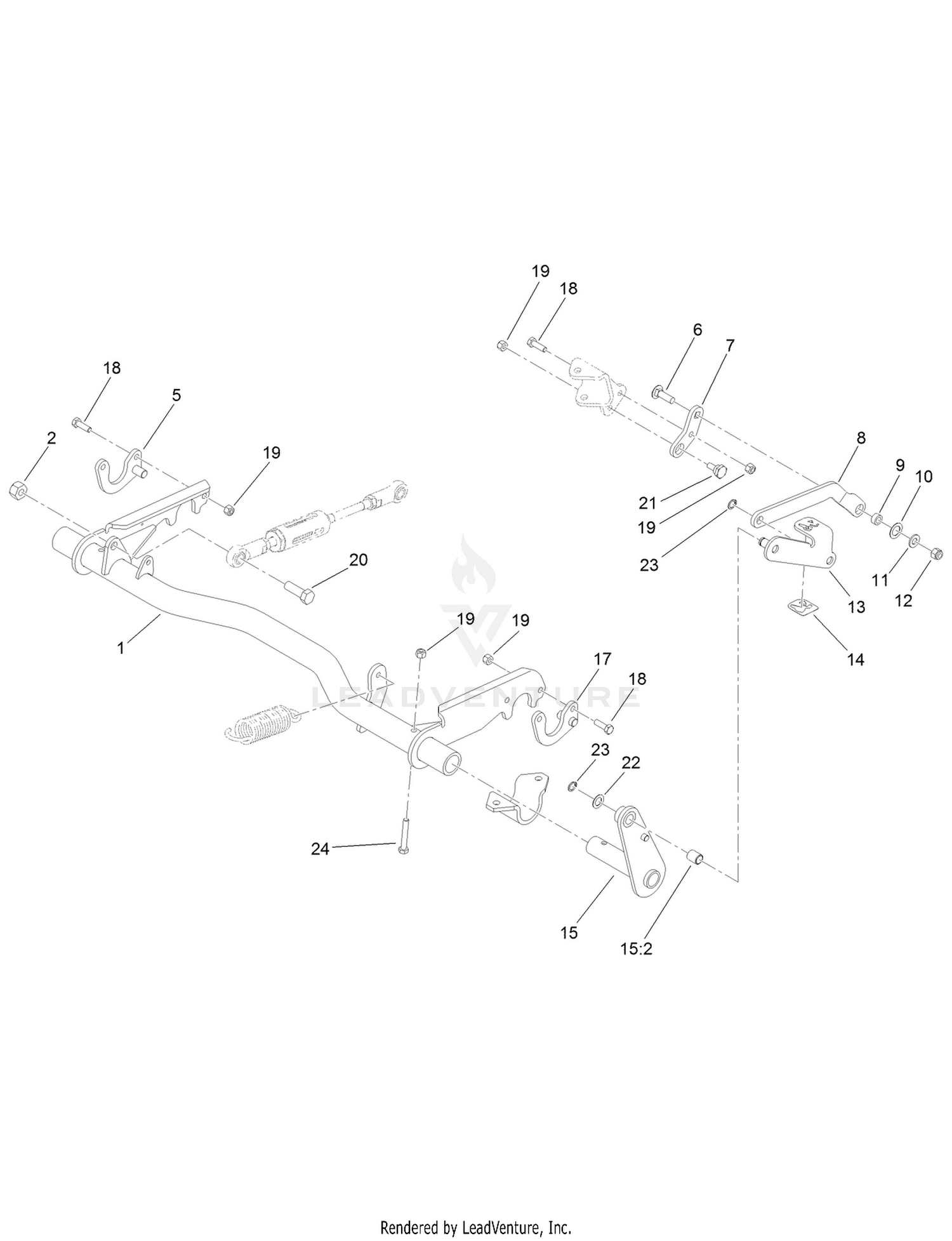

| Ref | Part Number | Description |
|---|
| 1 |
144-1372-01 |
FRAME-CARRIER Price: $344.25 |
| 2 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 5 |
108-4528 |
RH SADDLE ASM Price: $64.07 |
| 6 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 7 |
112-7150 |
TAB-PIVOT Price: $13.94 |
| 8 |
112-6487-03 |
LINK-TOOLBAR Price: $34.02 |
| 9 |
114127 |
SPACER Price: $7.99 |
| 10 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 13 |
112-6490 |
LEVER ASM Price: $104.62 |
| 14 |
112-7145 |
PAD-PEDAL, FOOT Price: $2.84 |
| 15 |
140-6195 |
LEVER ASM This part replaces 112-6474. Price: $157.88 |
| 17 |
108-4530 |
LH SADDLE ASM Price: $69.85 |
| 18 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
325-6 |
SCREW-HH Price: $1.42 |
| 21 |
112-7152 |
BOLT-ECCENTRIC Price: $54.07 |
| 22 |
98-1629 |
WASHER Price: $0.89 |
| 23 |
32151-61 |
RING-RETAINING Price: $2.39 |
