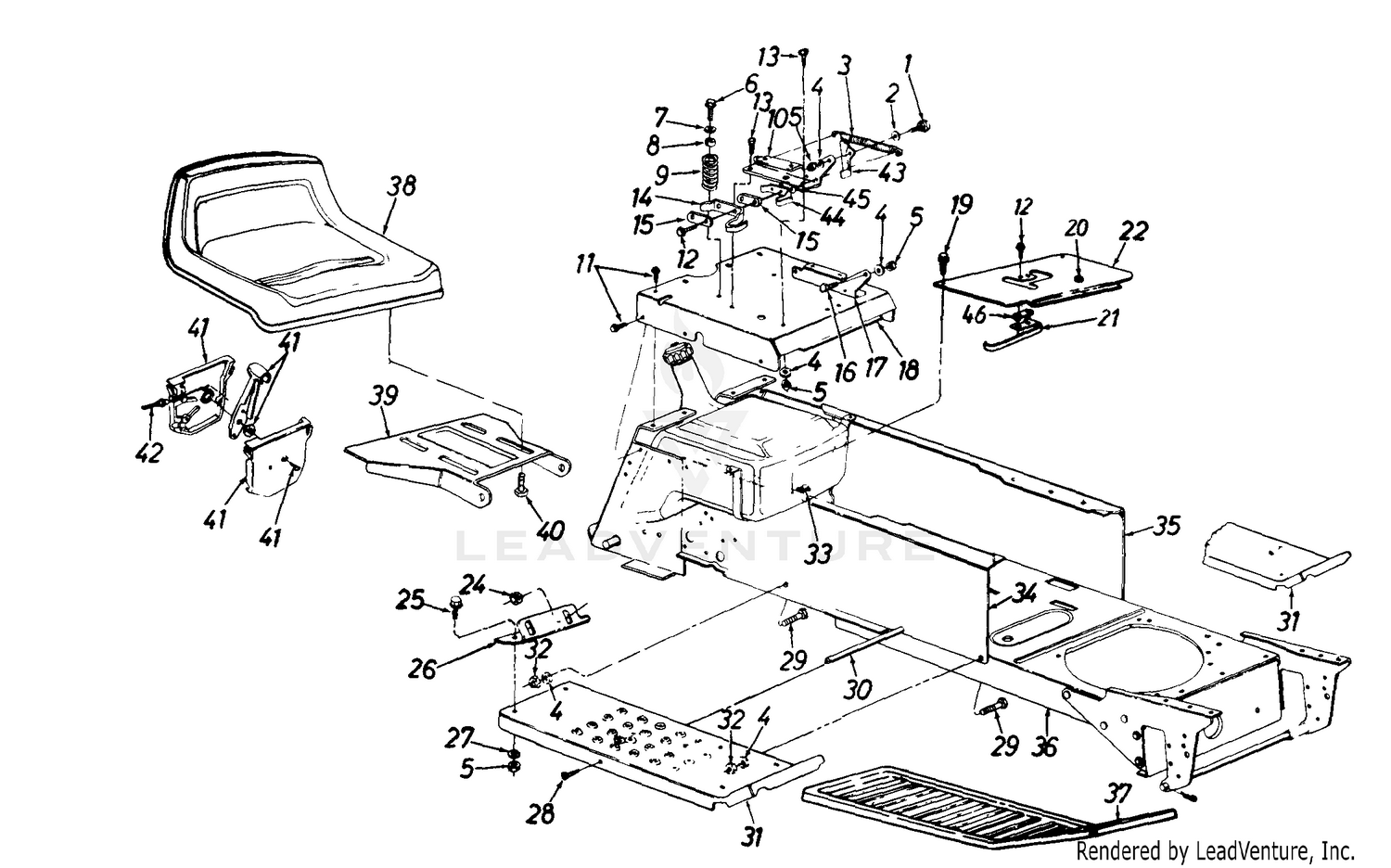

| Ref | Part Number | Description |
|---|
| 1 |
738-0296 |
Shld. Bolt .437" Dia. x .162" Price: $3.93 |
| 2 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 3 |
932-0581B |
Extension Spring This part replaces 732-0581B. Price: $12.55 |
| 6 |
710-0650 |
Hex Wash. Hd. Tap Scr. 5/16-18 x .7" Lg. Price: $3.71 |
| 7 |
736-0159 |
Fl-Wash. .344" I.D. Price: $3.71 |
| 8 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 9 |
732-0588 |
COMPRESSION SPRING Not Available Price: |
| 10 |
17702-0637 |
BRACKET-SEAT SUP-R Not Available This part replaces 17702. Price: |
| 11 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 12 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg. Price: $3.90 |
| 13 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr .5/16 x .75 Lg. This part replaces 710-1228. Price: $3.82 |
| 14 |
925-1303 |
Outer Seat Spring Switch This part replaces 725-1303. Price: $5.58 |
| 15 |
726-0279 |
Insulator Plate Price: $3.22 |
| 16 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 17 |
17701-0637 |
BRACKET-SEAT SUP-L Not Available This part replaces 17701. Price: |
| 19 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
| 20 |
731-0405 |
BUSHING Not Available Price: |
| 21 |
725-1643 |
Reverse Safety Switch Price: $8.98 |
| 22 |
783-0245A |
SHIFT COVER Not Available Price: |
| 24 |
712-0271 |
Hex Sems Nut 1/4-20 Price: $3.78 |
| 25 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 26 |
15846 |
BRACKET-FENDER (RH) Not Available Price: |
| 27 |
736-0242 |
Bell-Wash .345" I.D. x .88" O.D. Price: $3.75 |
| 28 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 29 |
710-1012 |
Rib Neck Bolt 5/16-24 x .75" Lg. Price: $3.94 |
| 30 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 31 |
16922 |
RUNNING BOARD (RH) Not Available Price: |
| 32 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 33 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 34 |
17360B |
R.H. SIDE FRAME Not Available Price: |
| 35 |
17361C |
L.H. SIDE FRAME Not Available Price: |
| 36 |
17359B |
LOWER FRAME Not Available Price: |
| 38 |
957-0378 |
LOW BACK SEAT BLACK W/SWITCH Not Available This part replaces 757-0345. Price: |
| 39 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 783-0039. Price: |
| 40 |
710-0870 |
Hex Tap Scr. 3/8-16 x .62" Lg. Price: $5.44 |
| 41 |
831-0823A |
Throttle Control Box Ass'y. Price: $30.59 |
| 42 |
946-0634 |
Throttle Wire This part replaces 746-0634. Price: $10.24 |
| 43 |
17239C |
BRACKET-SEAT LIFT Not Available This part replaces 17239A. Price: |
| 44 |
725-1439 |
Seat Spring Switch Price: $7.18 |
| 45 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 15847 |
Fender |
Bracket - L.H. Price: Call Us 15847 |
| 16921 |
RUNNING |
BOARD (LH) Not Available Price: 16921 |
