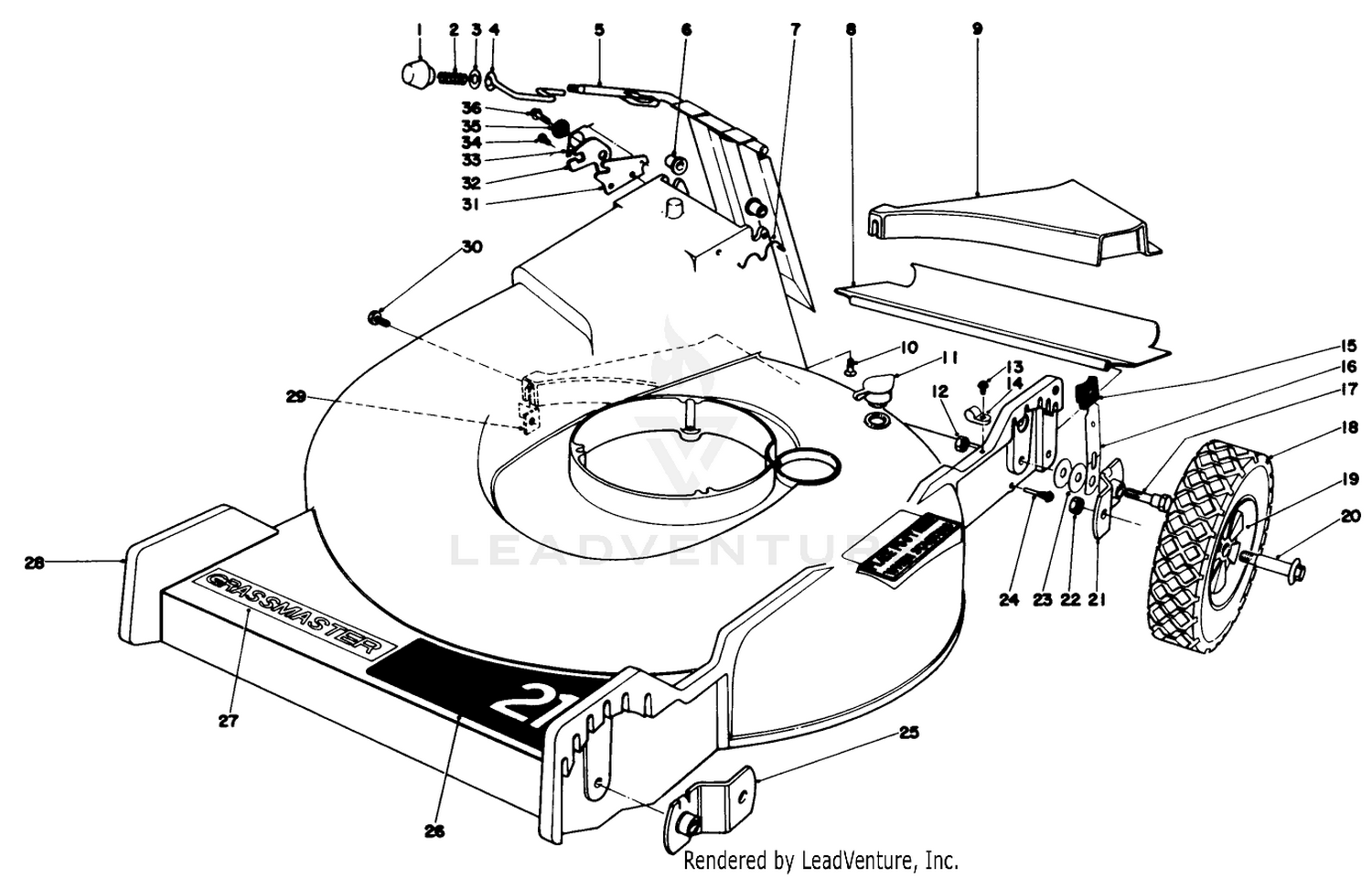

| Ref | Part Number | Description |
|---|
| 1 |
233-37 |
KNOB Price: $31.99 |
| 2 |
23-0920 |
COMPRESSION SPRING Price: $5.79 |
| 3 |
23-1120 |
WASHER Price: $16.99 |
| 4 |
23-0940 |
DOOR LATCH Price: Call Us |
| 5 |
27-7910 |
Door Handle Price: Call Us |
| 6 |
23-0880 |
BUSHING-NYLON Price: Call Us |
| 7 |
33-4830 |
DOOR RETAINER This part replaces 23-0200. Price: $42.71 |
| 8 |
23-0560 |
REAR SAFETY SHIELD Price: Call Us |
| 9 |
23-0360 |
REAR INSERT Price: Call Us |
| 10 |
32144-17 |
SCREW-HH Price: $3.74 |
| 11 |
6-4500 |
WASHOUT PLUG Price: $6.61 |
| 12 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 13 |
12-5450 |
SCREW Price: $7.99 |
| 14 |
2412-51 |
CABLE CLAMP Price: Call Us |
| 15 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 16 |
25-8000 |
SPRING ARM ASM Price: $40.81 |
| 17 |
25-3440 |
PIVOT SCREW Price: $11.63 |
| 18 |
5-3543 |
TIRE Price: $35.14 |
| 19 |
27-6200 |
WHEEL TIRE ASM 8 IN Price: $40.32 |
| 20 |
27-6230 |
BOLT-WHEEL Price: $5.35 |
| 21 |
24-7710 |
PIVOT ARM ASM A Price: $86.12 |
| 22 |
3296-6 |
NUT-LOCK This part replaces 32146-6. Price: $1.49 |
| 23 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 24 |
8-6160 |
SAFTEY SHIELD SCREW Price: Call Us |
| 25 |
23-9120 |
PIVOT ARM ASM B Price: $52.31 |
| 26 |
23-0870 |
Decal Price: Call Us |
| 27 |
23-0930 |
Decal Grassmaster Price: Call Us |
| 28 |
6-7509 |
Housing Price: Call Us |
| 29 |
26-0660 |
SPECIAL NUT Price: Call Us |
| 30 |
32104-114 |
SCREW THD 1/4 20 5/8 Price: $5.17 |
| 31 |
23-1040 |
DOOR LATCH PLATE Price: $16.08 |
| 32 |
23-1190 |
Latch Safety Price: Call Us |
| 33 |
23-1200 |
TORSION SPRING Price: Call Us |
| 34 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 35 |
23-1180 |
Latch Spacer Price: Call Us |
| 36 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
