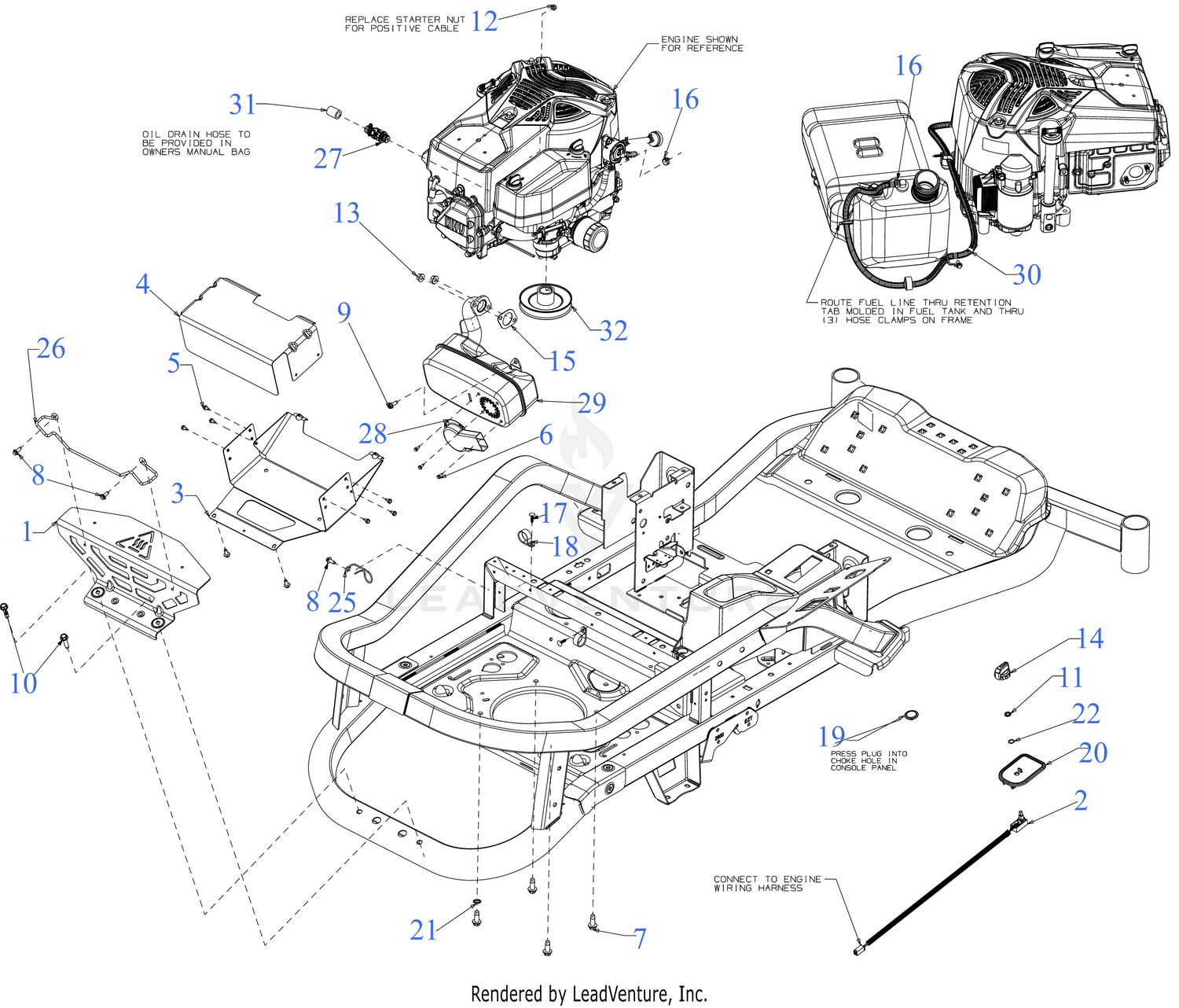

| Ref | Part Number | Description |
|---|
| 2 |
625P08610 |
POTENTIOMETER Price: $86.78 |
| 3 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 4 |
703-29029 |
MUFFLER SHIELD (TOP) Price: $34.97 |
| 5 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 6 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 7 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 8 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 9 |
710-0642 |
SCREW 1/4-20 x .750 Price: $4.05 |
| 10 |
710-0817 |
SCREW 5/16-18 x 1.25 Price: $5.77 |
| 11 |
712-06321 |
HEX JAM NUT 3/8-32 GR5 Price: $2.33 |
| 12 |
712-0691 |
HEX NUT Price: $6.13 |
| 13 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 14 |
720-05621 |
CONTROL KNOB Price: $13.32 |
| 15 |
921-04744 |
EXHAUST GASKET Price: $6.13 |
| 16 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 17 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 18 |
726-04119 |
DRAIN HOSE CLAMP Price: $2.83 |
| 19 |
731-09956 |
CHOKE PLUG Price: $4.59 |
| 20 |
731-25311 |
DASH COVER PLATE Price: $13.12 |
| 21 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 22 |
736-06023 |
INTERNAL TOOTH LOCK WASHER 3/8 Price: $2.33 |
| 25 |
747-10050 |
HOSE GUIDE Price: $4.08 |
| 26 |
747-11836 |
MUFFLER GUARD ROD Price: $16.95 |
| 27 |
951-10517A |
OIL DRAIN VALVE Price: $22.67 |
| 28 |
751-11053B |
EXHAUST DELECTOR (LONG) Price: $4.64 |
| 29 |
951-14585D |
MUFFLER (SINGLE W/O DEFLECTOR) Price: $79.49 |
| 30 |
751-22813-24 |
FUEL HOSE 1/4-24" Price: $27.48 |
| 31 |
751-3141-14 |
DRAIN HOSE 14'' Price: $10.40 |
| 32 |
756-04494C |
TRANSMISSION DRIVE PULLEY Price: $30.97 |
