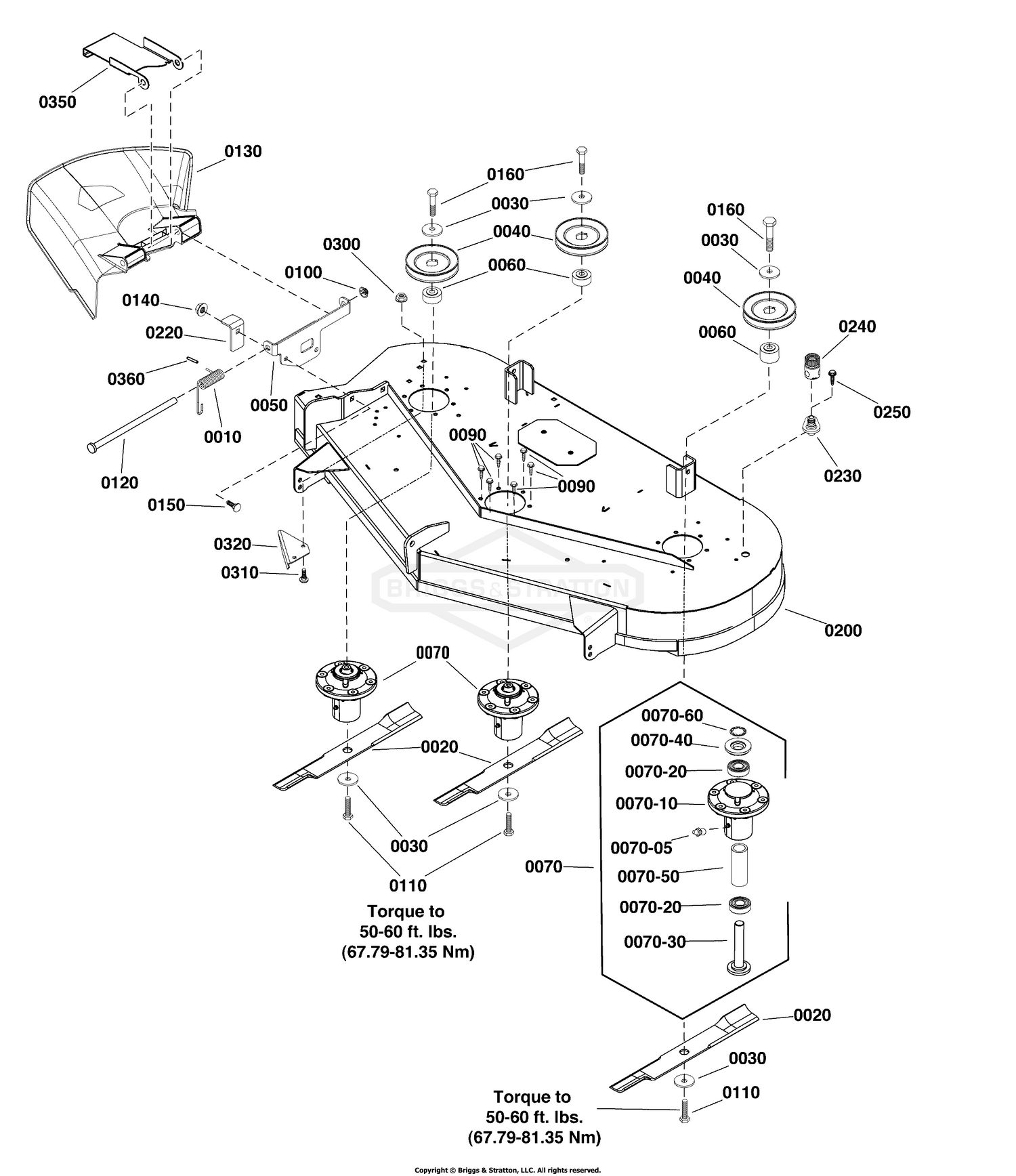

| Ref | Part Number | Description |
|---|
| 0010 |
7035813SM |
SPRING, TORSION, SIDE Price: $22.45 |
| 0020 |
1759055YP |
BLADE, 48" (122cm) Price: $24.79 |
| 0030 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0040 |
1732951SM |
PULLEY-04.60 OD 1.000 Price: $18.18 |
| 0050 |
1758982AYP |
BRACKET, DEFLECTOR This part replaces 1758982BMYP. Price: $37.82 |
| 0060 |
706362 |
SPACER, HUB Price: $8.91 |
| 0070 |
84003173 |
ARBOR ASSEMBLY Price: $89.58 |
| 0090 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0100 |
703179 |
PUSHNUT, CAP TYPE Price: $3.17 |
| 0110 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0120 |
7104640YP |
ROD, Deflector Price: $26.08 |
| 0130 |
7104733YP |
CHUTE, SIDE DISCHARGE Price: $81.65 |
| 0140 |
5025128SM |
NUT, 3/8-16 HEX SERRA Price: $2.97 |
| 0150 |
703815 |
BOLT, RD SQ 3/8-16X1 Price: $3.72 |
| 0160 |
1921212SM |
CAPSCREW, Hex Head, 7/16-14 X 1 1/2 Price: $3.85 |
| 0200 |
1687854YP |
KIT-MOWER DECK Price: $1,471.83 |
| 0220 |
1758593BMYP |
PROP, DEFLECTOR Price: $16.98 |
| 0230 |
1756247YP |
ADAPTER, Washout Port Price: $5.78 |
| 0240 |
1756246YP |
CONNECTOR, Washout Port Price: $14.39 |
| 0250 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0300 |
703115 |
NUT Price: $3.06 |
| 0310 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0320 |
706368 |
BAFFLE, Pinchoff Price: $99.80 |
| 0350 |
1759986BMYP |
SUPPORT, Deflector Price: $23.56 |
