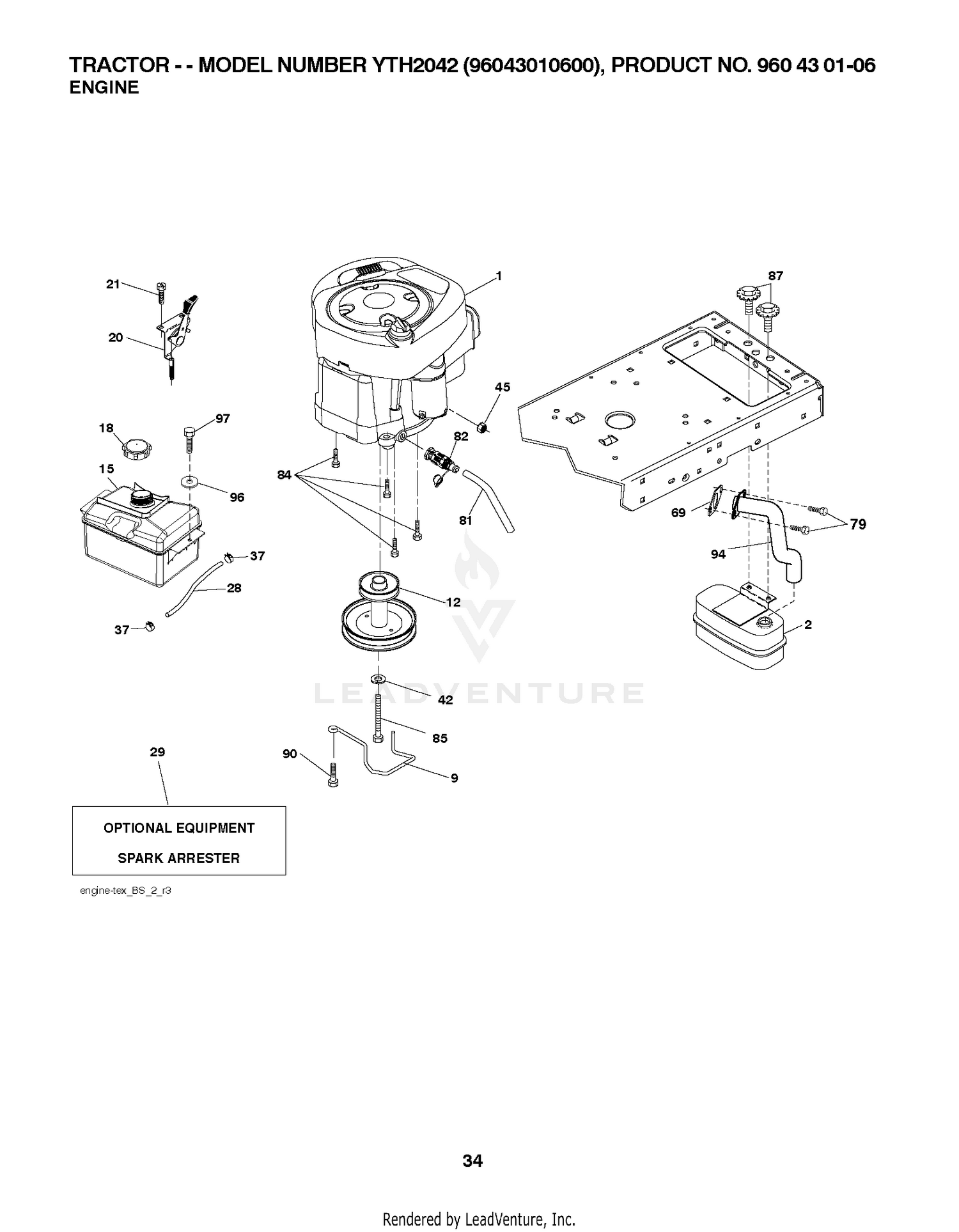

| Ref | Part Number | Description |
|---|
| 1 |
125-7091 |
CRANKSHAFT ASM Price: $2,915.83 |
| 2 |
125-6995 |
PIN Price: $5.45 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 4 |
125-6937 |
GEAR Price: $205.45 |
| 5 |
125-7185 |
KEY Price: $2.16 |
| 7 |
125-7182 |
PIN-SPRING Price: $3.77 |
| 8 |
125-6925 |
V-PULLEY Price: $255.74 |
| 9 |
125-7109 |
WASHER Price: $19.67 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
125-6956 |
BOLT Price: $40.22 |
| 11 |
125-6951 |
BOLT Price: $6.77 |
| 12 |
125-7172 |
FLYWHEEL ASM Price: $1,543.11 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 14 |
125-6943 |
GEAR Price: $137.73 |
| 15 |
125-7072 |
PISTON ASM Price: $182.26 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 17 |
125-6983 |
PISTON RING SET Price: $84.29 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
125-7030 |
PIN Price: $43.23 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
125-7180 |
RING Price: $2.39 |
| 23 |
125-7242 |
CONNECTING ROD ASM Price: $467.89 |
| 26 |
125-6955 |
BOLT Price: $20.62 |
| 27 |
125-7018 |
PIN-CRANK Price: $20.94 |
| 29 |
125-6997 |
PIN-PISTON Price: $21.73 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-7019 |
PIN-CRANK (.25) Price: $20.96 |
| 32 |
125-7073 |
PISTON ASM (0.25 OS) Price: $228.05 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
