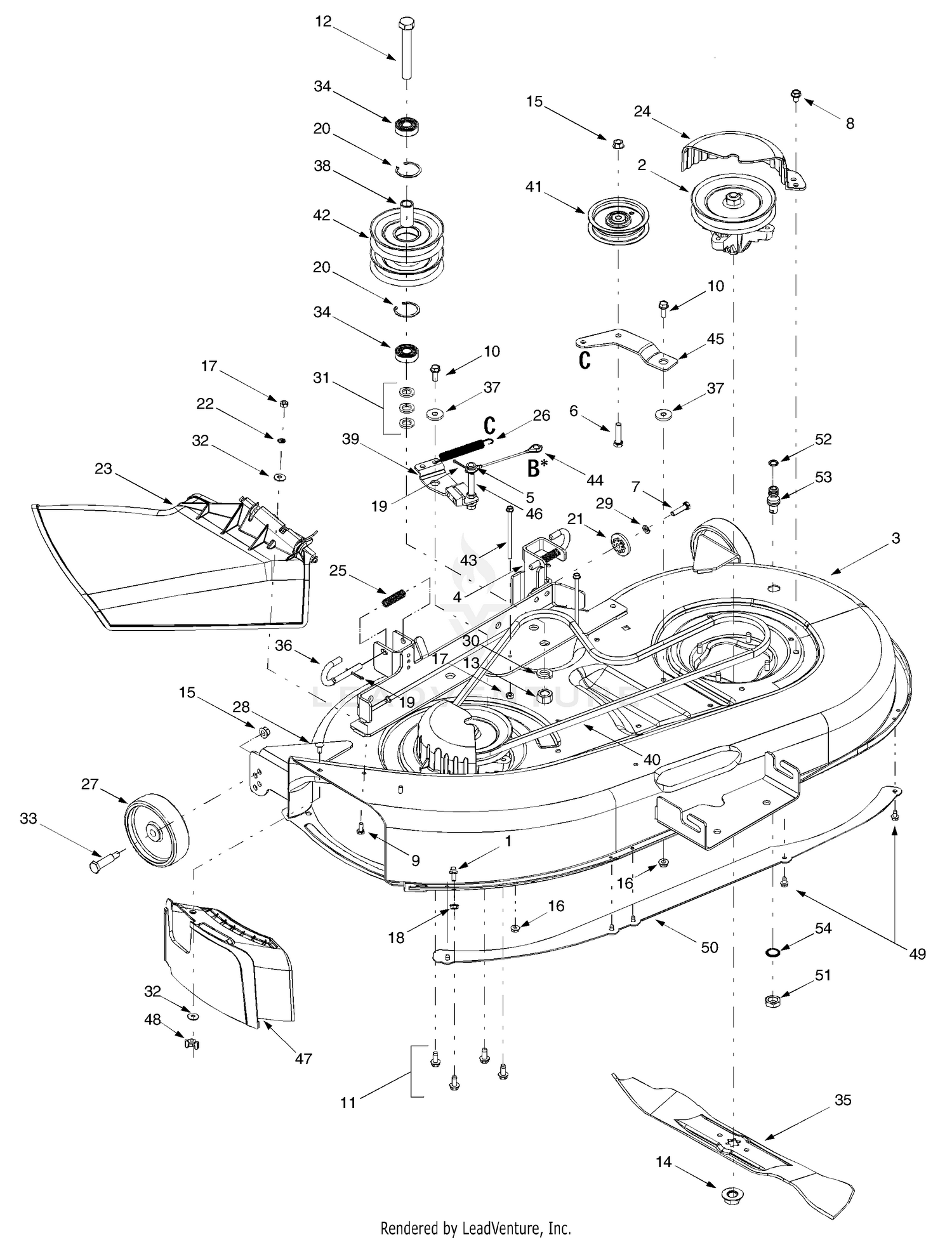

| Ref | Part Number | Description |
|---|
| 1 |
911-04069 |
Grass-catcher Pin This part replaces 711-04069. Price: $7.81 |
| 2 |
918-0574C |
SPINDLE ASSEMBLY Not Available This part replaces 618-0574. Price: |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254. Price: |
| 5 |
736-0140 |
Flat Washer, .385 x .62 x .063 Price: $6.20 |
| 6 |
710-0520 |
Hex Cap Screw, 1/4-20 x 1.5 Price: $3.93 |
| 7 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 8 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 9 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 10 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 11 |
710-0650 |
Self-tapping Screw, 5/16-18 x .875 Price: $3.71 |
| 12 |
710-3151 |
Hex Cap Screw, 5/8-18 x .875 Price: $18.89 |
| 13 |
712-0337 |
HEX NUT 5/8-18 Not Available Price: |
| 14 |
712-0417A |
HEX NUT Price: $6.50 |
| 15 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 16 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 17 |
712-3006 |
HEX NUT Price: $4.05 |
| 18 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 19 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 20 |
916-3020 |
Ring, Ret, Int This part replaces 7163020. Price: $4.42 |
| 21 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553B. Price: $11.45 |
| 22 |
726-0233 |
Push Nut. .25 x .5 Price: $3.93 |
| 23 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 24 |
731-2486A |
Belt Cover This part replaces 731-2486. Price: $19.61 |
| 25 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 26 |
932-0470A |
Extension Spring, .53 x 4.75 This part replaces 732-0470A. Price: $9.14 |
| 27 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 28 |
710-0134 |
Carriage Screw, 1/4-20 x .5 Price: $3.71 |
| 29 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 30 |
736-0158 |
Lock Washer, 5/8 Price: $3.90 |
| 31 |
736-0162 |
Flat Washer, .64 x 1.0 x .12 Price: $3.86 |
| 32 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 33 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 34 |
941-0524A |
Bearing, Ball, .625 x 40 x 12 This part replaces 7410524. Price: $20.36 |
| 35 |
942-0616A |
Blades This part replaces 742-0616A. Price: $29.15 |
| 36 |
747-1116 |
Deck Release Pin Price: $11.17 |
| 37 |
948-0331 |
SPACER Not Available This part replaces 748-0331. Price: |
| 38 |
950-0932A |
Spacer 5/8" I.D. x 7/8" O.D. This part replaces 750-0932A. Price: $18.32 |
| 39 |
683-0440 |
Deck Brake Assembly Not Available Price: |
| 40 |
954-0498 |
V-Belt This part replaces 754-0498. Price: $40.96 |
| 41 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 756-0627B. Price: $28.58 |
| 42 |
756-1202 |
Double Pulley, 5.0 Price: $89.02 |
| 43 |
710-1830 |
Self-tapping Screw, 1/4-20 x 4.0 Price: $7.03 |
| 44 |
746-0970 |
Brake Cable, 5.05 Price: $11.72 |
| 45 |
783-1291A-0637 |
IDLER BRACKET This part replaces 783-1291. Price: $11.65 |
| 46 |
711-1534 |
Pin, 3/8-16, 3/8 x 3.27 Price: $10.99 |
| 47 |
731-2363 |
Mulch Plug Price: $25.67 |
| 48 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 49 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 51 |
712-0641 |
Hex Nut, M-16 x 1.5 Price: $5.58 |
| 52 |
921-0417 |
O-RING SEAL 16MM OD x 11MM ID Not Available This part replaces 721-0417. Price: |
| 53 |
737-04003D |
DECK WASH NOZZLE This part replaces 737-04003. Price: $20.69 |
