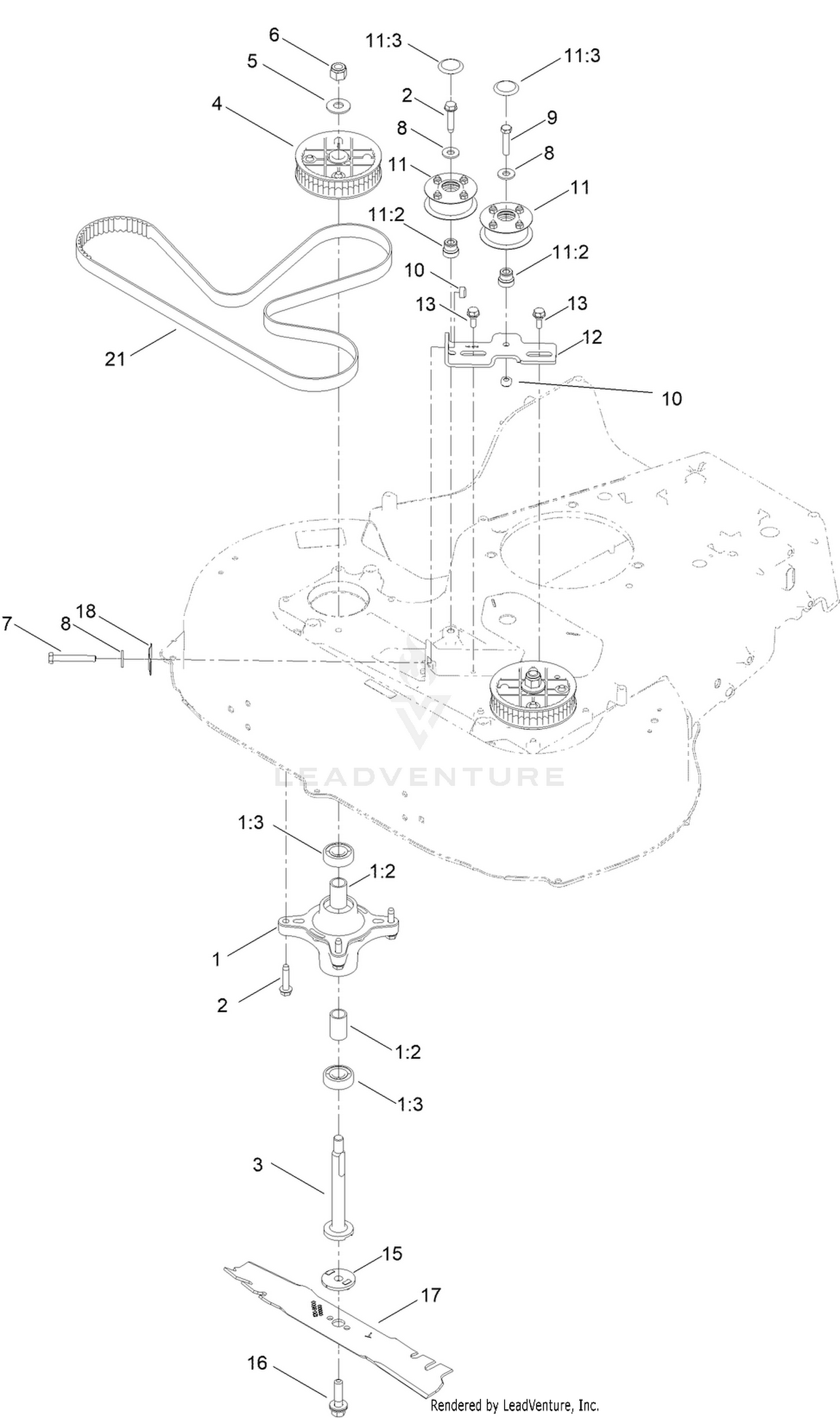

Spindle and Belt Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-9107 | SPINDLE ASM Price: $69.99 |
| 2 | 139-1731 | SCREW-THD ROLL, HWH Price: $0.79 |
| 3 | 139-6612 | SHAFT-SPINDLE Price: $27.99 |
| 4 | 121-9100 | SPROCKET Price: $50.99 |
| 5 | 109-9505 | WASHER-SPRING Price: $4.49 |
| 6 | 139-1725 | NUT-HEX Price: $0.79 |
| 7 | 139-1728 | BOLT-HH FT Price: $1.29 |
| 8 | 139-1723 | WASHER-FLAT Price: $0.39 |
| 9 | 120-2779 | SCREW-HH Price: Call Us |
| 10 | 119-4038 | NUT-HEX Price: $0.31 |
| 11 | 161-4815 | IDLER-PULLEY This part replaces 139-1758. Price: $14.99 |
| 12 | 145-4016 | BRACKET-IDLER Price: $7.99 |
| 13 | 139-1730 | Screw Price: $2.59 |
| 15 | 120-5236 | ADAPTER-BLADE Price: $6.49 |
| 16 | 125-2466 | BOLT-BLADE Price: $3.09 |
| 17 | 145-4002-03 | BLADE-ROTARY [BLACK] Price: $22.99 |
| 18 | 121-2336 | SPRING-FLAT Price: $7.29 |
