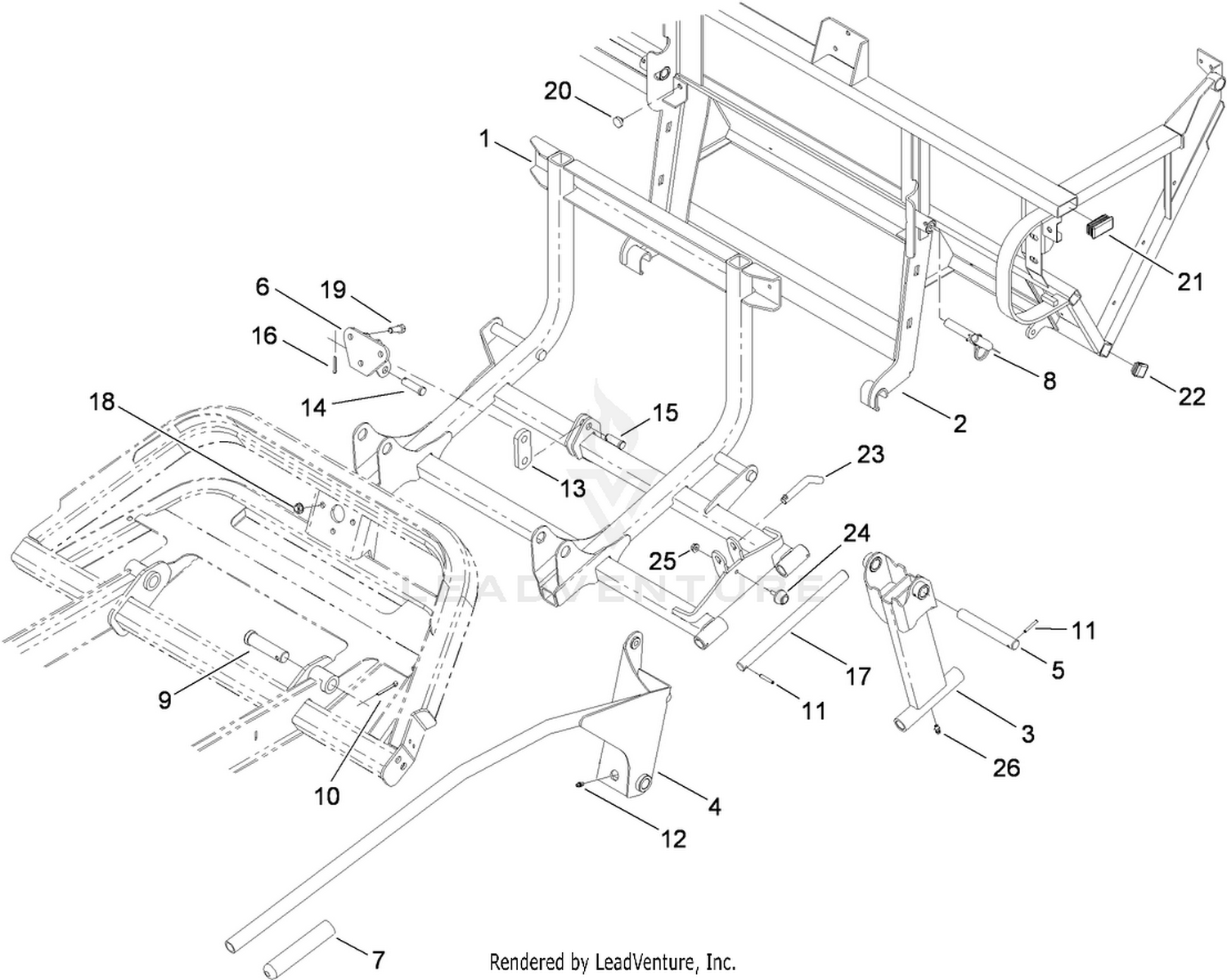

Collection Frame Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-5560-03 | COLLECTION MOUNT ASM Price: $913.28 |
| 2 | 109-8709-03 | FRAME Price: $1,596.84 |
| 3 | 117-9150-03 | MOUNT ASM Price: $382.34 |
| 4 | 117-9160-03 | LEVER ASM Price: $316.74 |
| 5 | 117-5529 | PIN Price: $87.70 |
| 6 | 117-5580-03 | LINK-MOUNT Price: $45.66 |
| 7 | 103-7115 | HANDLE-GRIP Price: $5.04 |
| 8 | 116-0458 | PIN-MOUNT, BAGGER Price: $14.99 |
| 9 | 117-5535 | PIN-CLEVIS Price: $33.45 |
| 10 | 3272-23 | PIN-COTTER Price: $0.28 |
| 11 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 12 | 302-5 | FITTING-GREASE Price: $0.59 |
| 13 | 117-5533 | PLATE-LINK Price: $17.69 |
| 14 | 283-40 | PIN-CLEVIS Price: $2.85 |
| 15 | HY4486 | NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 16 | 3272-10 | PIN-COTTER Price: $0.25 |
| 17 | 117-9161 | PIN Price: $47.77 |
| 18 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 19 | 323-6 | SCREW-HH Price: $0.66 |
| 20 | 1-513658 | BUMPER Price: $6.09 |
| 21 | 103-3201 | CAP Price: $2.10 |
| 22 | 103-3202 | CAP Price: $0.78 |
| 23 | 112-9544 | PIN-HOC Price: $6.66 |
| 24 | 1-523420 | BUMPER Price: $13.99 |
| 25 | 32128-33 | NUT-HF Price: $0.25 |
