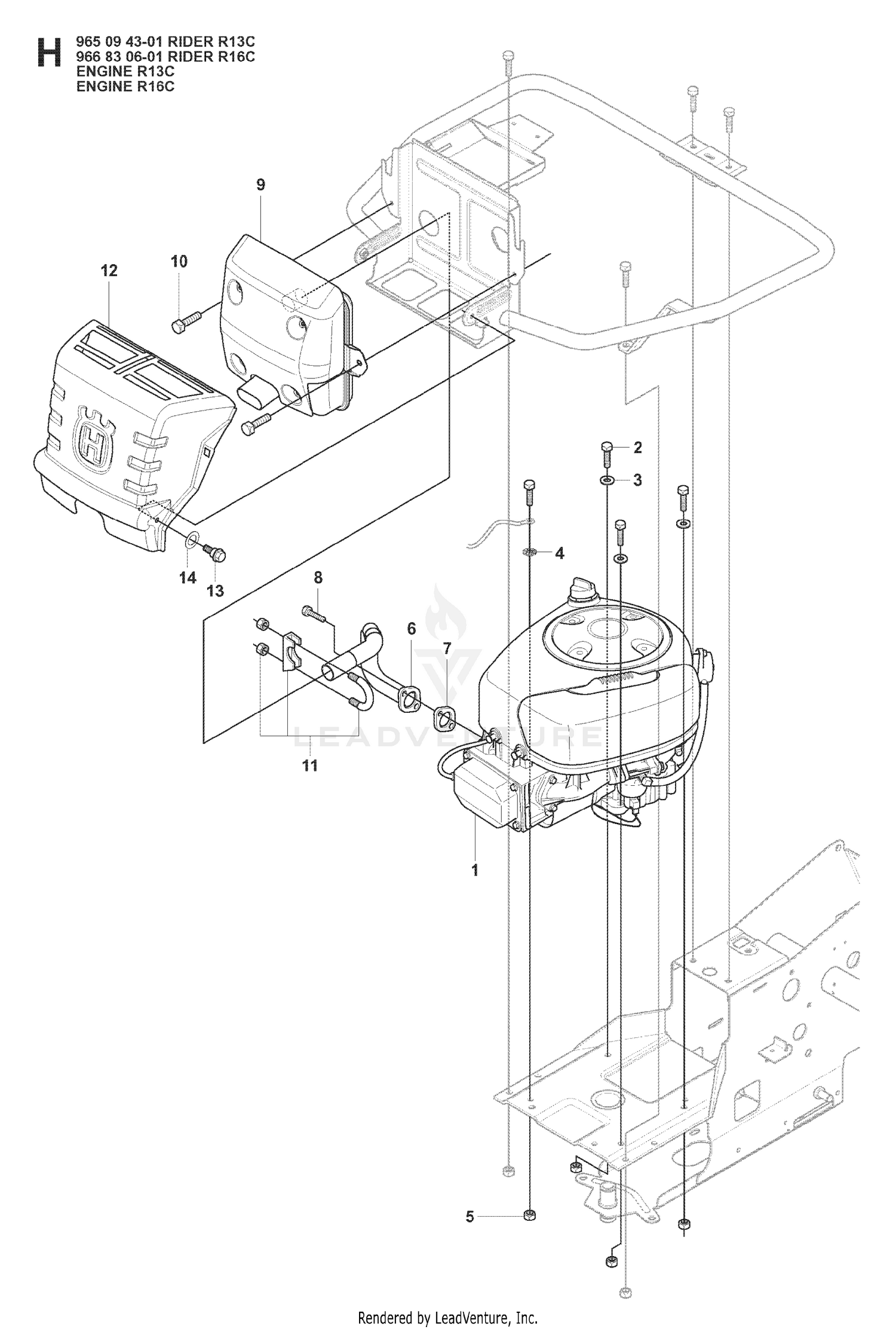

ENGINE
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535494901 | NEEDS DESCRIPTION Price: Call Us |
| 1 | 544452801 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 735216400 | Washer Price: $1.29 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 535500602 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 506914501 | FLANGE Price: $4.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 9 | 119-4285 | SPRING-COMPRESSION Price: $53.23 |
| 9 | 544335701 | MUFFLER ASSY Price: $159.99 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 19 | 112-8978 | FRAME-CENTER Price: $494.59 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 24 | 119-4262 | TUBE-SUPPORT Price: $69.90 |
| 25 | 112-8980 | CARRIER FRAME ASM Price: $820.94 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
| 27 | 67-9410 | WASHER Price: $2.04 |
| 28 | 94-8946 | WASHER-THRUST Price: $1.96 |
