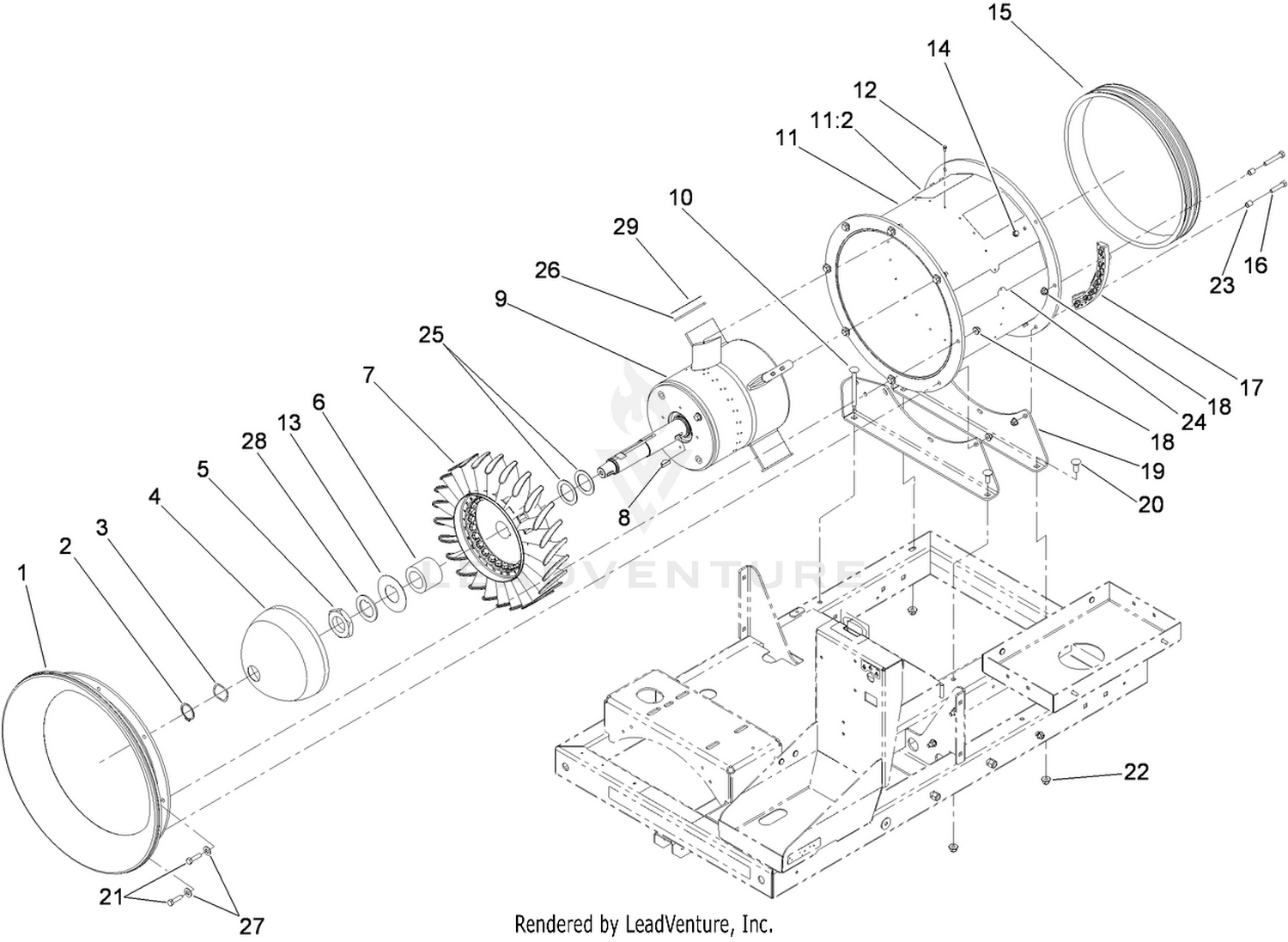

| Ref | Part Number | Description |
|---|
| 1 |
117-8329 |
BELL-INLET Price: $181.12 |
| 2 |
112-1952 |
RING-SNAP, EXT Price: $1.02 |
| 3 |
93-4632 |
WASHER-WAVEY Price: $4.05 |
| 4 |
131-9440 |
CAP-FRONT This part replaces 117-8328. Price: $60.15 |
| 5 |
112-1899 |
NUT Price: $44.99 |
| 6 |
114-2164 |
SPACER Price: $35.69 |
| 7 |
117-8356 |
ROTOR Price: $668.80 |
| 8 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 9 |
112-1871 |
VANE-STATOR Price: $15.85 |
| 10 |
3231-24 |
SCREW-CARR Price: $1.36 |
| 11 |
140-6530 |
HOUSING, SERVICE ASM This part replaces 115-5128. Price: $1,567.18 |
| 12 |
117-8303 |
SCREW-HHF Price: $0.89 |
| 13 |
115-9005 |
WASHER-TAB Price: $6.72 |
| 14 |
117-8304 |
SCREW-HHF Price: $2.09 |
| 15 |
112-1874 |
PULLEY-NOZZLE Price: $479.89 |
| 16 |
322-7 |
SCREW-HH Price: $0.89 |
| 17 |
114-9868 |
GUIDE-NOZZLE Price: $47.08 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
112-6851-01 |
MOUNT-FAN Price: $157.36 |
| 20 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 21 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 23 |
93-6859 |
SPACER Price: $9.48 |
| 24 |
115-5102 |
DECAL Price: $27.37 |
| 25 |
115-5131 |
WASHER Price: $2.92 |
| 26 |
117-8393 |
SPACER-FIN Price: $9.22 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
119-6202 |
WASHER-TAB Price: $7.38 |
