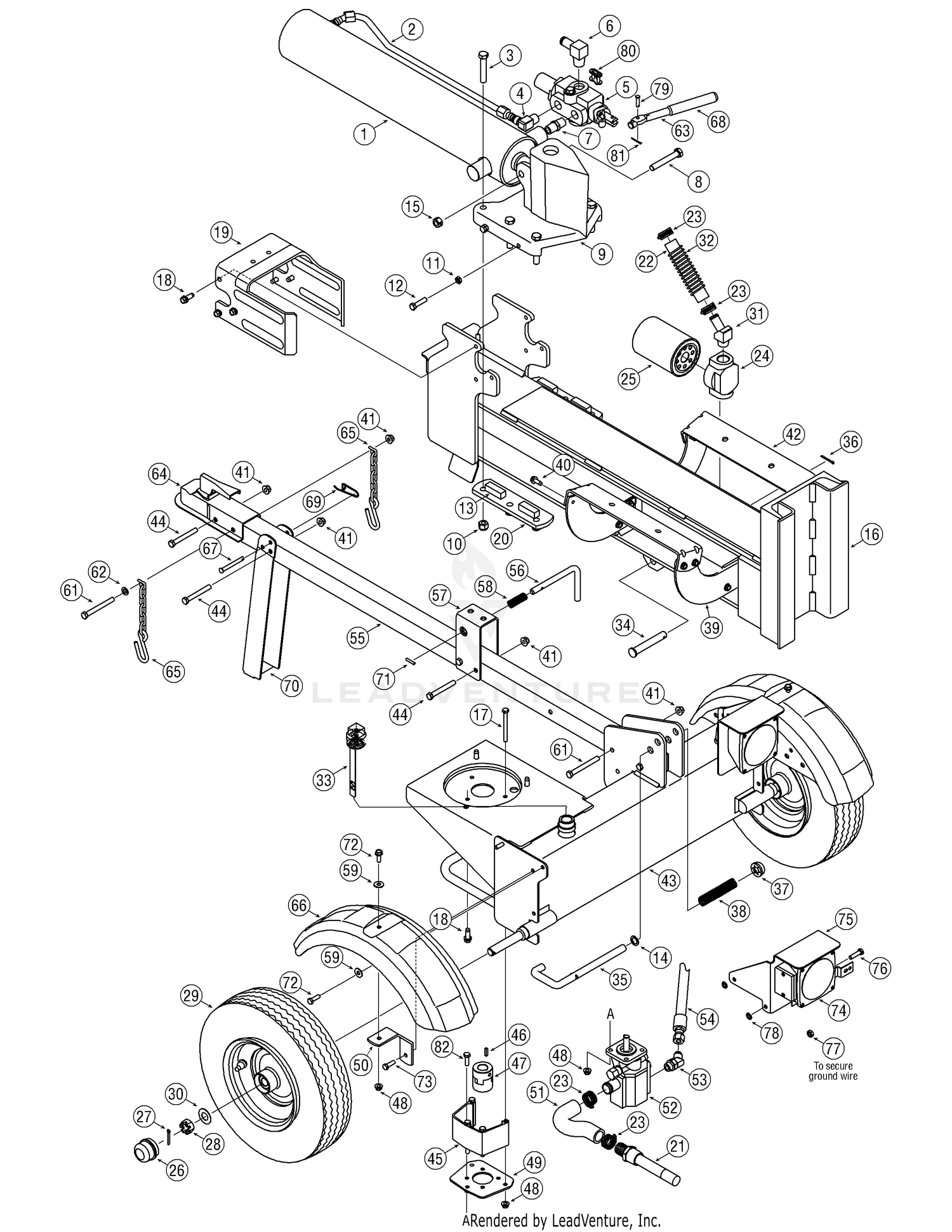

| Ref | Part Number | Description |
|---|
| 1 |
918-0769A |
Cylinder Assembly This part replaces 718-0769A. Price: $870.66 |
| 2 |
727-0634 |
HYDRAULIC TUBE Not Available Price: |
| 3 |
710-1018 |
Hex Cap Screw 1/2-20 x 2.75 Price: $9.86 |
| 5 |
918-0481A |
Control Valve This part replaces 718-0481A. Price: $336.67 |
| 6 |
737-0153 |
Return Elbow Price: $50.72 |
| 7 |
737-0238 |
Nipple Pipe 1/2-14 Price: $22.65 |
| 8 |
710-1806 |
Hex Cap Screw 1/2-13 x 3.25 Price: $9.43 |
| 9 |
719-0550A |
Wedge Assembly Price: $215.56 |
| 10 |
712-0239 |
Hex Lock Nut, 1/2-20 Price: $5.01 |
| 11 |
712-0711 |
Hex Jam Nut 3/8-24 Price: $3.90 |
| 12 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 Price: $6.50 |
| 13 |
781-0351 |
Adjustable Gib Price: $16.53 |
| 14 |
736-0116 |
Flat Washer.635 x.93 x.06 Price: $5.65 |
| 15 |
712-3022 |
Hex Lock Nut 1/2-13 Price: $3.61 |
| 16 |
681-04071A-0637 |
BEAM ASSEMBLY (POWDER BLACK) Not Available This part replaces 681-04071. Price: |
| 17 |
710-3056 |
Hex Screw, 5/16-18 x 3.25 Price: $8.82 |
| 18 |
710-0654A |
Hex Washer Screw 3/8-16 x 1.0 Price: $3.75 |
| 19 |
781-04426 |
DISLODGER BRACKET LOGSPLITTER 4.5" This part replaces 781-1048A. Price: $62.15 |
| 20 |
781-0790A-0637 |
WEDGE PLATE This part replaces 781-0790. Price: $35.76 |
| 21 |
737-04093 |
Inlet Filter Price: $79.71 |
| 22 |
727-0443 |
Return Hose 3/4" ID x 44" Lg. Price: $104.04 |
| 23 |
726-0132 |
Hose Clamp 5/8" Price: $13.50 |
| 24 |
753-06643 |
Filter Housing This part replaces 737-0316. Price: $85.81 |
| 25 |
723P0405 |
FILTER ELEMENT (10 MICRON LFP-1652) This part replaces 723-0405. Price: $39.50 |
| 26 |
734-0873 |
Hub Cap Price: $10.38 |
| 27 |
714-0162 |
Cotter Pin Price: $4.29 |
| 28 |
712-0359 |
Slotted Nut 3/4-16 Price: $10.13 |
| 29 |
634-0186 |
Wheel Assembly Price: $337.74 |
| 30 |
736-0351 |
Flat Washer.760 ID x.500 OD Price: $3.93 |
| 31 |
737-0312 |
ADAPTER Not Available Price: |
| 33 |
737-0348A |
Vented Dipstick Price: $20.53 |
| 34 |
711-1587 |
CLEVIS PIN Not Available Price: |
| 35 |
781-0690 |
Lock Rod Price: $31.33 |
| 36 |
714-0470 |
Cotter Pin Price: $3.90 |
| 37 |
726-0214 |
Push Cap Price: $9.11 |
| 38 |
732-0583 |
Compression Spring Price: $10.65 |
| 39 |
781-04180-0637 |
Log Tray Bracket This part replaces 781-04180. Price: $30.81 |
| 40 |
710-0650 |
TT Screw, 5/16-18 x.875 Price: $3.71 |
| 41 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 42 |
781-04179-0637 |
LOG TRAY This part replaces 781-04179. Price: $44.05 |
| 43 |
981-04040A-0637 |
FRAME (POWDER BLACK) Not Available This part replaces 681-04040. Price: |
| 44 |
710-0521 |
Hex Bolt 3/8-16 x 3" Price: $4.54 |
| 45 |
719-0353 |
COUPLING SHIELD Price: $47.75 |
| 46 |
714-0122 |
Square Key 3/16" x.75 Price: $3.07 |
| 48 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 49 |
781-0097-0637 |
SUPPORT BRACKET This part replaces 781-0097. Price: $61.35 |
| 50 |
781-1024A-0637 |
MOUNTING BRACKET This part replaces 781-1024. Price: $29.65 |
| 51 |
727-04130 |
Hose Price: $93.92 |
| 52 |
918-04127 |
LOGSPLITTER GEAR PUMP 11GPM This part replaces 718-04127. Price: $659.88 |
| 54 |
727-0502 |
High Pressure Hydraulic Hose Price: $183.68 |
| 55 |
781-0788 |
TONGUE TUBE Not Available Price: |
| 56 |
747-1261 |
Latch Rod Price: $35.09 |
| 57 |
781-1045 |
Latch Price: $49.00 |
| 58 |
932-3127 |
COMPRESSION SPRING This part replaces 732-3127. Price: $3.82 |
| 59 |
736-0371 |
Flat Washer Price: $3.94 |
| 61 |
710-3085 |
Hex Cap Screw, 3/8-16 x 3.50 Price: $3.90 |
| 62 |
736-0185 |
Flat Washer,.375 x.738 x.063 Price: $3.43 |
| 63 |
747-04539A |
CONTROL VALVE HANDLE This part replaces 747-04539. Price: $40.05 |
| 64 |
681-04030 |
Hitch Coupling Assembly Price: $63.83 |
| 65 |
713-0433A |
Chain Price: $39.25 |
| 66 |
731-2499A |
Fender Price: $74.24 |
| 67 |
911-0813 |
CLEVIS PIN 5/16 x 2.5 This part replaces 711-0813. Price: $5.94 |
| 68 |
720-04088 |
Grip Price: $9.09 |
| 69 |
732-0194 |
Spring Pin Price: $4.11 |
| 70 |
781-0789 |
JACK STAND Not Available Price: |
| 71 |
715-0120 |
Spiral Pin Price: $9.14 |
| 72 |
710-0650 |
TT Screw, 5/16-18 x 0.875" Price: $3.71 |
| 73 |
710-0602 |
TT Screw, 5/16-18 x 1.00 Price: $4.05 |
| 79 |
711-04585 |
Clevis Pin Price: $6.06 |
| 80 |
913-04036 |
VALVE HANDLE LINK This part replaces 713-04036. Price: $18.62 |
| 81 |
714-0111 |
Cotter Pin Price: $4.20 |
| 82 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 Price: $3.66 |
