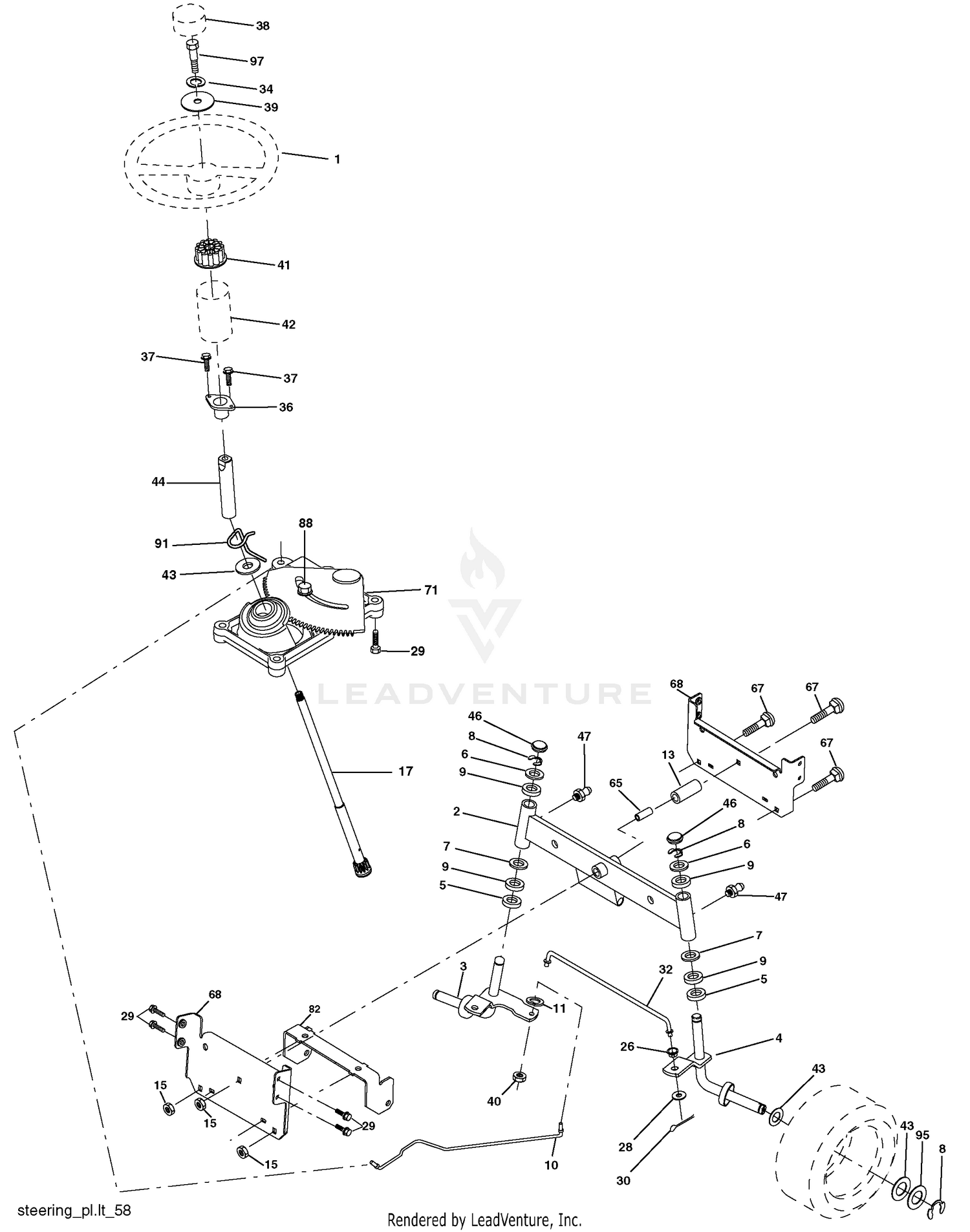

| Ref | Part Number | Description |
|---|
| 1 |
186780 |
Wheel Steering Price: Call Us |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
108-1402 |
GEAR CASE ASM Price: $859.88 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 15 |
145212 |
Hexfl ange Lock Price: Call Us |
| 17 |
190753 |
Shaft Asm Strg Price: Call Us |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 32 |
192757 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 34 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
192916 |
Cap Wheel Steer Price: Call Us |
| 39 |
19113812 |
Washer 11/32 x 2 x 12 Ga. Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
186737 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
190752 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 82 |
199978 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
| 90 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 95 |
188967 |
Washer Harden .793 x 1.637 x 060 Price: Call Us |
| 100 |
107-9071 |
SCREW Price: $0.36 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 230 |
105-3710 |
STUD Price: $1.16 |
| 240 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 310 |
108-3841 |
FILTER-OIL Price: $10.81 |
| 320 |
104-5159 |
HOLDER ASM Price: $120.58 |
| 330 |
98-9727 |
COLLAR Price: $9.86 |
| 340 |
104-5155 |
SOLENOID-STOP Price: $244.96 |
| 350 |
105-3799 |
BOLT-HSH Price: $0.84 |
