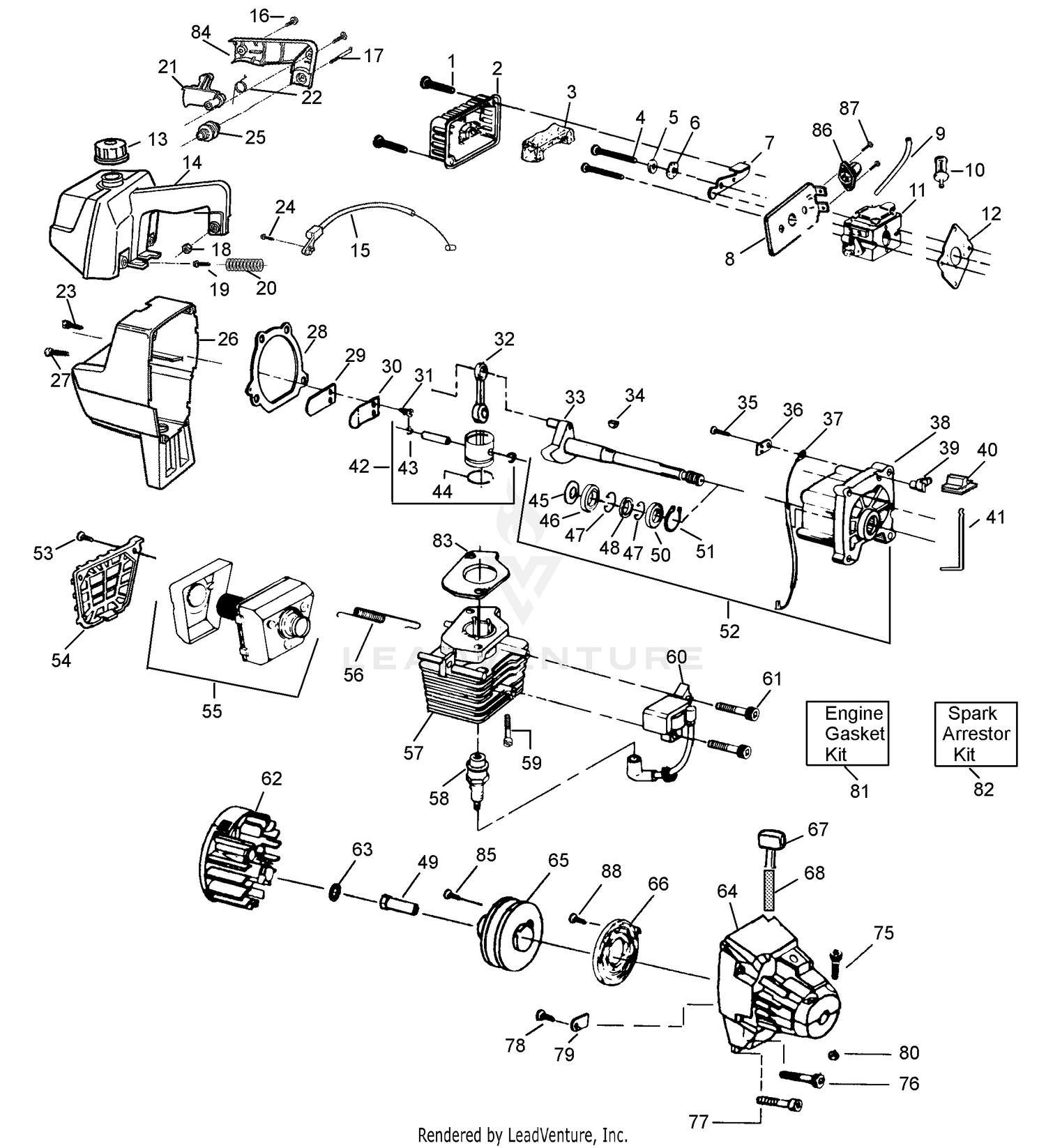

Power Unit
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015773 | Screw Price: $1.99 |
| 2 | 112-1731 | SHAFT-REAR ROLLER, LONG Price: $98.42 |
| 2 | 530027529 | Air Filter Cover Price: $3.42 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 3 | 530027530 | Air Filter Price: $1.99 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 | 530015849 | Screw Price: $1.99 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 5 | 530015852 | Spacer Price: $1.99 |
| 6 | 114-5411 | NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 | 530015254 | Wave Washer Price: $1.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 8 | 530027527 | Air Filter Plate Type 1 Price: $2.99 |
| 8 | 530037930 | Air Filter Plate Type 2 & 3 Price: $2.99 |
| 9 | 530069238 | Fuel Line Kit - Return Line Type 2 & 3 Price: $3.33 |
| 9 | 530069247 | Fuel Line Kit - Fuel Line Price: $3.99 |
| 10 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 13 | 530014347 | Fuel Cap Ass'y. Price: $4.99 |
| 14 | 530029552 | Handle & Tank Ass'y. Type 1 Price: $23.40 |
| 15 | 530037499 | Type 3 & 4 This part replaces 530027964. Price: $3.99 |
| 16 | 530015805 | Screw Price: $1.99 |
| 17 | 530015809 | Screw Price: $0.99 |
| 18 | 530015807 | Nut Price: $1.99 |
| 19 | 530015713 | Screw Price: $1.99 |
| 20 | 530027926 | Rear Isolator Spring Price: $1.99 |
| 21 | 530027924 | Throttle Trigger Price: $0.99 |
| 22 | 530027925 | Throttle Spring Price: $1.99 |
| 23 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 24 | 530015775 | Screw Price: $1.99 |
| 25 | 530024256 | Isolator Price: $3.99 |
| 26 | 530027923 | Shroud Price: $8.24 |
| 27 | 530015771 | Screw Price: $1.99 |
| 29 | 530027593 | Reed Price: $1.99 |
| 30 | 530027594 | Reed Stop Price: $1.99 |
| 31 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 32 | 530010960 | Connecting Rod Ass'y. Price: $14.99 |
| 34 | 530015126 | Flywheel Key Price: $1.99 |
| 35 | 530015780 | Screw Price: $1.99 |
| 36 | 530027546 | Switch Insulator Price: $2.99 |
| 37 | 530027547 | Lead Wire Price: $1.99 |
| 39 | 530027545 | Switch Ramp Price: $1.99 |
| 41 | 530027959 | Switch Spring Price: $1.99 |
| 43 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 44 | 530025875 | Piston Ring Price: $4.99 |
| 46 | 530032103 | Inner Bearing Price: Call Us |
| 47 | 530015787 | Retaining Ring Price: $1.99 |
| 48 | 530019158 | Crankshaft Seal Price: $2.99 |
| 49 | 530027953 | Drive Coupling Price: $1.99 |
| 50 | 530032102 | Outer Bearing Price: $8.99 |
| 51 | 530015789 | Crankshaft Retaining Ring Price: $2.99 |
| 53 | 530015717 | Screw Price: $1.99 |
| 54 | 530027781 | Muffler Guard Price: $1.99 |
| 55 | 530069310 | Muffler Kit This part replaces 530069257. Price: $9.99 |
| 56 | 530036409 | Muffler Spring Price: $1.99 |
| 58 | 530030075 | Spark Plug Type 3 (RCJ-8Y) Price: Call Us |
| 59 | 530015239 | Screw Price: $1.99 |
| 60 | 530039134 | Ignition Module Kit Price: $44.99 |
| 61 | 530015816 | Screw This part replaces 530015128. Price: $1.99 |
| 63 | 530015828 | Washer Price: $1.99 |
| 64 | 530014044 | Fan Housing Price: Call Us |
| 66 | 545008010 | STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 67 | 530027569 | Starter Handle Price: $1.99 |
| 68 | 530069232 | Rope Kit Price: $3.99 |
| 75 | 530015767 | Screw Price: $1.99 |
| 76 | 530015770 | Screw Price: Call Us |
| 77 | 530015769 | Screw Price: $1.99 |
| 78 | 530015496 | Screw Price: $1.99 |
| 79 | 530027523 | Pulley Retainer Price: $2.99 |
| 80 | 530015768 | Locknut Price: $1.99 |
| 82 | 952701612 | Spark Arrestor Kit Price: Call Us |
| 84 | 530027917 | Handle Cover Price: $22.99 |
| 85 | 530016080 | Screw - Pulley Price: $1.99 |
| 530027970 | Instruction | Decal Type 1 Price: $1.99 530027970 |
| 530037742 | Instruction | Decal Type 2 (Not a serviceable part) Price: $3.33 530037742 |
