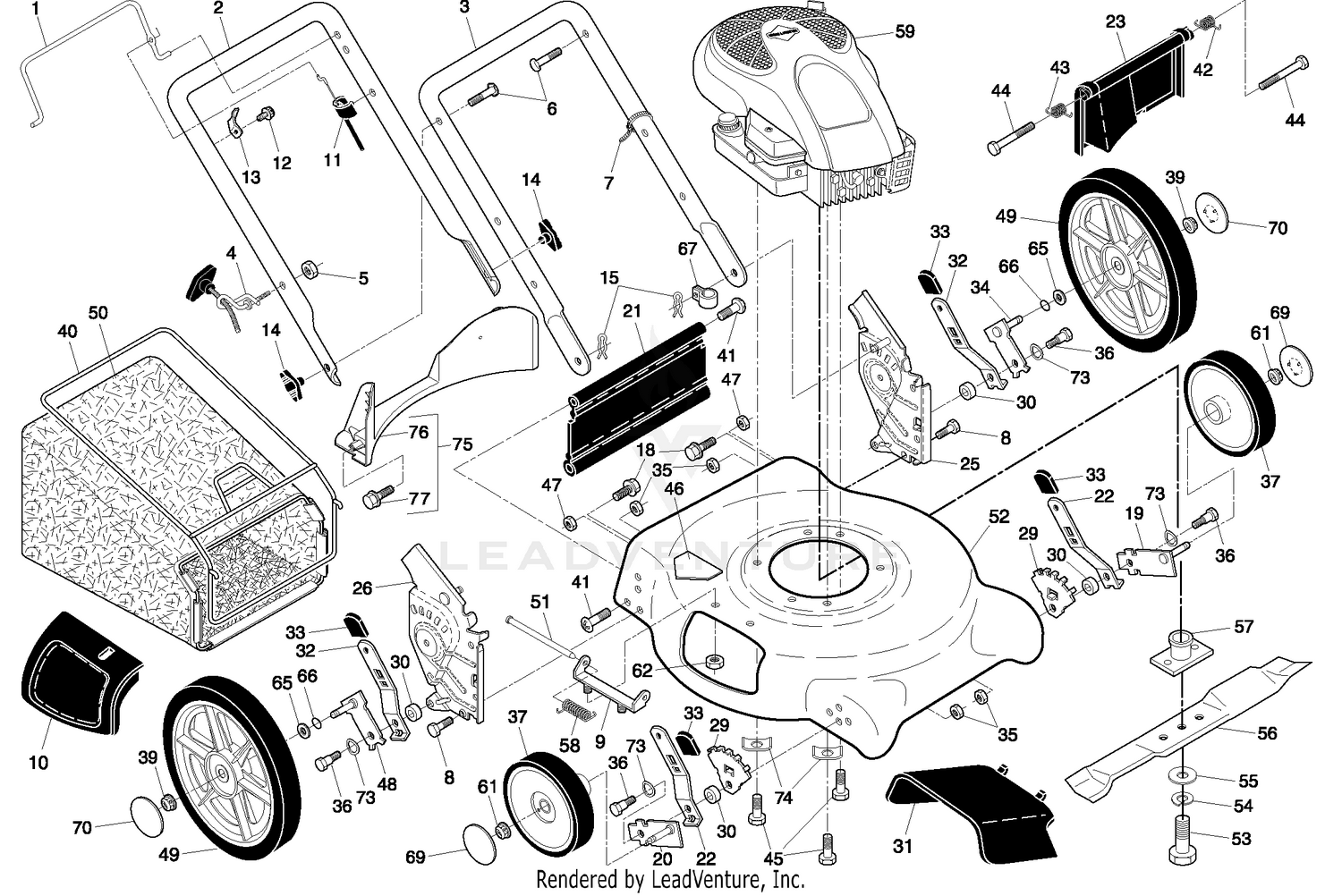

| Ref | Part Number | Description |
|---|
| 1 |
194177X428 |
Control Bar Price: Call Us |
| 2 |
194179X479 |
Upper Handle Price: Call Us |
| 3 |
169708X479 |
Lower Handle Price: Call Us |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 5 |
132004 |
Locknut, Hex 1/4-20 Price: Call Us |
| 6 |
191574 |
Handle Bolt Price: Call Us |
| 7 |
664-26 |
Wire Tie Price: Call Us |
| 8 |
74780512 |
Hex Bolt 5/16-18 x 3/4 Price: Call Us |
| 9 |
154132 |
Mounting Bracket, Mulcher Door Price: Call Us |
| 10 |
105-3735 |
CONTROL PLATE ASM Price: $167.82 |
| 10 |
165754 |
Mulcher Door Price: Call Us |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 12 |
750634 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
189713X428 |
Handle Knob Price: Call Us |
| 15 |
51793 |
Hairpin Cotter Price: Call Us |
| 18 |
17600406 |
Screw Price: Call Us |
| 19 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 20 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 20 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 21 |
189008 |
Rear Skirt Price: Call Us |
| 22 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 23 |
401814X428 |
Rear Door Assembly Price: Call Us |
| 25 |
410385X479 |
Handle Bracket, LH Price: Call Us |
| 26 |
410386X479 |
Handle Bracket, RH Price: Call Us |
| 28 |
407494X005 |
Wheel Adjusting Bracket Price: Call Us |
| 30 |
401629 |
Spacer Price: Call Us |
| 30 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 31 |
165760 |
Defl ector, Discharge Price: Call Us |
| 32 |
401624X004 |
Selector Spring, Rear Price: Call Us |
| 33 |
701037 |
Selector Knob Price: Call Us |
| 34 |
401176X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 35 |
166785 |
Locknut, Hex 5/16-18 Price: Call Us |
| 36 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 37 |
151155 |
Wheel & Tire Assembly, Front, 8" Price: Call Us |
| 39 |
409149 |
Flanged Locknut Price: Call Us |
| 40 |
105-3788 |
O-RING Price: $2.90 |
| 40 |
401808 |
Frame, Grassbag Price: Call Us |
| 41 |
88652 |
Hinge Screw Price: Call Us |
| 42 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 43 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 44 |
184193 |
Bolt, Rear Door Price: Call Us |
| 45 |
150406 |
Screw, Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 46 |
404763 |
Danger Decal Price: Call Us |
| 47 |
751153 |
Nut, Hex Price: Call Us |
| 48 |
401177X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 49 |
408852X427 |
Wheel & Tire Assembly, Rear, 12" Price: Call Us |
| 50 |
412336 |
Grassbag Price: Call Us |
| 50 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 51 |
147286 |
Rod, Hinge Price: Call Us |
| 53 |
851084 |
Hex Head Screw, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 54 |
850263 |
Helical Lockwasher Price: Call Us |
| 55 |
851074 |
Hardened Washer Price: Call Us |
| 57 |
193707 |
Blade Adapter Price: Call Us |
| 58 |
152124 |
Spring, Hinge Rod Price: Call Us |
| 60 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 61 |
409148 |
Flanged Locknut Price: Call Us |
| 62 |
73800400 |
Nut, Hex Price: Call Us |
| 65 |
88348 |
Washer, Flat 3/8 Price: Call Us |
| 66 |
197480 |
O-Ring Price: Call Us |
| 67 |
197991 |
Clip, Cable Price: Call Us |
| 69 |
407793X427 |
Hubcap, Front Wheel Price: Call Us |
| 70 |
407794X427 |
Hubcap, Rear Wheel Price: Call Us |
| 70 |
98-9589 |
NUT Price: $1.46 |
| 73 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 74 |
851201X004 |
Washer, Special, Engine Price: Call Us |
| 75 |
413693 |
Kit, Rear Baffle Price: Call Us |
| 76 |
410589 |
Baffle, Rear Price: Call Us |
| 77 |
17411312 |
Screw, Rear Baffle Price: Call Us |
| 77 |
193732 |
Operator's Manual, English Price: Call Us |
| 77 |
193734 |
Operator's Manual, French Price: Call Us |
| 80 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 90 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 100 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 110 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 120 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 130 |
98-9637 |
GASKET Price: $3.98 |
| 140 |
98-7692 |
BOLT Price: $0.92 |
| 150 |
99-8348 |
BOLT Price: $0.24 |
| 160 |
98-7654 |
GASKET Price: $8.84 |
| 170 |
105-3710 |
STUD Price: $1.16 |
| 180 |
98-7572 |
NUT Price: $0.32 |
