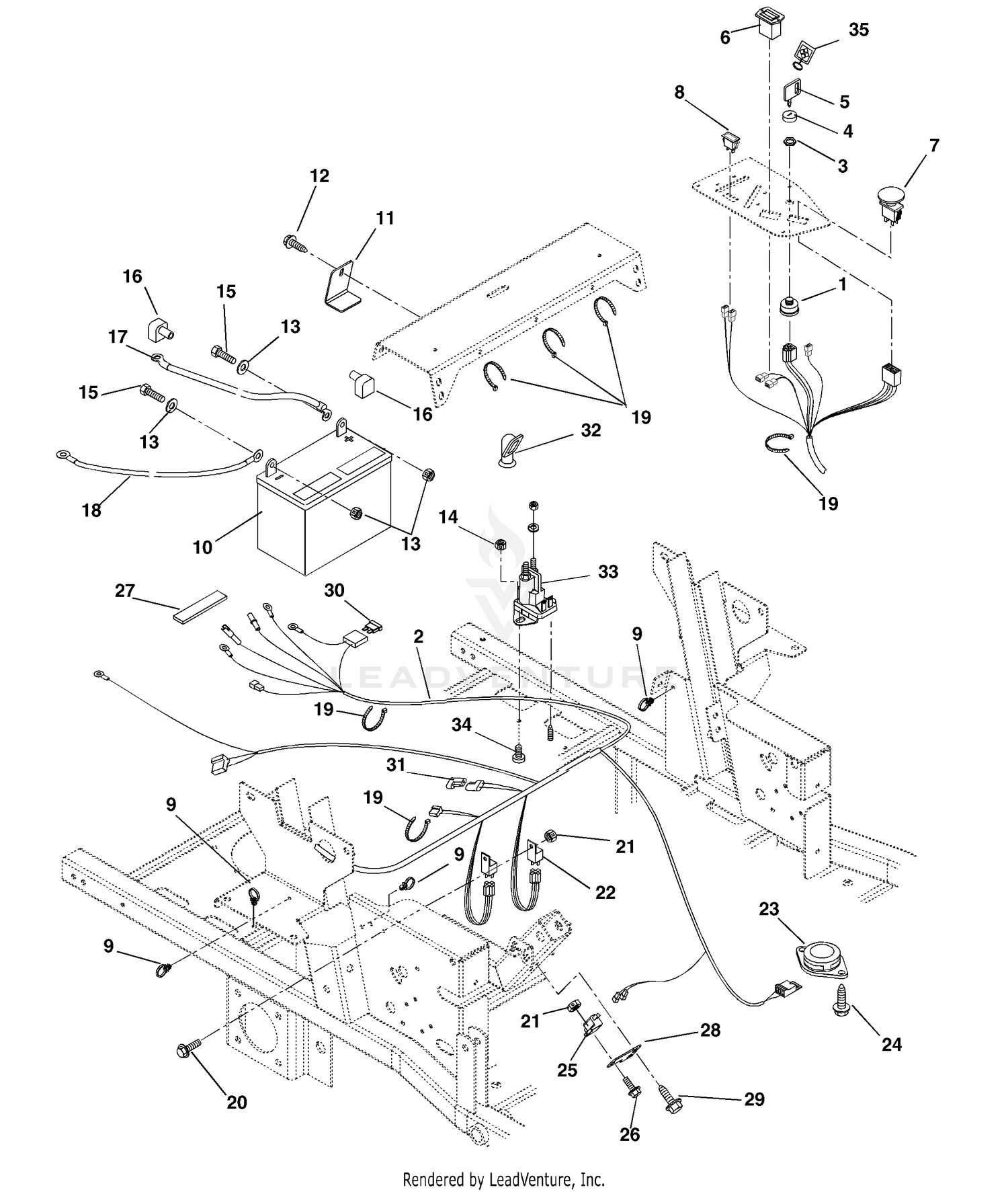

| Ref | Part Number | Description |
|---|
| 1 |
03602300 |
KEY SWITCH Price: $23.45 |
| 2 |
09286301 |
HARNESS, Z- 6 PIN This part replaces 09217800. Price: $264.45 |
| 3 |
06517400 |
NUT- PANEL .562-24 GRECO This part replaces 045489. Price: $18.95 |
| 4 |
07517700 |
CAP - IGNITION SWITCH This part replaces 045490. Price: $3.45 |
| 5 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 6 |
09497400 |
HOUR METER This part replaces 038256. Price: $22.45 |
| 7 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 8 |
05128700 |
LIGHT, INDICATOR (RED) This part replaces 050673. Price: $6.95 |
| 9 |
09236500 |
TUBE CLIP 3/4 (4158) Price: $2.95 |
| 10 |
03621100 |
BATTERY W/ TUBE Price: $99.55 |
| 11 |
09236400 |
CLAMP - BATTERY Price: $18.95 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 13 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 14 |
06500812 |
NUT,LK-CTR .25-20 GA ZCC This part replaces 06529700. Price: $0.45 |
| 15 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 16 |
07505700 |
INSULATOR This part replaces 039619. Price: $8.95 |
| 17 |
03287200 |
CABLE - START 22.00" This part replaces 02743300. Price: $16.45 |
| 18 |
03287100 |
CABLE-GROUND .25 X 13.00 X .31 This part replaces 02518900. Price: $13.45 |
| 19 |
07517300 |
CABLE TIE LG 5-1/2 This part replaces 036313. Price: $2.95 |
| 20 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 21 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 23 |
03490500 |
SEAT SWITCH This part replaces 045036. Price: $14.45 |
| 25 |
03657100 |
SWITCH- SINGLE POLE N.O. Price: $8.45 |
| 26 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 27 |
08800600 |
PAD,BATTERY This part replaces 050418. Price: $4.95 |
| 28 |
092375531 |
Plate-Switch Price: Call Us |
| 29 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 32 |
03384700 |
BOOT, INSULATOR Price: $7.95 |
| 33 |
03551000 |
SOLENOID Price: $38.45 |
| 34 |
05901705 |
BLT-HEX .25-20X.50 G5 ZCC This part replaces 05947900. Price: $0.45 |
| 09210600 |
HARNESS, |
BRIGGS WIRING Price: $307.95 09210600 |
