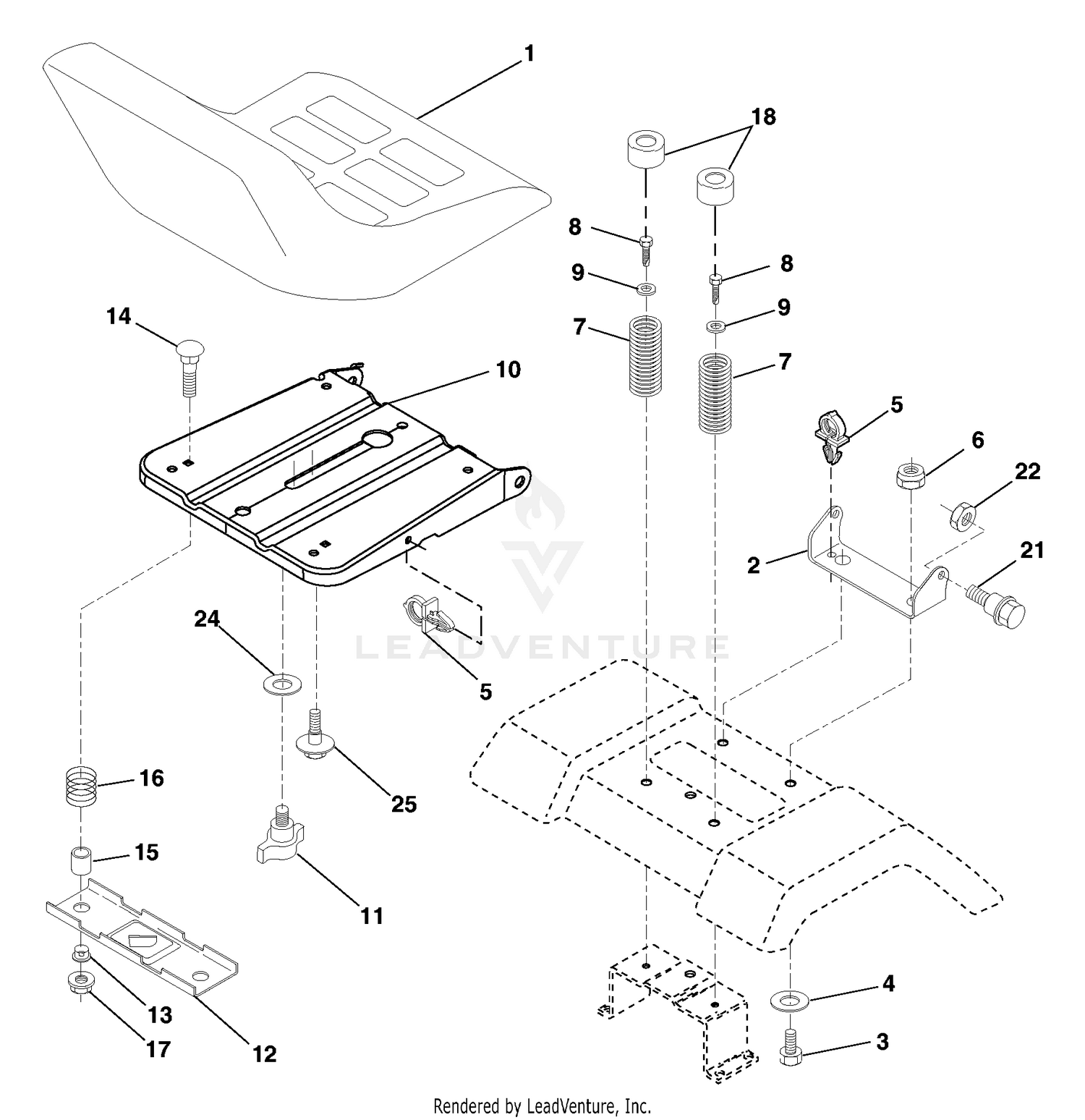

| Ref | Part Number | Description |
|---|
| 1 |
189022 |
Seat Price: Call Us |
| 1 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 2 |
69-9650-03 |
SCREEN Price: $60.32 |
| 3 |
107-1142 |
DISCONTINUED Price: Call Us |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: Call Us |
| 4 |
19131610 |
Washer Flat 13/32 x 1 x 10 Ga. Price: Call Us |
| 4 |
3269-15 |
RIVET-POP Price: $0.54 |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 5 |
69-9722 |
TRIM-SEAL Price: $25.39 |
| 6 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
69-3030 |
STRIKE-LATCH Price: $210.27 |
| 8 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 8 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 10 |
182493 |
Pan Seat Price: Call Us |
| 10 |
69-8690-03 |
SUPPORT-GRILLE Price: $505.57 |
| 11 |
105-9296 |
LATCH-DRAW Price: $71.82 |
| 11 |
166369 |
Knob Seat Price: Call Us |
| 12 |
174648 |
Bracket Mounting Switch Price: Call Us |
| 12 |
71-0300 |
FOAM-FRONT COWL, LOWER (LH) Price: $79.38 |
| 12 |
71-0310 |
FOAM-FRONT COWL, LOWER (RH) Price: $79.38 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 13 |
75-9460-03 |
BRACKET-SEAL, LH Price: $44.25 |
| 14 |
69-9721 |
TRIM-SEAL Price: $24.68 |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
121249X |
Spacer Split Price: Call Us |
| 15 |
69-7150-03 |
LOWER GRILL ASM Price: $373.29 |
| 16 |
123740X |
Spring Cprsn Price: Call Us |
| 16 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us |
| 17 |
75-9480-03 |
BRACKET-SEAL, BOTTOM Price: $18.63 |
| 18 |
124238X |
Cap Spring Seat Price: Call Us |
| 18 |
69-0040 |
STRIP-SEALING, GRILLE Price: $6.59 |
| 19 |
75-9470-03 |
BRACKET-SEAL, RH Price: $44.25 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 22 |
69-9720 |
TRIM-SEAL Price: $17.44 |
| 22 |
73800500 |
Nut Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
