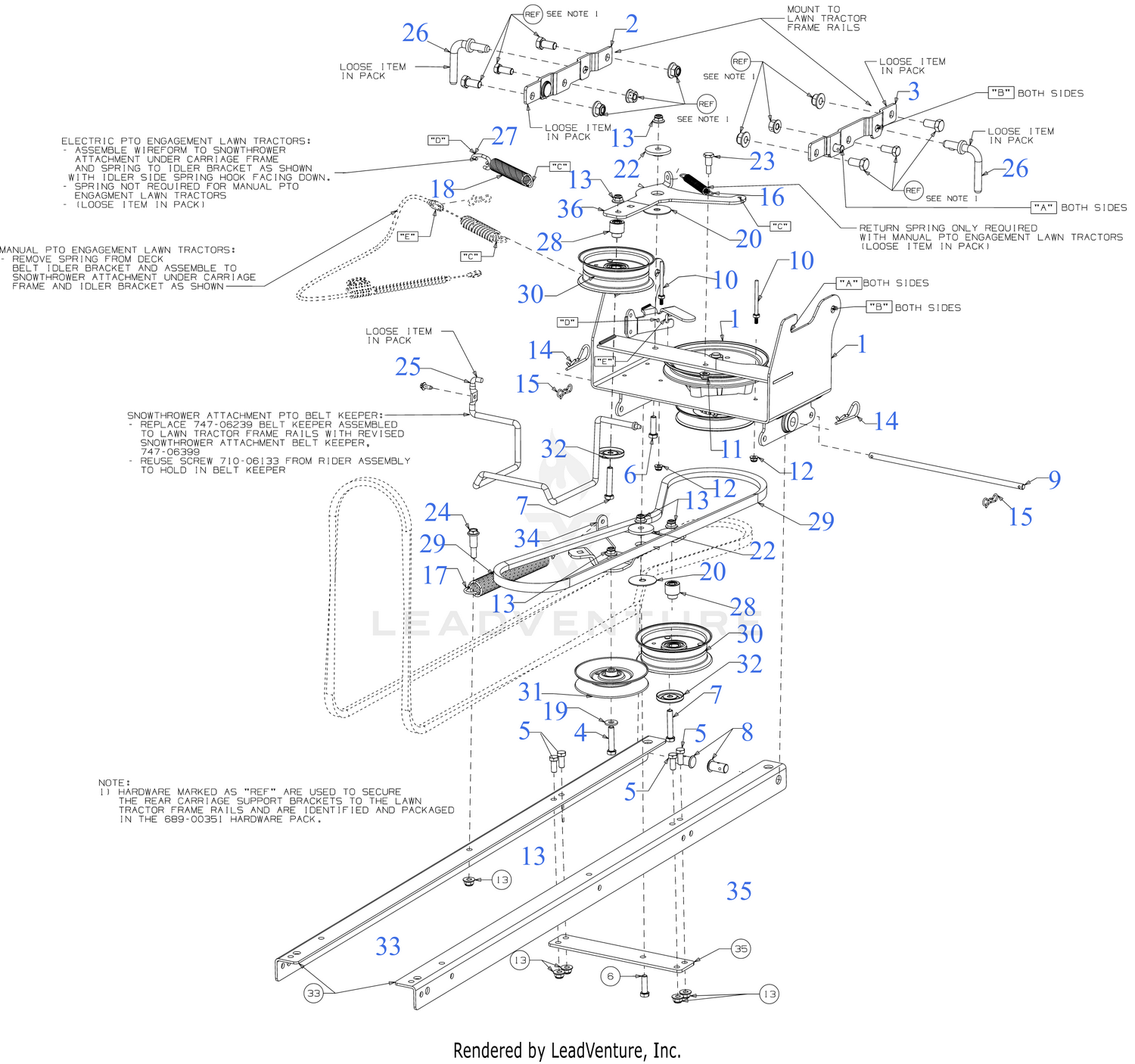

| Ref | Part Number | Description |
|---|
| 2 |
684Z05077 |
HANGER BRACKET (RH) Price: $64.53 |
| 3 |
684Z05078 |
HANGER BRACKET (LH) Price: $68.38 |
| 4 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 5 |
710-3001 |
SCREW 3/8-16 x .880 GR5 Price: $6.20 |
| 6 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 7 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 8 |
711-0309A |
CLEVIS PIN .62 Price: $11.31 |
| 9 |
711-06303 |
BELT KEEPER ROD Price: $21.21 |
| 10 |
711-06425 |
BELT KEEPER .25X2.64 Price: $7.20 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
714-0117 |
INTERNAL COTTER PIN Price: $3.85 |
| 15 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 16 |
932-0470A |
EXTENSION SPRING Price: $9.14 |
| 17 |
732-04927 |
EXTENSION SPRING Price: $19.91 |
| 18 |
759-05087 |
SPRING KIT-IDLER Price: $16.59 |
| 19 |
736-0262 |
FLAT WASHER .385X.870X.090 Price: $3.66 |
| 20 |
736-0518 |
THRUST WASHER Price: $9.81 |
| 22 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 23 |
738-0754 |
SHOULDER SCREW Price: $3.76 |
| 24 |
738-0966A |
SHOULDER SCREW .50X.925 Price: $4.08 |
| 25 |
747-06399 |
BELT KEEPER ROD Price: $83.01 |
| 26 |
747-06429 |
LOCK ROD Price: $31.33 |
| 27 |
747-06513 |
EXTENSION SPRING HOOK Price: $11.07 |
| 28 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 29 |
954-05061A |
V-BELT B SEC x 68.45 Price: $68.87 |
| 30 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 31 |
956-3045A |
IDLER PULLEY 5.06 DIA Price: $50.30 |
| 32 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 33 |
790-00617-0637 |
UNDER CARRIAGE RAIL(POWDER BLACK) Price: $93.75 |
| 34 |
790-00629-0637 |
IDLER BRACKET PIVOT (POWDER BLACK) Price: $51.66 |
| 35 |
790-00630-0637 |
IDLER SUPPORT BRACKET (POWDER BLACK) Price: $30.40 |
