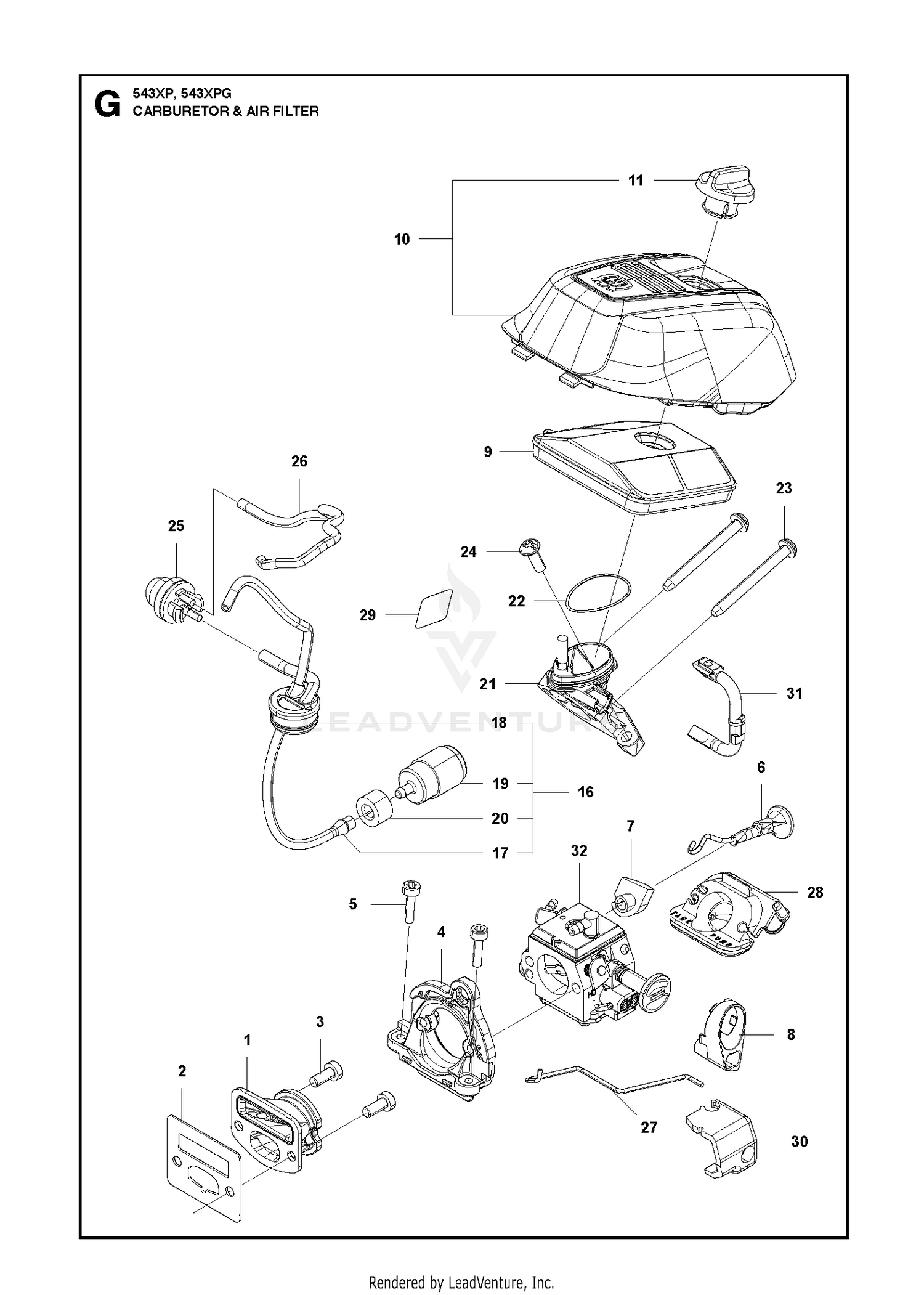

CARBURETOR & AIR FILTER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576980101 | INLET PIPE ASSY Price: $34.99 |
| 2 | 579187101 | GASKET Price: $3.99 |
| 4 | 579181001 | FLANGE ASSY Price: $17.99 |
| 6 | 577433201 | ROD CHOKE XC25 Price: $4.99 |
| 7 | 577433301 | GROMMET Price: $3.99 |
| 10 | 577433501 | AIR FILTER COVER Price: $14.99 |
| 11 | 577433701 | KNOB XC25 Price: $5.99 |
| 18 | 578778102 | Grommets This part replaces 578778101. Price: $14.99 |
| 19 | 591375401 | KIT FUEL FILTER This part replaces 506742601. Price: $8.99 |
| 20 | 513750801 | COLLAR Price: $4.99 |
| 23 | 580370101 | BOLT Price: $2.99 |
| 24 | 579191301 | SCREW M5 X 14 Price: $2.99 |
| 25 | 513789301 | PRIMARY BTN Price: $9.99 |
| 26 | 595526911 | Fuel Hoses This part replaces 580607201. Price: $4.99 |
| 27 | 576980601 | THROTTLE ROD Price: $11.99 |
| 28 | 512463101 | GROMMET Price: $3.99 |
| 29 | 580695501 | DECAL Price: $3.99 |
| 30 | 584982501 | GROMMET CARB Price: $4.99 |
