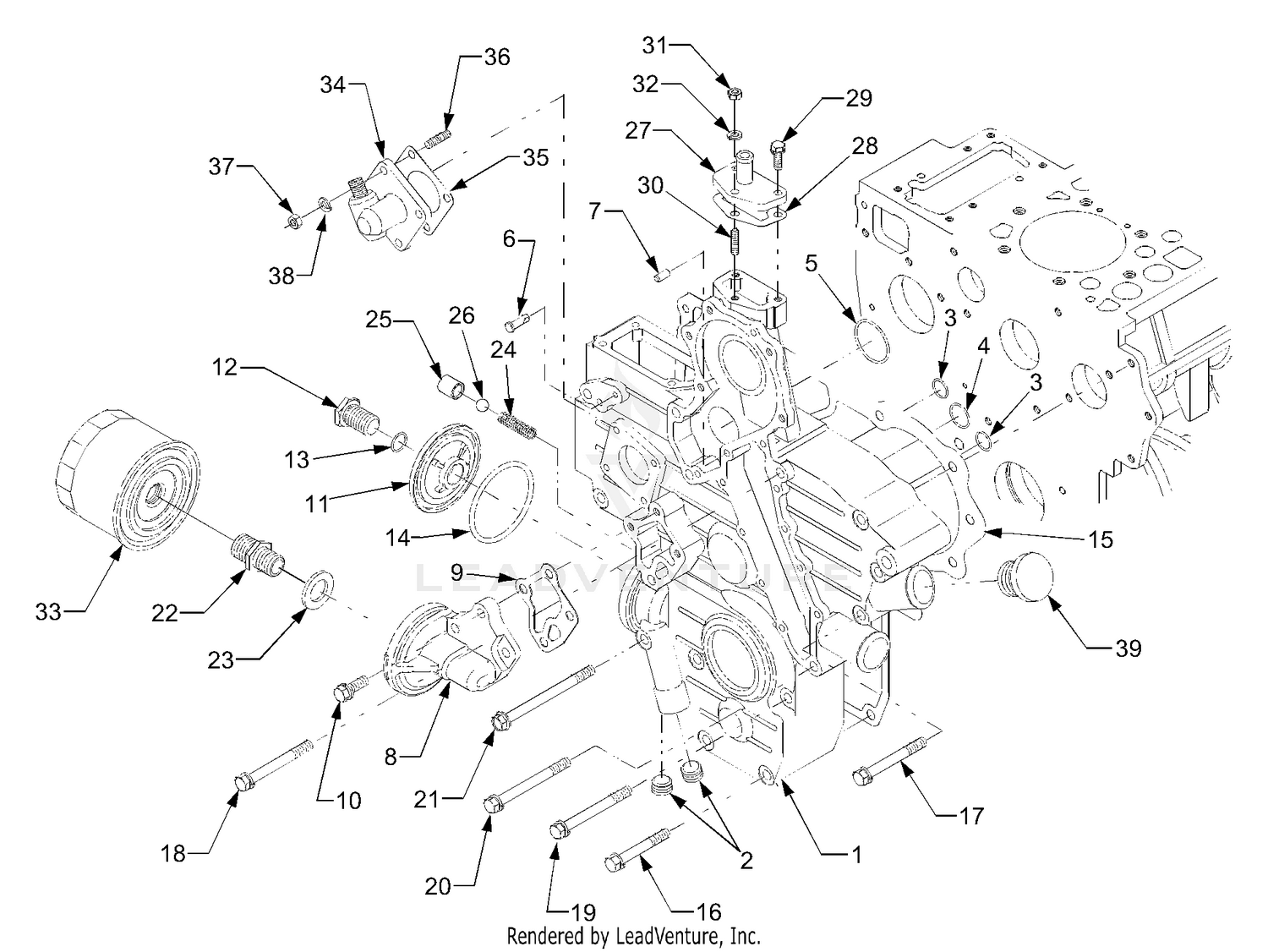

| Ref | Part Number | Description |
|---|
| 1 |
323-9 |
SCREW-HH Price: $1.29 |
| 1 |
406623 |
Seat Price: Call Us |
| 1 |
DD-E5100-04118 |
Case, Gear Price: Call Us |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
DD-E5800-96031 |
PLUG-GEAR CASE Not Available Price: |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 3 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
DD-04811-00150 |
O-RING Not Available Price: |
| 4 |
84-0690 |
DISCONTINUED Price: Call Us |
| 4 |
DD-04811-00200 |
O-RING Not Available Price: |
| 5 |
76-9100 |
SPACER Price: $4.07 |
| 5 |
DD-04811-00360 |
O-RING Not Available Price: |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 6 |
77-4260 |
LINK-SHIFT Price: $48.90 |
| 6 |
DD-15221-56282 |
START SPRING PIN Not Available Price: |
| 7 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 7 |
DD-05012-00612 |
PIN Not Available Price: |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 8 |
84-1610-03 |
SUPPORT-ROD, SHIFT Price: $30.56 |
| 8 |
DD-E5800-32611 |
SUPPORT-OIL FILTER Not Available Price: |
| 9 |
84-0700 |
ROD-SHIFT Price: $50.33 |
| 9 |
DD-E5800-32622 |
GASKET-FILTER SUPT Not Available This part replaces DD-E5800-32621. Price: |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 10 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 10 |
DD-01123-50825 |
HEX BOLT Not Available Price: |
| 11 |
302-14 |
VENT Price: $8.03 |
| 11 |
DD-E5800-32881 |
COVER PLATE Not Available Price: |
| 12 |
2812-11 |
BUSHING-REDUCER Price: $14.12 |
| 12 |
DD-E5800-32911 |
BOLT-COVER PLATE Not Available Price: |
| 13 |
289-44 |
NIPPLE-PIPE Price: $7.27 |
| 13 |
DD-04811-00150 |
O-RING Not Available Price: |
| 14 |
2813-14 |
PIPE-ELBOW, 90 Price: $25.56 |
| 14 |
DD-E5800-96831 |
O-RING Not Available Price: |
| 15 |
27-3710 |
DIPSTICK Price: $24.62 |
| 15 |
DD-E5800-04133 |
GEAR CASE GASKET Not Available Price: |
| 16 |
DD-01123-50860 |
BOLT Not Available Price: |
| 17 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 17 |
DD-01123-50870 |
BOLT Not Available Price: |
| 18 |
32151-62 |
RING-RETAINING Price: $1.49 |
| 18 |
DD-01123-50875 |
BOLT Not Available Price: |
| 19 |
237-167 |
O-RING Price: $5.78 |
| 19 |
DD-01123-50880 |
BOLT Not Available Price: |
| 20 |
84-1600 |
DISCONTINUED Price: Call Us |
| 20 |
DD-01123-50885 |
BOLT Not Available Price: |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 21 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 21 |
DD-01754-50801 |
FLANGE BOLT Not Available Price: |
| 22 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 22 |
DD-15221-32291 |
Pipe, Joint Price: Call Us |
| 23 |
323-7 |
SCREW-HH Price: $0.65 |
| 23 |
DD-04011-50180 |
FLAT WASHER Not Available Price: |
| 24 |
92-5830 |
TRACTION HOSE ASM Price: $199.33 |
| 24 |
DD-15241-36952 |
SPRING Not Available Price: |
| 25 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 25 |
DD-E5500-36932 |
SEAT-BALL Not Available Price: |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
DD-07715-03213 |
DETENT BALL Not Available Price: |
| 27 |
92-2556 |
MOTOR-HYD This part replaces 92-2556-01. Price: $2,817.26 |
| 27 |
DD-15521-73321 |
WATER RETURN FLANGE Not Available Price: |
| 28 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 28 |
DD-15521-73331 |
WATER RETURN GASKET Not Available Price: |
| 29 |
86-5750 |
DISCONTINUED Price: Call Us |
| 29 |
DD-01023-50620 |
HEX BOLT Not Available Price: |
| 30 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 30 |
DD-01513-50616 |
STUD Not Available Price: |
| 31 |
325-2 |
SCREW-HH Price: $1.02 |
| 31 |
DD-02056-50060 |
HEX NUT Not Available Price: |
| 32 |
86-5420 |
DISCONTINUED Price: Call Us |
| 32 |
DD-04512-50060 |
LOCK WASHER Not Available Price: |
| 33 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 33 |
DD-E6201-32443 |
Filter, Engine Oil Price: $15.89 |
| 34 |
289-50 |
DISCONTINUED Price: Call Us |
| 34 |
DD-E5205-58812 |
DRIVE ASSEMBLY-HOUR MET Not Available Price: |
| 35 |
43-8610 |
GUIDE Price: $23.35 |
| 35 |
DD-E5500-88132 |
GASKET-HOUR METER Not Available This part replaces DD-15221-88131. Price: |
| 36 |
3-1506 |
BUSHING Price: $2.42 |
| 36 |
DD-15221-88211 |
STUD Not Available Price: |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 37 |
86-5860 |
NIPPLE Price: $42.90 |
| 37 |
DD-02056-50060 |
HEX NUT Not Available Price: |
| 38 |
92-1366 |
SPRING-COMPRESSION Price: $9.78 |
| 38 |
DD-04512-50060 |
LOCK WASHER Not Available Price: |
| 39 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 40 |
197661 |
Handle Slide Price: Call Us |
| 40 |
92-5841 |
TRACTION HOSE ASM Price: $143.84 |
| 40 |
92-7765 |
TRACTION TUBE ASM Price: $164.84 |
| 41 |
198200 |
Spring Latch Price: Call Us |
| 41 |
340-167 |
FITTING-HYD, TEE Price: $93.58 |
| 42 |
82-5380 |
SHIM-PINION, .045 Price: $3.97 |
| 43 |
74760612 |
Bolt 3/8-16 UNC x 3/4 Price: Call Us |
| 43 |
82-5390 |
SHIM-PINION, .038 Price: $3.92 |
| 44 |
82-5400 |
SHIM-PINION, .052 Price: $6.57 |
| 46 |
92-1364 |
GUIDE-PIN, SWITCH Price: $50.60 |
| 47 |
92-1365 |
PLUNGER-SWITCH Price: $52.46 |
| 48 |
237-30 |
O-RING Price: $2.50 |
