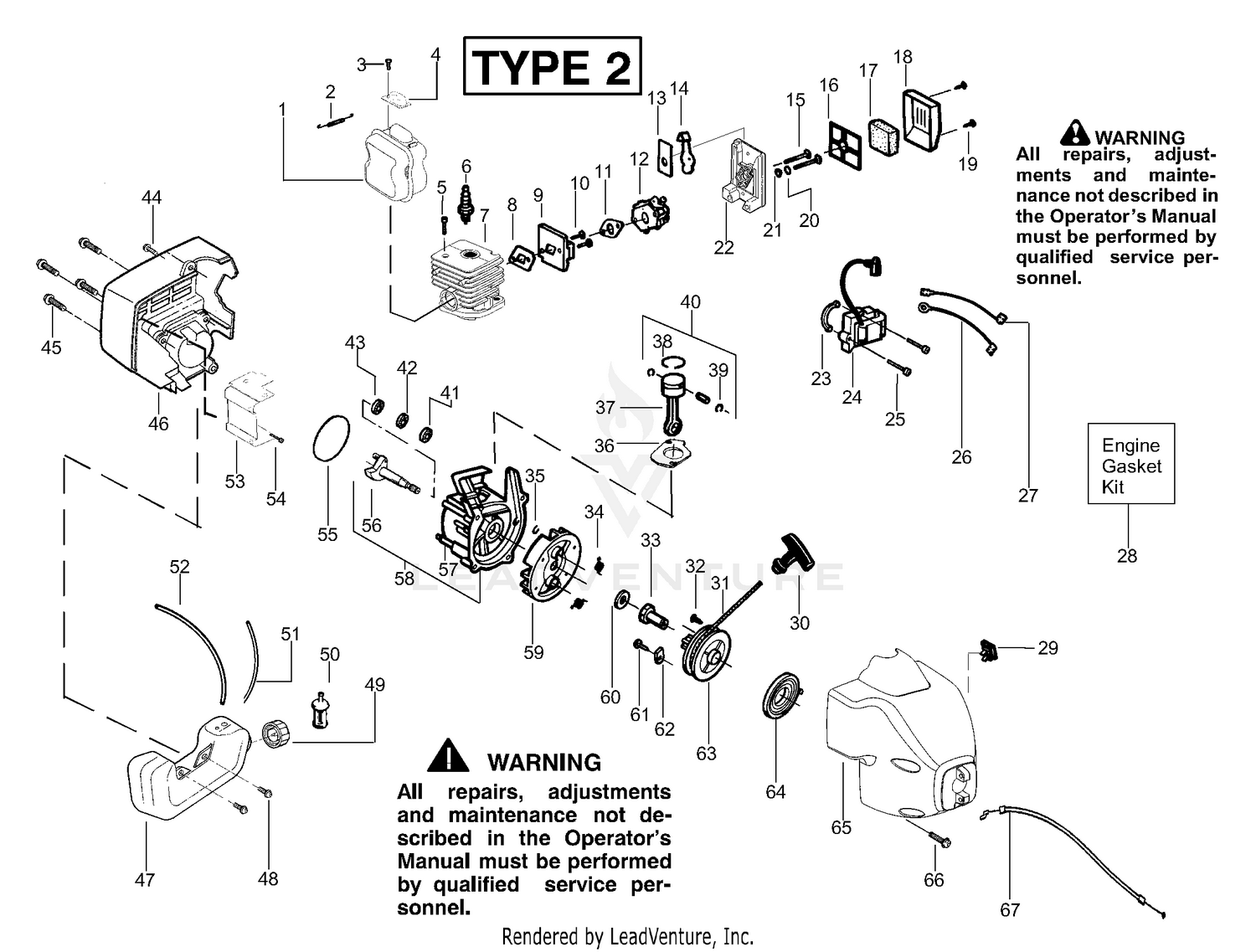

| Ref | Part Number | Description |
|---|
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3546 |
PULLEY-DRIVEN, LOW Price: $163.56 |
| 2 |
530042088 |
Muffler Spring Price: $1.99 |
| 3 |
530015241 |
Screw Price: $1.99 |
| 4 |
119-4775 |
SPINDLE HOUSING ASM Price: $244.67 |
| 4 |
530071361 |
Screen-Spark Arrestor Price: $4.99 |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 5 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 6 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 7 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 8 |
530071363 |
Gasket-Cylinder/Carb. Price: $5.99 |
| 9 |
530055535 |
Carb. Adapter Price: $3.99 |
| 10 |
530016014 |
Screw-Carb Adptr. Price: $1.99 |
| 11 |
530071363 |
Gasket-Carb. Price: $5.99 |
| 12 |
530071443 |
Kit-Carb. Ass'y. (C1U-W10) Price: $19.32 |
| 12 |
530071628 |
Kit-Carb. Ass'y. (C1U-W10B) Price: $34.99 |
| 13 |
530038747 |
Choke Plate Price: $1.99 |
| 14 |
530035499 |
Choke Shutter Price: $1.99 |
| 15 |
530016353 |
Screw-Carburetor Price: $1.99 |
| 16 |
530036569 |
Filter Support Plate Price: $1.99 |
| 17 |
530036575 |
Air FIlter Foam Price: $1.99 |
| 18 |
530054414 |
Air Filter Cover Price: $3.99 |
| 19 |
530015892 |
Screw-Air Box Price: $1.99 |
| 20 |
530015852 |
Choke Spacer Price: $1.99 |
| 21 |
530015254 |
Washer Price: $1.99 |
| 22 |
530052431 |
Air Box Price: $1.99 |
| 23 |
530036145 |
Spacer-Ignit. Module Price: $1.99 |
| 24 |
545081826 |
Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 25 |
530015954 |
Screw-Ignit. Module Price: $1.99 |
| 26 |
530054448 |
Ground Wire Ass'y. Price: $1.99 |
| 27 |
530054449 |
Lead Wire Ass'y. Price: $1.99 |
| 29 |
530069572 |
Kit-Switch This part replaces 530037692. Price: $4.99 |
| 30 |
530027569 |
Starter Handle Price: $1.99 |
| 31 |
530071325 |
Kit-Rope Price: $3.99 |
| 32 |
530016326 |
Screw Price: $1.99 |
| 33 |
530027953 |
Drive Coupling Price: $1.99 |
| 34 |
530023817 |
Spring Starter Dog Price: $1.99 |
| 35 |
530015941 |
Ret. Ring-C'case Price: $1.99 |
| 36 |
530071363 |
Gasket-Cylinder Price: $5.99 |
| 37 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 38 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 39 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 41 |
530055728 |
Outer Bearing Price: $6.99 |
| 42 |
530071615 |
C'case Seal Price: $4.99 |
| 43 |
530032125 |
Inner Bearing Price: $11.99 |
| 44 |
530015886 |
Screw-Shd/Fan Hsg Price: $1.99 |
| 45 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 46 |
530055517 |
Rear Shroud Price: $17.99 |
| 48 |
530016379 |
Retainer Price: $2.99 |
| 49 |
530014347 |
Fuel Cap Assy. Price: $4.99 |
| 50 |
530095646 |
Fuel Pickup Assy Price: $2.99 |
| 51 |
530069247 |
Fuel Line (Small) Price: $3.99 |
| 52 |
530069216 |
Fuel Line (Large) Price: $3.99 |
| 53 |
530055351 |
Shield-Heat Price: $2.99 |
| 54 |
530015805 |
Screw-Heat Shield Price: $1.99 |
| 55 |
530071363 |
O-ring-C'case Price: $5.99 |
| 56 |
530012413 |
Crankshaft Ass'y. Price: $14.99 |
| 59 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 60 |
530015828 |
Washer-Flat Price: $1.99 |
| 61 |
530015775 |
Screw-Pulley Price: $1.99 |
| 62 |
530053985 |
Retainer-Pulley Price: $0.99 |
| 64 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 65 |
530055510 |
Assy.-Fan Hsg. Price: $19.99 |
| 66 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
