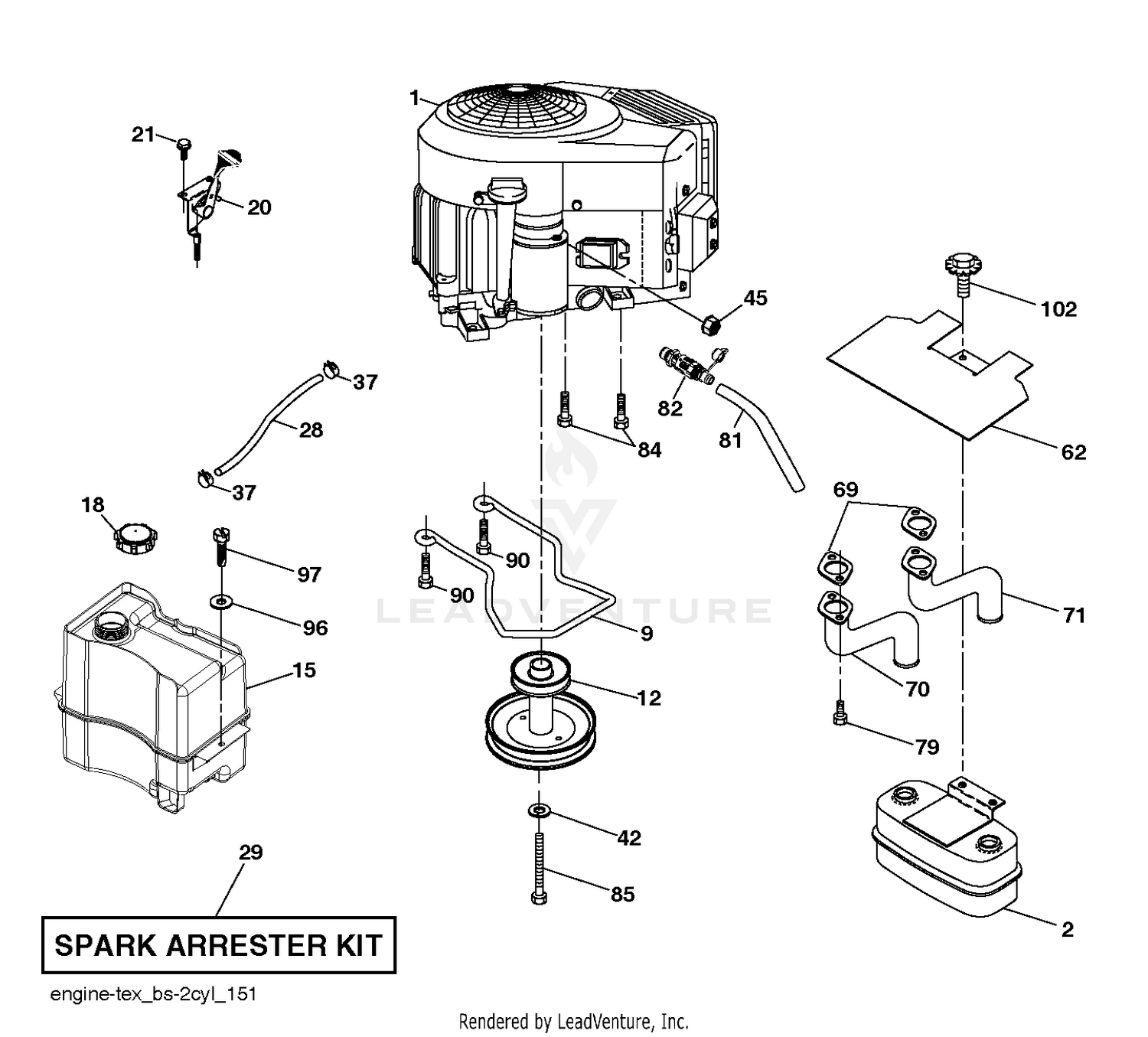

| Ref | Part Number | Description |
|---|
| 2 |
589818701 |
MUFFLER.ASM.TWIN.MNTG.BRACKET Price: $27.99 |
| 9 |
582540302 |
KEEPER.BELT.ENG.3.25"2BOLT.PNT Price: $3.99 |
| 12 |
532405140 |
PULLEY.ENGINE.5.0.PD Price: $54.99 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $74.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $14.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN. Price: $19.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532137180 |
Arrester, Spark (Optional equipment) (AYP part number) Price: $129.99 |
| 37 |
532123487 |
Clamp Hose Black (AYP part number) Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 96 |
819091416 |
Washer 9/32 x 7/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
