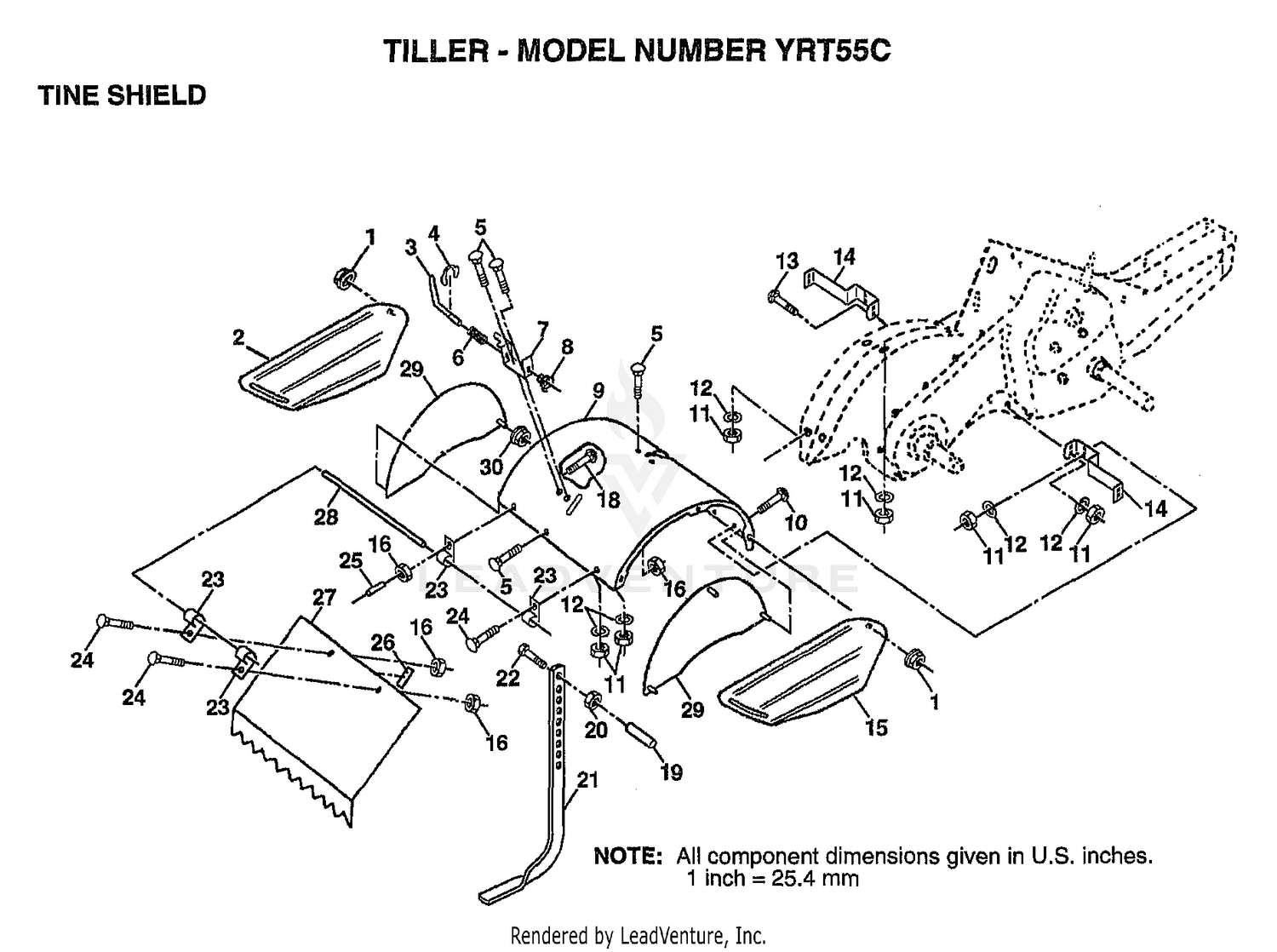

| Ref | Part Number | Description |
|---|
| 1 |
98000129 |
NUT Price: Call Us |
| 2 |
161415X428 |
SHLD.SIDE.OUTER.L Price: Call Us |
| 2 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 3 |
69-8910 |
WASHER Price: $1.70 |
| 3 |
8393J |
STAKE PIN TI Price: Call Us |
| 4 |
12000036 |
KLIP RING TI Price: Call Us |
| 4 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 5 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
72140506 |
BOLT Price: Call Us |
| 6 |
237-175 |
O-RING Price: $4.39 |
| 6 |
8394J |
SPRING TI Price: Call Us |
| 7 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 7 |
8392J |
LATCH BRACKET TI Price: Call Us |
| 8 |
109230X |
SPRING CRT Price: Call Us |
| 8 |
21-2070-03 |
END-YOKE Price: $40.78 |
| 9 |
124289X428 |
SHIELD TINE Price: Call Us |
| 9 |
237-174 |
O-RING Price: $4.01 |
| 10 |
354-105 |
RING-BACK UP Price: $3.12 |
| 10 |
72140508 |
BOLT Price: Call Us |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
10040500 |
LOCKWASHER Price: Call Us |
| 12 |
105-0606 |
HOUSING-RH This part replaces 92-8003. Price: $555.70 |
| 13 |
72110510 |
BOLT Price: Call Us |
| 13 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 14 |
71-3870 |
GASKET Price: $12.51 |
| 15 |
161414X428 |
SHLD.SIDE.OUTER.R Price: Call Us |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE Price: $13.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
73510400 |
NUT Price: Call Us |
| 17 |
321-2 |
SCREW-HH Price: $2.79 |
| 18 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
72040410 |
BOLT Price: Call Us |
| 19 |
102701X |
GRIP CRT Price: Call Us |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
32128-25 |
NUT-HF Price: $3.19 |
| 20 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 21 |
102156X |
SUB= 102156X500 Price: Call Us |
| 21 |
71-3830-03 |
BELLCRANK-BRAKE Price: $82.63 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
74930632 |
BOLT Price: Call Us |
| 23 |
4440J |
HINGE CRT Price: Call Us |
| 23 |
71-3880 |
CLEVIS Price: $61.78 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 24 |
72140404 |
BOLT Price: Call Us |
| 25 |
6712 |
J VINYL CAP TI Price: Call Us 6712 J |
| 25 |
71-3900 |
GASKET Price: $17.82 |
| 26 |
109227X |
PAD IDLER TI Price: Call Us |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
120588X |
PIN HINGE Price: Call Us |
| 28 |
71-3860 |
CLEVIS Price: $16.88 |
| 29 |
124309X428 |
SHIELD TINE Price: Call Us |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 30 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 31 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 32 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 33 |
93-7417 |
GASKET Price: $5.86 |
| 34 |
71-3910 |
COLLAR Price: $35.77 |
| 35 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 36 |
93-7418 |
CAP-ACTUATOR, BRAKE Price: $28.84 |
