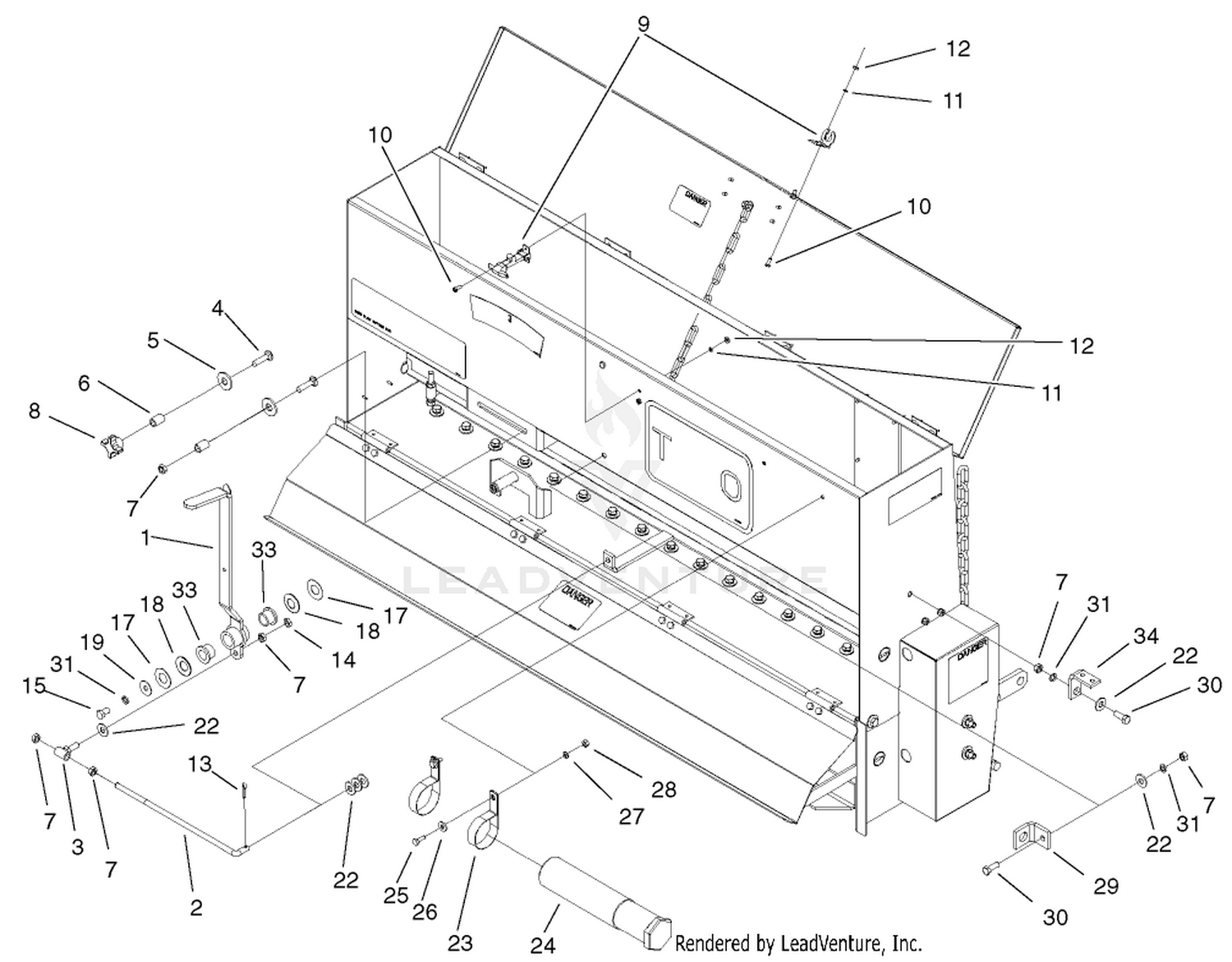

Seeder Control Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-7735-01 | HANDLE-SEEDER Price: $301.25 |
| 2 | 93-004-0711 | ROD-ADJUSTMENT, SEED Price: $118.08 |
| 3 | 93-005-0751 | PIVOT SPACER ASM Price: $16.29 |
| 4 | 3231-4 | SCREW-CARR Price: $3.59 |
| 5 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 6 | 48-004-4651 | SECTOR SPACER This part replaces 93-004-0761. Price: $21.10 |
| 7 | 3217-7 | NUT-HEX Price: $0.28 |
| 8 | 01-257-0010 | KNOB Price: $28.55 |
| 9 | 01-270-1350 | LATCH-DRAW, FLEXIBLE Price: $47.98 |
| 10 | 01-158-1210 | SCREW-SHH Price: $0.25 |
| 11 | 3253-17 | WASHER-LOCK Price: $0.25 |
| 12 | 3217-26 | NUT-HEX Price: $0.25 |
| 13 | 3272-48 | PIN-COTTER Price: $0.25 |
| 14 | 3218-3 | NUT-JAM Price: $0.25 |
| 15 | 323-34 | SCREW-HH Price: $0.54 |
| 17 | 71-4540 | WASHER-THRUST Price: $1.97 |
| 18 | 3290-440 | WASHER-BELLEVILLE Price: $7.46 |
| 19 | 3256-35 | WASHER-FLAT Price: $0.68 |
| 22 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 23 | 2412-133 | CLAMP-R Price: $3.19 |
| 24 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 25 | 321-4 | SCREW-HH Price: $0.99 |
| 26 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 27 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 28 | 3217-5 | NUT-HEX Price: $0.25 |
| 29 | 93-004-0841-01 | BRACKET-CABLE, REAR Price: $75.77 |
| 30 | 323-6 | SCREW-HH Price: $0.66 |
| 31 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 33 | 256-244 | BUSHING Price: $5.77 |
