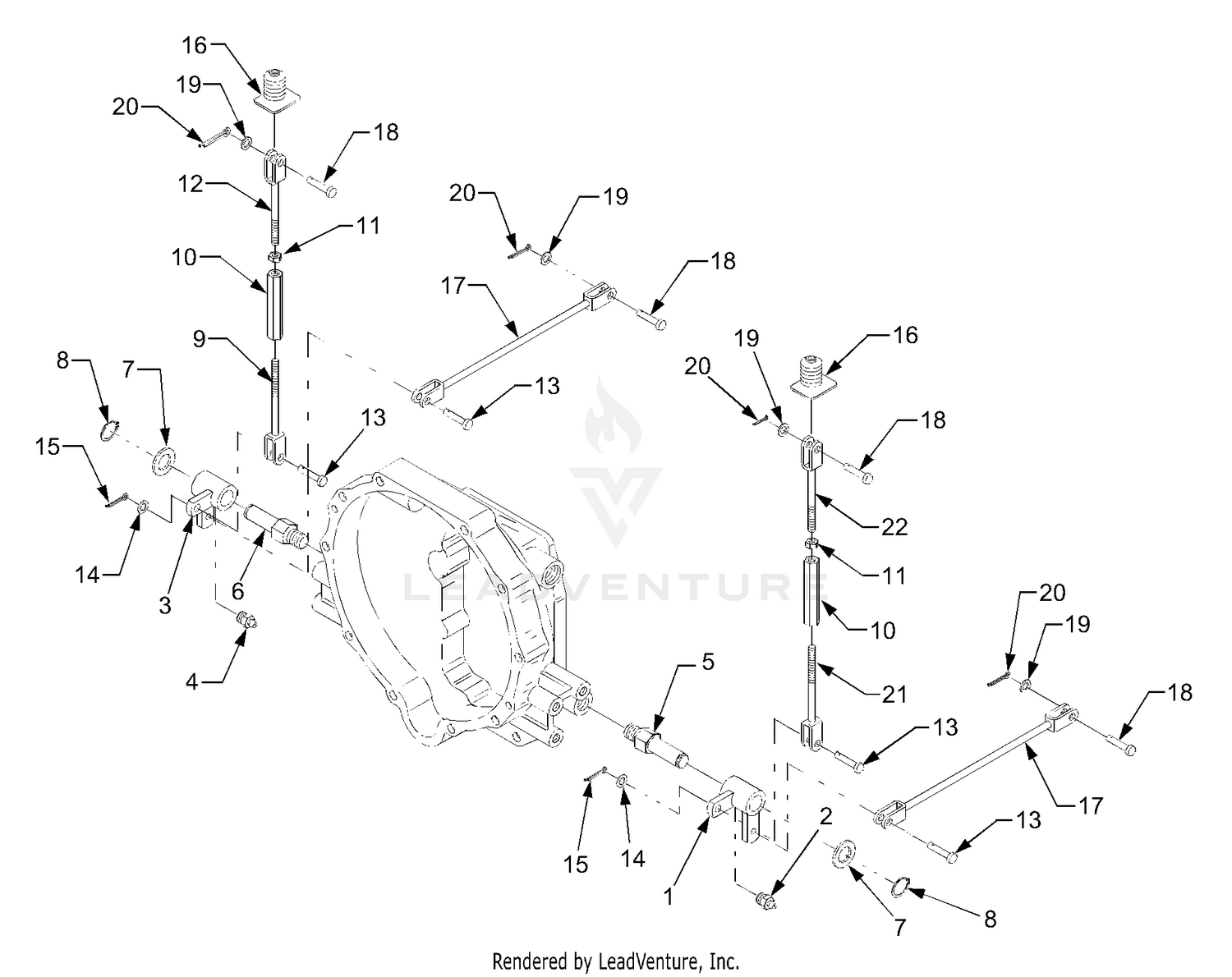

Brake Rod Group
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 71673 | PLUNGER CAP T Price: Call Us |
| 1 | 76-4240-03 | DISCONTINUED Price: Call Us |
| 1 | DD-T4620-55783 | ARM-BRAKE (LH) Not Available Price: |
| 2 | 3274-87 | SCREW-HSFH Price: $1.09 |
| 2 | DD-06611-15675 | GREASE FITTING Not Available Price: |
| 3 | 74-3640 | DISC-MIDDLE Price: $195.30 |
| 3 | DD-T4620-55793 | ARM-BRAKE (RH) Not Available Price: |
| 4 | 106-1021 | DISC-ACTUATING This part replaces 74-3630. Price: $320.62 |
| 4 | 8883R | PEDAL COVER T Price: Call Us |
| 4 | DD-06611-15675 | GREASE FITTING Not Available Price: |
| 5 | 92-9714 | DISCONTINUED Price: Call Us |
| 5 | DD-T4620-55801 | BRAKE SHAFT ARM Not Available Price: |
| 6 | 3234-30 | SCREW-HHF Price: $0.41 |
| 6 | 76020312 | SUB= 3145 Price: Call Us |
| 6 | DD-T4620-55811 | BRAKE SHAFT ARM Not Available Price: |
| 7 | 19131016 | WASHER Price: Call Us |
| 7 | 325-4 | SCREW-HH Price: $0.95 |
| 7 | DD-04011-50200 | FLAT WASHER Not Available Price: |
| 8 | 17490508 | SCREW LT Price: Call Us |
| 8 | 76-8300-03 | COVER-HOUSING, AXLE Price: $14.53 |
| 8 | DD-04612-50200 | SNAP RING Not Available Price: |
| 9 | 32128-50 | NUT-FLANGE Price: $1.78 |
| 9 | 76020412 | COTTER PIN Price: Call Us |
| 9 | DD-T4620-55753 | BRAKE ROD CLEVIS R Not Available Price: |
| 10 | 19131316 | WASHER Price: Call Us |
| 10 | 86-5430-03 | DISCONTINUED Price: Call Us |
| 10 | DD-55311-31561 | TURNBUCKLE Not Available Price: |
| 11 | 325-15 | SCREW-HH Price: $3.19 |
| 11 | DD-02118-50100 | HEX NUT Not Available Price: |
| 12 | 129567 | SUB= 139933 Price: Call Us |
| 12 | 92-9704-03 | HOUSING-AXLE Price: $1,379.19 |
| 12 | DD-T4620-55762 | BRAKE ROD CLEVIS R Not Available Price: |
| 13 | 84-1590 | U-BOLT, FRONT AXLE Price: $23.41 |
| 13 | DD-05122-51028 | CLEVIS PIN Not Available Price: |
| 14 | DD-04013-50100 | FLAT WASHER Not Available Price: |
| 15 | 123641X | BRAKE PIVOT ARM Price: Call Us |
| 15 | 84-1620-03 | PLATE-SUPPORT, AXLE Price: $19.85 |
| 15 | DD-05511-50318 | COTTER PIN Not Available Price: |
| 16 | 19251816 | WASHER T Price: Call Us |
| 16 | 23-7270 | NUT-LUG Price: $10.37 |
| 16 | DD-T4620-55821 | BOOT-BRAKE LINKAGE Not Available Price: |
| 17 | 12000034 | KLIP RING Price: Call Us |
| 17 | DD-T4620-55772 | BRAKE ROD CAM LEVE Not Available Price: |
| 18 | 131460 | SUB= 532131460 Price: Call Us |
| 18 | DD-05122-50828 | CLEVIS PIN Not Available Price: |
| 19 | 73350600 | NUT Price: Call Us |
| 19 | DD-04012-50080 | FLAT WASHER Not Available Price: |
| 20 | 73680600 | SUB= 73690600 Price: Call Us |
| 20 | DD-05511-50218 | COTTER PIN Not Available Price: |
| 21 | 106888X | SPRING ROD LT Price: Call Us |
| 21 | DD-T4620-55662 | BRAKE ROD CLEVIS L Not Available Price: |
| 22 | 127378 | SUB= 144585 Price: Call Us |
| 23 | 19132012 | WASHER Price: Call Us |
| 24 | 4921H | SPRING.RETAINER Price: Call Us |
| 25 | 73930600 | LOCKNUT Price: Call Us |
| 27 | 127358 | SUB= 140776 Price: Call Us |
| 28 | 72110506 | SUB= 72270506 Price: Call Us |
