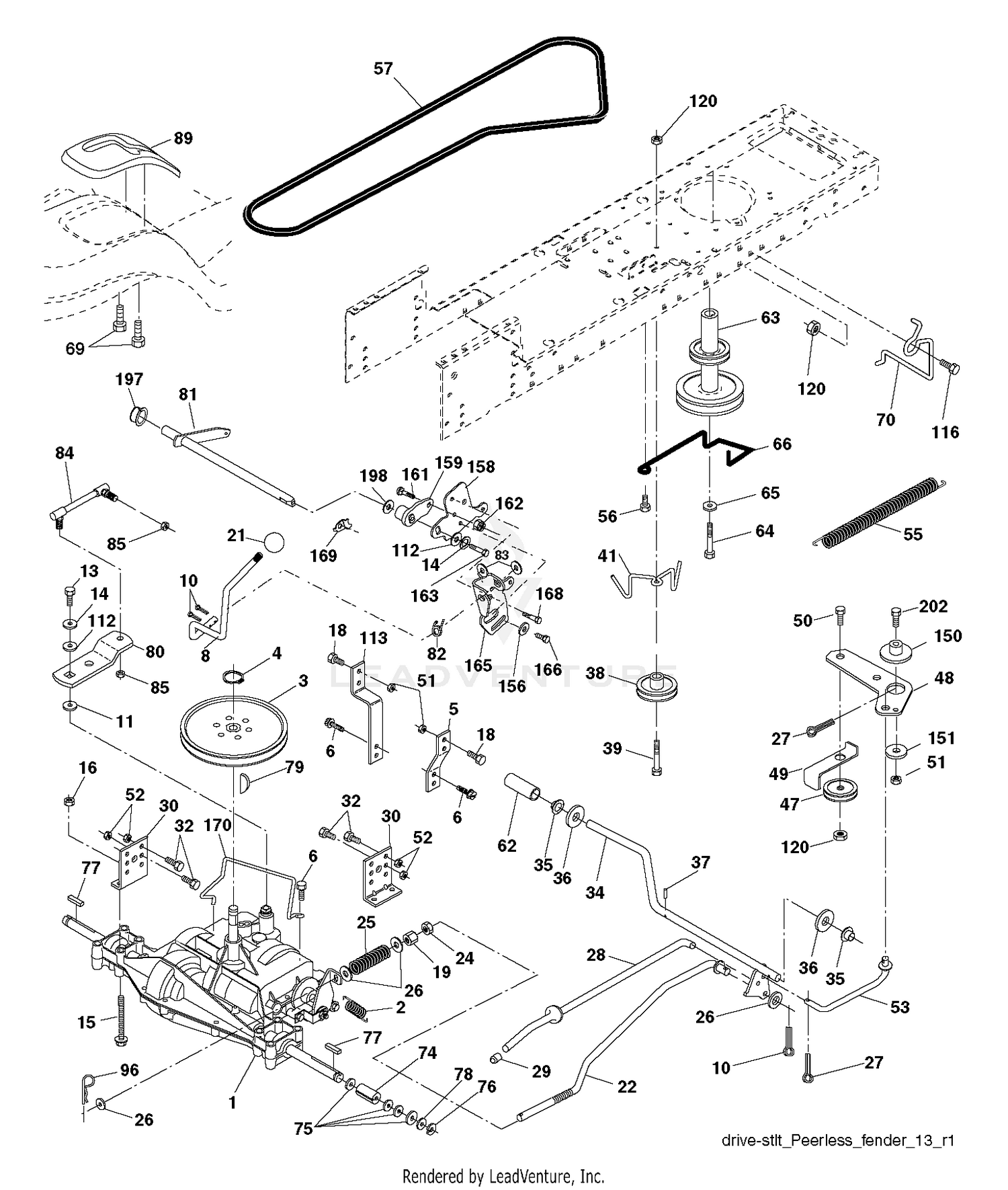

| Ref | Part Number | Description |
|---|
| 1 |
631187 |
SHAFT & LEV Price: Call Us |
| 1 |
98-0152 |
KNOB-TAPERED Price: $16.00 |
| 2 |
108-8485 |
DECAL-LIFT, FRONT Price: $29.62 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $4.99 |
| 2 |
631066 |
RET SPRING Price: Call Us |
| 3 |
108-7908-03 |
PANEL-CONTROL Price: $20.47 |
| 3 |
532123666 |
PULLEY TRANS Price: $22.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
108-7944 |
FRONT LEVER ASM Price: $67.32 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 4 |
812000028 |
RETAINING RING LT Price: $4.99 |
| 5 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 5 |
532121520 |
STRAP TORQUE Price: $3.99 |
| 5 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 6 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 6 |
630766 |
SPRING Price: $1.25 |
| 6 |
98-8159 |
PIVOT Price: $46.64 |
| 7 |
3290-360 |
SCREW-HH Price: $4.34 |
| 8 |
2710-20 |
LINK-OFFSET Price: $10.06 |
| 8 |
585139901 |
ROD.SHIFT.LT/CRD X431 This part replaces 532192706. Price: $7.99 |
| 8 |
631319 |
SPRING Price: Call Us |
| 9 |
88-8480 |
BRACKET-PIVOT Price: $17.24 |
| 10 |
108-8453 |
HOSE ASM Price: $178.68 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 10 |
876020416 |
PIN COTTER Price: $3.99 |
| 11 |
108-8454 |
HOSE ASM Price: $189.24 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 11A |
631192 |
SPRING Price: Call Us |
| 12 |
630739 |
WASHER Price: $1.25 |
| 12A |
631191 |
WASHER Price: $1.20 |
| 13 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 13 |
630740 |
O RING Price: $1.49 |
| 13 |
871040412 |
BOLT LT This part replaces 874550412. Price: $3.99 |
| 13A |
631190 |
O RING Price: Call Us |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 14 |
631189 |
ADJ SCREW Price: Call Us |
| 14 |
810040400 |
LOCKWASHER Price: $3.99 |
| 15 |
108-8449 |
HOSE ASM Price: $120.90 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 15 |
874490540 |
BOLT Price: $2.99 |
| 16 |
108-7941 |
PLATE-GUIDE, LEVER Price: $17.50 |
| 16 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 18 |
874780616 |
BOLT Price: $3.99 |
| 19 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 19 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 20 |
108-6857 |
PLATE-VALVE Price: $11.33 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
108-8447 |
TUBE ASM Price: $64.72 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
110-3328 |
WIRE ASM Price: $103.58 |
| 22 |
532130804 |
ROD BRAKE Price: $17.99 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 23A |
32185 |
COVER Price: $7.47 |
| 24 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
114-0626 |
HYD CYLINDER ASM Price: $422.82 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 25 |
631201 |
CHECK VALVE Price: $15.40 |
| 26 |
110-8189 |
PIN-PLAIN Price: $14.99 |
| 26A |
632164 |
FUEL FITTING This part replaces 631803. Price: $5.95 |
| 27 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 27 |
876020412 |
COTTER PIN Price: $3.99 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $3.99 |
| 29 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 29 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 29 |
630955 |
RETAINER--NLA Price: Call Us |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 30 |
532169592 |
BRKT, TRNSXLE MNT 20" Price: $3.99 |
| 30 |
650545 |
SCREW Price: $1.20 |
| 31 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 32 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 34 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 35 |
631307 |
PLATE Price: Call Us |
| 36 |
631308 |
SPACER Price: Call Us |
| 36 |
819211616 |
WASHER LT Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 37 |
631309 |
RET SPRING Price: Call Us |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 38 |
650644 |
SCREW Price: $1.33 |
| 39 |
872110622 |
BOLT Price: $0.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $5.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $4.99 |
| 49 |
532123205 |
RETAIN BELT Price: $3.99 |
| 50 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 51 |
873680600 |
LOCKNUT Price: $1.99 |
| 52 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 Price: $27.99 |
| 62 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 63 |
532175410 |
ENGINE PULLEY Price: $54.99 |
| 64 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
KEEPER BELT ENGINE Price: $8.99 |
| 69 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 70 |
532134683 |
KEEPER BELT ENG Price: $5.99 |
| 74 |
532137057 |
SPACER AXLE Price: $3.99 |
| 75 |
532121749 |
WASHER Price: $1.99 |
| 76 |
812000001 |
E-RING LT Price: $2.99 |
| 77 |
532123583 |
SQUARE KEY Price: $2.99 |
| 78 |
532121748 |
WASHER Price: $1.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $3.99 |
| 80 |
532145090 |
ARM SHIFT Price: $2.99 |
| 81 |
532165592 |
SHAFT ASM CROSS TAPERED PMST/2 Price: $27.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532166231 |
LINK.TRANSAXLE.PMST/DANA.20" Price: $39.99 |
| 85 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 89 |
532194971 |
CONSOLE SHIFT STLT Price: $11.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 112 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 113 |
532127285 |
STRAP TORQUE LH LT Price: $3.99 |
| 116 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 163 |
874780416 |
BOLT Price: $3.99 |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER Price: $4.99 |
| 166 |
817490510 |
SCREW Price: $2.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $3.99 |
| 170 |
532187414 |
KEEPER BELT T/A Price: $8.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $3.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $4.99 |
